甜瓜种子中黄瓜花叶病毒和小西葫芦黄花叶病毒的RT-LAMP可视化检测方法

doi:10.11924/j.issn.1000-6850.casb20190800499

中国农学通报 ›› 2020, Vol. 36 ›› Issue (20): 107-113.doi: 10.11924/j.issn.1000-6850.casb20190800499

所属专题：园艺

甜瓜种子中黄瓜花叶病毒和小西葫芦黄花叶病毒的RT-LAMP可视化检测方法

袁英哲¹, 罗明¹^,², 韩剑¹^,²(), 潘亚南¹

¹新疆农业大学农学院,乌鲁木齐 830052
²新疆自治区高校农林有害生物监测与安全防控重点实验室,乌鲁木齐 830052

收稿日期:2019-08-04 修回日期:2020-04-23 出版日期:2020-07-15 发布日期:2020-07-20
通讯作者: 韩剑
作者简介:袁英哲,男,1994年出生,河南人,在读硕士,研究方向为植物病害病原学。通信地址：830052 新疆乌鲁木齐市沙依巴克区农大东路311号新疆农业大学农学院,E-mail：1540719097@qq.com。
基金资助:
农业部西北荒漠绿洲作物有害生物综合治理重点实验室开放基金课题“‘一年双收’新种植模式下新疆甜瓜病毒病毒原鉴定、分子变异及主要传播源研究”(KFJJ20150103);国家级大学生创新项目“新疆甜瓜病毒病主要病原病毒环介导等温扩增快速检测技术研究”(201610758059)

Development of a Reverse Transcription Loop-mediated Isothermal Amplification Assay for Visual Detection of Cucumber Mosaic Virus and Zucchini Yellow Mosaic Virus in Melon Seeds

Yuan Yingzhe¹, Luo Ming¹^,², Han Jian¹^,²(), Pan Yanan¹

¹College of Agriculture, Xinjiang Agricultural University, Urumqi 830052
²Key Laboratory of Prevention and Control for Pest Monitoring and Security of Autonomous Universities in Xinjiang, Urumqi 830052

Received:2019-08-04 Revised:2020-04-23 Online:2020-07-15 Published:2020-07-20
Contact: Han Jian

摘要/Abstract

摘要：

本研究旨在针对甜瓜种子中携带的黄瓜花叶病毒(CMV)和小西葫芦黄花叶病毒(ZYMV),建立可视化环介导等温扩增检测方法。根据CMV和ZYMV外壳蛋白(CP)基因的保守序列,分别设计并筛选出2套特异性环介导等温扩增(LAMP)引物,通过对反应体系中主要影响因素的优化,建立适用于快速检测CMV和ZYMV的RT-LAMP检测方法。对优化后的2种LAMP检测方法进行特异性和灵敏度验证。结果表明,建立的2种LAMP检测方法分别能够特异性地检测出CMV和ZYMV,检测灵敏度较常规RT-PCR分别高出10倍和100倍,并且可通过肉眼观察直接对反应结果进行判定。该方法的建立为基层及现场快速检测甜瓜种子的带毒情况提供了新方法。

关键词: 甜瓜种子, 黄瓜花叶病毒, 小西葫芦黄花叶病毒, 反转录环介导等温扩增, 可视化检测

Abstract:

The paper aims to develop a reverse transcription loop-mediated isothermal amplification (RT-LAMP) assay for rapid and visual detection of cucumber mosaic virus (CMV) and zucchini yellow mosaic virus (ZYMV) in melon seeds. Two sets of LAMP primers were designed according to the coat protein (CP) gene of CMV and ZYMV. Based on the optimization of reaction conditions, RT-LAMP detection method was developed and verified for specificity and sensitivity. It is suggested that the 2 kinds of LAMP method have specific amplification action respectively for CMV or ZYMV. The sensitivity for the detection of CMV and ZYMV is 10 and 100 times higher than that of the conventional PCR method. The detection result could be judged by visual color change without requiring complex equipment. The method is suitable for detection in field condition and could provide a novel rapid detection approach for CMV and ZYMV in melon seeds.

Key words: melon seeds, cucumber mosaic virus (CMV), zucchini yellow mosaic virus (ZYMV), reverse transcription loop-mediated isothermal amplification (RT-LAMP), visual detection

中图分类号:

S436.629

袁英哲, 罗明, 韩剑, 潘亚南. 甜瓜种子中黄瓜花叶病毒和小西葫芦黄花叶病毒的RT-LAMP可视化检测方法[J]. 中国农学通报, 2020, 36(20): 107-113.

Yuan Yingzhe, Luo Ming, Han Jian, Pan Yanan. Development of a Reverse Transcription Loop-mediated Isothermal Amplification Assay for Visual Detection of Cucumber Mosaic Virus and Zucchini Yellow Mosaic Virus in Melon Seeds[J]. Chinese Agricultural Science Bulletin, 2020, 36(20): 107-113.

图/表 6

名称	序列(5′→3′)
CMV-F3	TCTACCGTGTGGGTGACA
CMV-B3	GAGCACGGCGTACTTTCG
CMV-FIP	CCGTCCGCGAACATAGCAGAGTTTTGTCCGTAAAGTTCCTGCCTC
CMV-BIP	GCTGCATCTGGAGTCCAAGCCTTTTTGTCGCCAATATCAGCGC
ZYMV-F3	CTCCGGCTCAGGTGAGAA
ZYMV-B3	ATGAGACGCTCGTGTGTTG
ZYMV-FIP	GACGCGGCACAATTTTCCCATTTTTGCAGCTGTCACGAAGGAC
ZYMV-BIP	ATGTCACTGCCACGCGTGAATTTTCGGCTTATACTCCAGCAAGT

表1. LAMP引物序列

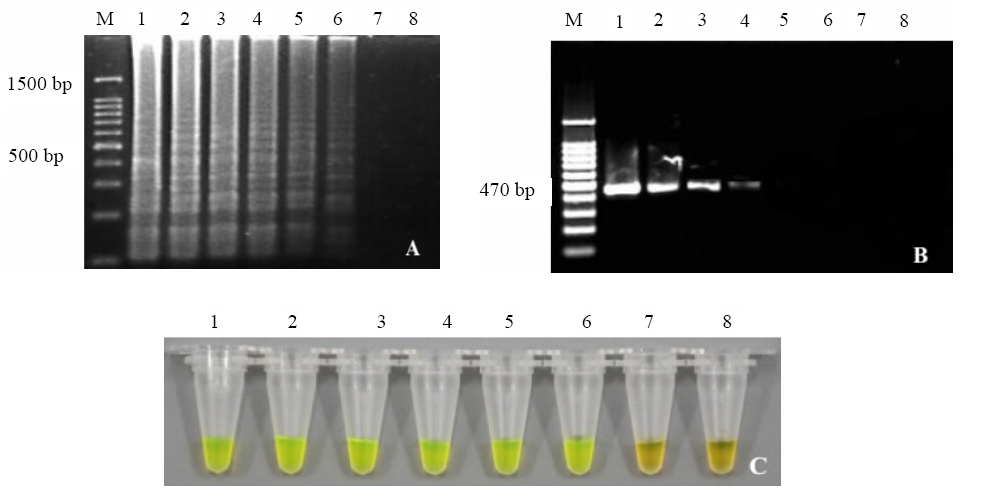

图1. RT-LAMP和RT-PCR检测CMV灵敏度对比试验 A为LAMP产物琼脂糖凝胶电泳检测,B为RT-PCR检测,C为LAMP可视化检测,M为100 bp Ladder,1~8分别为1×101~1×108倍cDNA稀释浓度

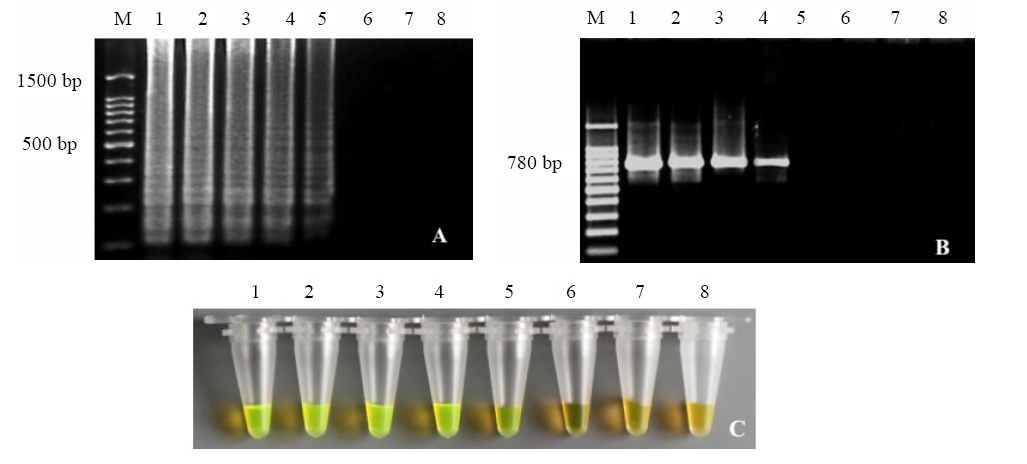

图2. RT-LAMP和RT-PCR检测ZYMV灵敏度对比试验 A为LAMP产物琼脂糖凝胶电泳检测,B为RT-PCR检测,C为LAMP可视化检测,M为100 bp Ladder,1~8分别为1×101~1×108倍cDNA稀释浓度

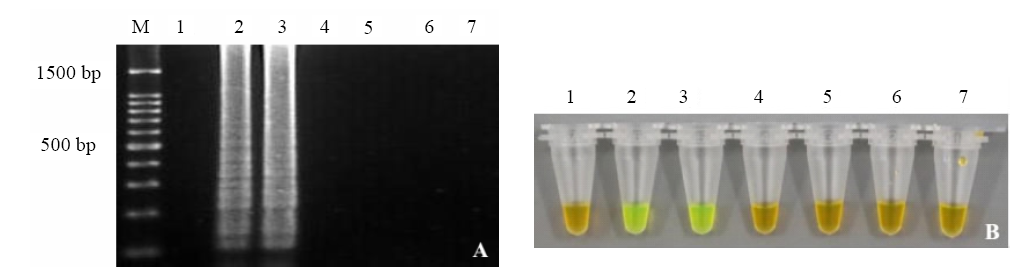

图3. CMV-LAMP特异性的琼脂糖凝胶电泳与可视化检测结果 A为琼脂糖凝胶电泳检测,B为可视化检测,M为100bp Ladder,1为健康种子,2~3为CMV,4为WMV,5为SqMV,6为MNSV,7为ZYMV

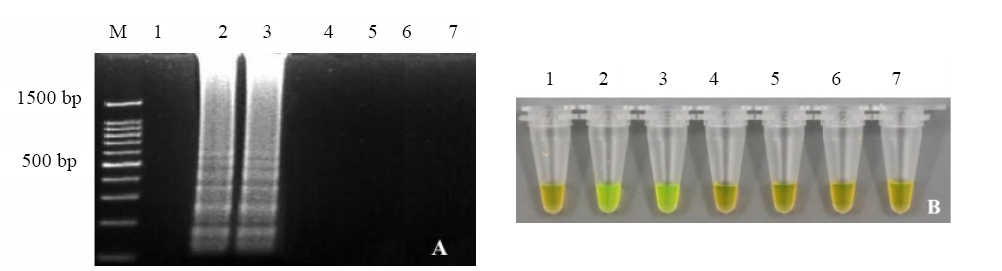

图4. ZYMV-LAMP特异性的琼脂糖凝胶电泳与可视化检测结果 A为琼脂糖凝胶电泳检测,B为可视化检测,M为100 bp Ladder,1为健康种子,2~3为ZYMV,4为WMV-2,5为SqMV,6为MNSV,7为CMV

品种	检测数/粒	CMV检出率/%		ZYMV检出率/%
品种	检测数/粒	RT-LAMP	RT-PCR	RT-LAMP	RT-PCR
优密17号	10	20	20	80	70
春潇2号	10	20	10	70	70
欣丰密	10	0	0	40	30
楼兰17号	10	0	0	70	50

表2. 甜瓜种子带毒的检测结果

参考文献 26

[1]	李继洋, 杨渡, 韩盛, 等. 基于多重RT-PCR技术检测新疆甜瓜主栽区3种病毒病及其分布[J]. 西北农业学报, 2015,24(8):123-130.
[2]	韩盛, 韩成贵, 玉山江·麦麦提, 等. 新疆吐鲁番地区三种甜瓜病毒病的发生与分子鉴定[J]. 新疆农业科学, 2016,53(10):1829-1842.
[3]	潘亚南, 韩剑, 吴海波, 等. 新疆哈密瓜病毒的DAS-ELISA检测和分子鉴定[J]. 园艺学报, 2016,43(6):1107-1116. doi: 10.16420/j.issn.0513-353x.2016-0144 URL
[4]	潘亚楠. 新疆甜瓜病毒病病原鉴定及病毒分子变异和主要侵染源分析[D]. 乌鲁木齐:新疆农业大学, 2016.
[5]	林石明, 廖富荣, 陈青, 等. 葫芦科作物种传病毒及其检疫重要性[J]. 植物检疫, 2012,26(1):52-61.
[6]	张强, 罗明, 李克梅, 等. 几种新疆加工型辣椒种子病毒的检测和鉴定[J]. 西南农业学报, 2014,27(6):2385-2392.
[7]	彭斌, 汪丽刚, 古勤生. 甜瓜种子中种传病毒的RT-PCR检测[J]. 中国瓜菜, 2015(6):10-15.
[8]	易汪雪, 陈舜胜, 杨翠云, 等. 单管实时荧光RT-PCR方法同时检测大豆种子中的菜豆荚斑驳病毒和烟草环斑病毒[J]. 植物病理学报, 2011,41(1):85-92.
[9]	Notomi T, Okayama H, Masubuchi H, et al. Loop-mediated isothermal amplification of DNA[J]. Nucleic Acids Research, 2000,28(12):E63. doi: 10.1093/nar/28.12.e63 URL pmid: 10871386
[10]	秦文韬, 王忠跃, 张昊. 环介导恒温扩增技术(LAMP)及其在植物病毒检测中的研究进展[J]. 中国农学通报, 2013,29(21):170-174.
[11]	Fukuta S, Iida T, Mizukami Y, et al. Detection of Japanese yam mosaic virus by RT-LAMP[J]. Archives of virology, 2003,148:1713-1720. doi: 10.1007/s00705-003-0134-5 URL pmid: 14505084
[12]	Fukuta S, Kato S, Yoshida K, et al. Detection of tomato yellow leaf curl virus by loop-mediated isothermal amplification reaction[J]. Journal of virological methods, 2003,112:35-40. doi: 10.1016/s0166-0934(03)00187-3 URL pmid: 12951210
[13]	Zhao L, Liu Y, Wu Y, et al. Rapid Detection of Watermelon Viruses by Reverse Transcription Loop-Mediated Isothermal Amplification[J]. Journal of Phytopathology, 2016,164(5):330-336. doi: 10.1111/jph.2016.164.issue-5 URL
[14]	李战彪, 谢慧婷, 崔丽贤, 等. 甜瓜黄斑病毒(MYSV)RT-LAMP快速检测方法的建立[J]. 园艺学报, 2017,44(5):1005-1010.
[15]	Johansen E, And M C E, Hampton R O. Seed Transmission of Viruses: Current Perspectives[J]. Annual Review of Phytopathology, 1994,32(1):363-386. doi: 10.1146/annurev.py.32.090194.002051 URL
[16]	赵雪君, 邓永杰, 魏周玲, 等. 蔬菜中黄瓜花叶病毒的RT-LAMP快速检测[J]. 园艺学报, 2016,43(6):1203-1210. doi: 10.16420/j.issn.0513-353x.2016-0006 URL
[17]	徐平东, 周仲驹, 林奇英, 等. 黄瓜花叶病毒亚组Ⅰ和Ⅱ分离物外壳蛋白基因的序列分析与比较[J]. 病毒学报, 1999(2):164-171.
[18]	Glasa M, Svoboda J, Nováková S. Analysis of the molecular and biological variability of zucchini yellow mosaic virus isolates from Slovakia and Czech Republic[J]. Virus Genes, 2007,35(2):415-421. doi: 10.1007/s11262-007-0101-4 URL pmid: 17497214
[19]	Roossinck M J. Evolutionary history of cucumber mosaic virus deduced by phylogenetic analyses[J]. Journal of Virology, 2002,76(7):3382-3387. doi: 10.1128/jvi.76.7.3382-3387.2002 URL pmid: 11884564
[20]	Palukaitis P, Fernando G A. Cucumoviruses[J]. Advances in Virus Research, 2003,62(4):241-323.
[21]	Wang Y, Gaba V, Yang J, et al. Characterization of synergy between cucumber mosaic virus and potyviruses in cucurbit Hosts[J]. Phytopathology, 2002,92(1):51-58. doi: 10.1094/PHYTO.2002.92.1.51 URL pmid: 18944139
[22]	Chen Y, Chen J, Zhang H, et al. Molecular evidence and sequence analysis of a natural reassortant between Cucumber mosaic virussubgroup IA and II strains[J]. Virus Genes, 2007,35(2):405-413. doi: 10.1007/s11262-007-0094-z URL pmid: 17417698
[23]	Roossinck MJ, Zhang L, Hellwald KH. Rearrangements in the 5’ nontranslated region and phylogenetic analysis of cucumber mosaic virus RNA 3 indicate radial evolution of three subgroups[J]. Journal of Virology, 1999,73:6752-6758. URL pmid: 10400773
[24]	Desbiez C, Wipfscheibel C, Lecoq H. Biological and serological variability, evolution and molecular epidemiology of zucchini yellow mosaic virus (ZYMV, Potyvirus) with special reference to Caribbean islands[J]. Virus Research, 2002,85(1):5-16. URL pmid: 11955634
[25]	Romay G, Lecoq H, Geraud-Pouey F, et al. Current status of cucurbit viruses in Venezuela and characterization of Venezuelan isolates of Zucchini yellow mosaic virus[J]. Plant Pathology, 2014,63(1):78-87. doi: 10.1111/ppa.12072 URL
[26]	王东. 新疆哈密瓜病毒的种类组成及地理变异研究[D]. 乌鲁木齐:新疆大学, 2017.
