降雨入渗对宁南山区黄土梯田边坡稳定性的影响

doi:10.11924/j.issn.1000-6850.casb20190800551

中国农学通报 ›› 2020, Vol. 36 ›› Issue (27): 88-98.doi: 10.11924/j.issn.1000-6850.casb20190800551

所属专题：农业气象

• 资源·环境·生态·土壤·气象 • 上一篇下一篇

降雨入渗对宁南山区黄土梯田边坡稳定性的影响

刘佳丽(), 田佳(), 梁志奇, 张志敏, 杨泽康, 马建文, 赵岩

宁夏大学农学院,银川 750021

收稿日期:2019-08-18 修回日期:2019-12-03 出版日期:2020-09-25 发布日期:2020-09-23
通讯作者: 田佳
作者简介:刘佳丽,女,1997年出生,宁夏银川人,在读硕士,研究方向:水土保持。通信地址:750021 宁夏银川市西夏区贺兰山西路贺兰山校区,Tel:0951-2061874,E-mail: 936606393@qq.com。
基金资助:
2018年大学生创新创业训练计划项目“宁南山区坡改梯工程对黄土边坡稳定性的影响”(2018107490044);2019年大学生创新创业训练计划项目“降雨入渗下的宁南山区黄土梯田稳定性及其优化设计研究”(2019107490009)

Rainfall Infiltration: Effects on Slope Stability of Loess Terraces in Mountainous Area of Southern Ningxia

Liu Jiali(), Tian Jia(), Liang Zhiqi, Zhang Zhimin, Yang Zekang, Ma Jianwen, Zhao Yan

School of Agriculture, Ningxia University, Yinchuan 750021

Received:2019-08-18 Revised:2019-12-03 Online:2020-09-25 Published:2020-09-23
Contact: Tian Jia

摘要/Abstract

摘要：

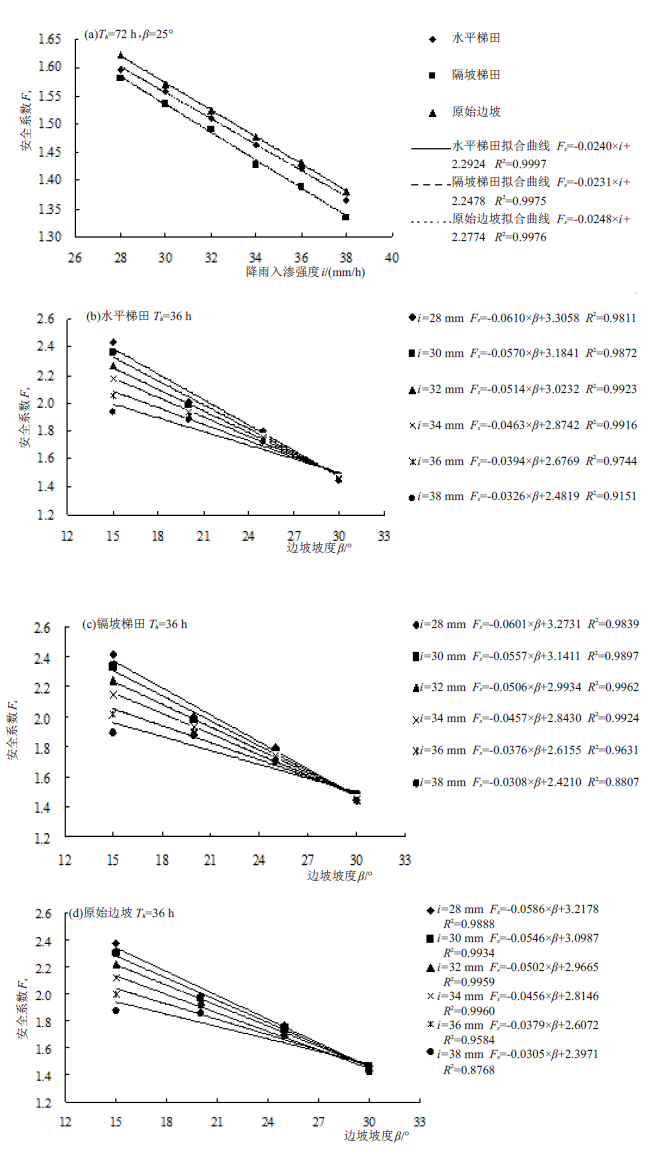

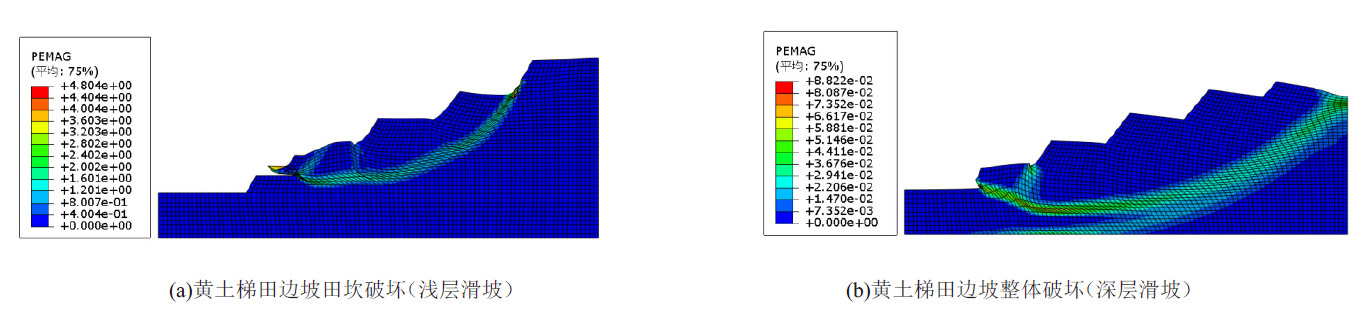

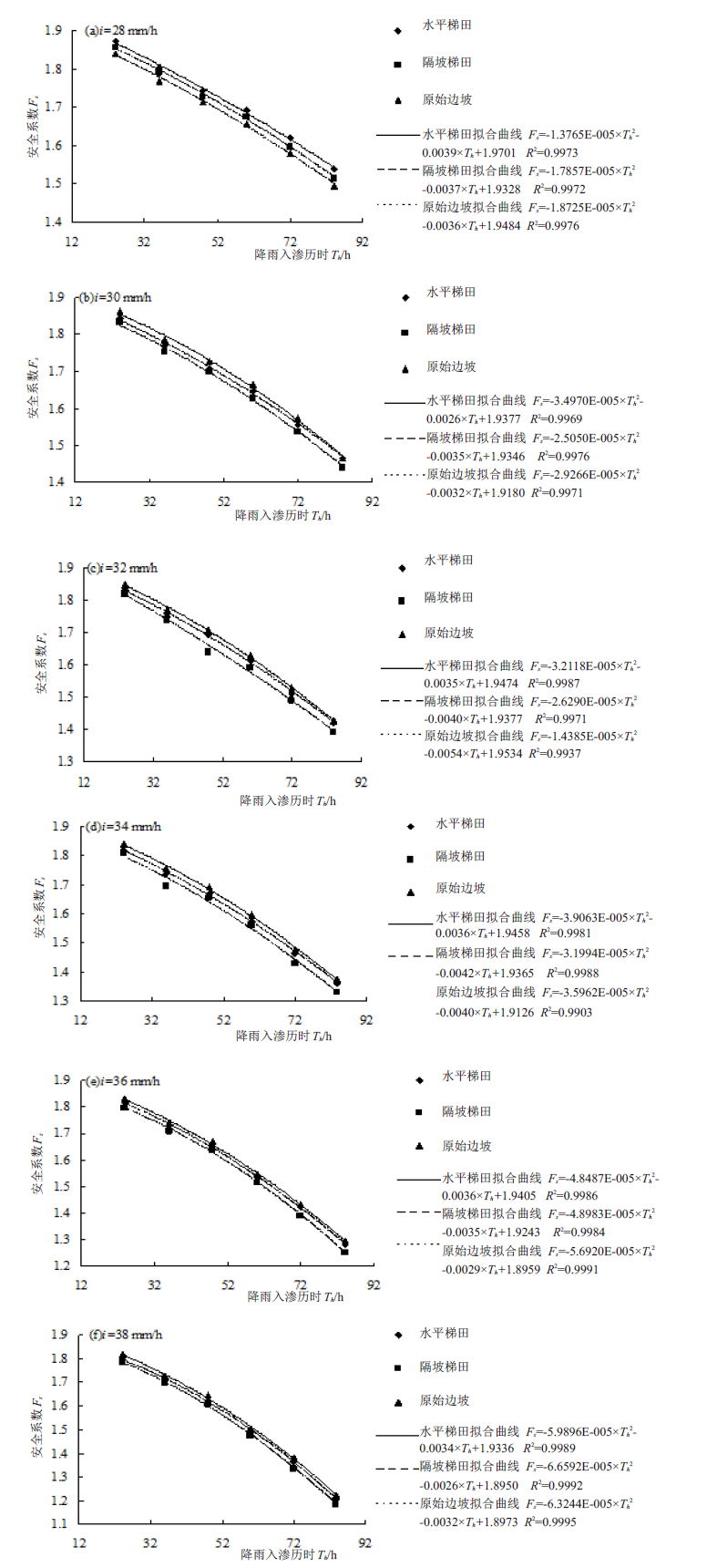

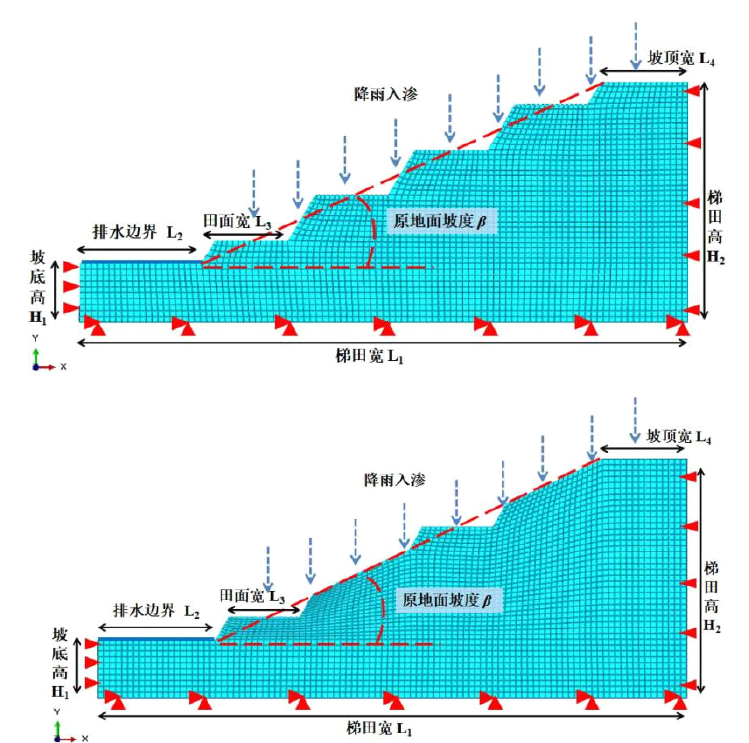

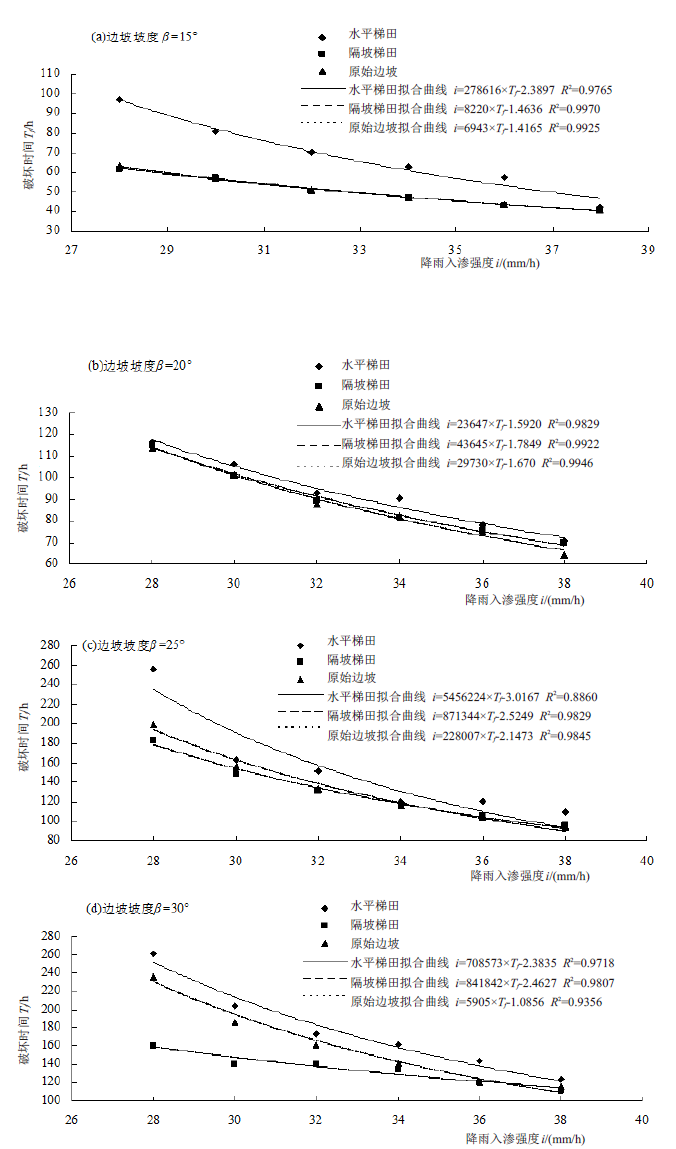

为了研究降雨入渗对宁南山区黄土梯田边坡稳定性的影响。采用ABAQUS软件建立降雨入渗下的宁南山区黄土梯田边坡稳定性有限元模型,研究了水平梯田、隔坡梯田、原始边坡（对照）3种边坡类型,在降雨入渗强度(28~38 mm/h)和边坡坡度(15°—30°)下的破坏时间和安全系数的变化规律。结果表明:降雨入渗下,黄土梯田边坡的破坏时间随降雨入渗强度的增大而减小,且呈幂函数关系,水平梯田的破坏时间显著高于隔坡梯田和原始边坡;安全系数也随降雨入渗强度的增大而减小,但呈线性关系,水平梯田的安全系数与隔坡梯田和原始边坡并无显著差异。降雨条件下,修筑梯田能增加浅层梯田边坡的稳定性,而对于深层梯田边坡的稳定性影响不大。

关键词: 降雨入渗, 黄土梯田, 边坡稳定, 有限元, 宁南山区

Abstract:

The paper aims to study the effects of rainfall infiltration on the slope stability of loess terraces in mountainous area of southern Ningxia. We established a finite element model for the stability analysis by using the software ABAQUS, and studied the variation of failure time and safety factors of 3 different types of terraced slopes: the level terrace, alternate terrace and original slope (control) under different rainfall infiltration intensities (28-38 mm/h) and the slope gradient (15°-30°). The results showed that: the failure time of the terraced slope decreased with the increase of rainfall infiltration intensity and satisfied the power function relation; the failure time of the level terrace was significantly higher than that of the alternate terrace and original slope; the safety factors of the terraced slope decreased with the increase of the rainfall infiltration intensity too, but satisfied the linear function relation; the safety factors of the level terrace had no significant difference between the alternate terrace and original slope. Under the condition of rainfall, the construction of loess terraces can increase the stability of shallow terrace slope, but has little effect on the stability of deep terrace slope.

Key words: rainfall infiltration, loess terrace, slope stability, finite element, mountainous area of southern Ningxia

中图分类号:

S859.84

刘佳丽, 田佳, 梁志奇, 张志敏, 杨泽康, 马建文, 赵岩. 降雨入渗对宁南山区黄土梯田边坡稳定性的影响[J]. 中国农学通报, 2020, 36(27): 88-98.

Liu Jiali, Tian Jia, Liang Zhiqi, Zhang Zhimin, Yang Zekang, Ma Jianwen, Zhao Yan. Rainfall Infiltration: Effects on Slope Stability of Loess Terraces in Mountainous Area of Southern Ningxia[J]. Chinese Agricultural Science Bulletin, 2020, 36(27): 88-98.

图/表 11

参考文献 30

[1]	张福忠. 宁南山区黄土滑坡形成机理探讨[J]. 中国地质灾害与防治学报, 2011,22(3):11-15.
[2]	岳自慧, 眭克仁, 刘平, 等. 宁南山区坡改梯作物产量变化规律研究[J]. 中国水土保持, 2017,9(1):56-58.
[3]	蔡进军, 李生宝, 蒋齐, 等. 宁南黄土丘陵区典型水保工程措施对土壤入渗性能的影响[J]. 水土保持通报, 2010,30(1):22-26.
[4]	王百升, 倪万魁, 郭叶霞. 多种因素作用下非饱和黄土边坡稳定性分析[J]. 水利与建筑工程学报, 2017,15(5):159-162.
[5]	温永福, 高鹏, 穆兴民, 等. 黄土高原丘陵沟壑区梯田边坡侵蚀过程对雨强的响应[J]. 泥沙研究, 2017(42):46-51.
[6]	徐晗, 朱以文, 蔡元奇, 等. 降雨入渗条件下非饱和土边坡稳定分析[J]. 岩土力学, 2005,26(12):1957-1962.
[7]	王述红, 何坚, 杨天娇. 考虑降雨入渗的边坡稳定性数值分析[J]. 东北大学学报:自然科学版, 2018,39(08):1196-1200.
[8]	陈勇, 杨贝贝. 基于ABAQUS的非饱和边坡流-固耦合分析[J]. 地下空间与工程学报, 2016,12(4):938-945.
[9]	Yubonchit S, Chinkulkijniwat A, Horpibulsuk S, et al. Influence factors involving rainfall-induced shallow slope failure: numerical study[J]. International Journal of Geomechanics, 2016,98(1):387-403.
[10]	Chinkulkijniwat A, Yubonchit S, Horpibulsuk, S, et al. Hydrological responses and stability analysis of shallow slopes with cohesionless soil subjected to continuous rainfall[J]. Can. Geotech. J., 2016,53(12):2001-2013.
[11]	田佳, 及金楠, 钟琦, 等. 贺兰山云杉林根土复合体提高边坡稳定性分析[J]. 农业工程学报, 2017,33(20):144-152.
[12]	Lin Der Guey, Huang Bor Shun, Lin Shin-Hwei. 3-D numerical investigations into the shear strength of the soil-root system of Makino bamboo and its effect on slope stability[J]. Ecological Engineering, 2010,36(8):992-1006.
[13]	Chok Y H, Jaksa M B, Kaggwa W S, et al. Assessing the influence of root reinforcement on slope stability by finite elements[J]. Geo-Engineering, 2015,6(12):1-13.
[14]	费康, 彭劼. ABAQUS岩土工程实例详解[M]. 北京: 人民邮电出版社, 2017.
[15]	Kumar S S, Midha V K. Influence of slope angle and rainfall intensity on the runoff erosion control performance of woven geomesh[J]. Journal of Natural Fibers, 2017: 1-10.
[16]	易绍基. 基于ABAQUS的边坡稳定敏感性分析及模型验证[D]. 昆明:昆明理工大学, 2011.
[17]	李宁, 许建聪. 基于ABAQUS的边坡降雨入渗边界的开发及其验证[J]. 水资源与水工程学报, 2015(1):197-202.
[18]	Tang D, Li D Q, Cao Z J. Slope stability analysis in the Three Gorges Reservoir Area considering effect of antecedent rainfall[J]. Georisk: Assessment and Management of Risk for Engineered Systems and Geohazards, 2017,11(2):161-172.
[19]	Zhang J, Li J, Lin H. Models and influencing factors of the delay phenomenon for rainfall on slope stability[J]. European Journal of Environmental and Civil Engineering, 2018,22(1):122-136.
[20]	吴凯, 倪万魁, 武鹏. 宁夏隆德县坡面型泥石流形成机理分析[J]. 中国地质灾害与防治学报, 2016(1):49-54.
[21]	中华人民共和国水利部. 土工试验方法标准, GB/T 50123—1999[S].北京:中国计划出版社, 1999: 110-114.
[22]	田佳, 卞莹莹, 于江珊, 等. 贺兰山3种乔木单根及根土复合体力学特性比较[J]. 水土保持学报, 2018,32(6):123-129.
[23]	胡欣. 湿陷性黄土路基水分场及其变形特性数值分析[D]. 重庆:重庆交通大学, 2016.
[24]	Kokutse N K, Temgoua A G, Kavazovic Z, et al. Slope stability and vegetation: Conceptual and numerical investigation of mechanical effects[J]. Ecological Engineering, 2016,101(1):146-153.
[25]	温永福, 高鹏, 穆兴民, 等. 极端降雨作用下陕北梯田边坡稳定性分析[J]. 水土保持研究, 2018,25(4):365-369.
[27]	Leshchinsky B, Vahedifard F, Koo H B, et al. Yumokjeong Landslide: an investigation of progressive failure of a hillslope using the finite element method[J]. Landslides, 2015,12(5):997-1005.
[28]	Le T M H, Gallipoli D, Sanchez M, et al. Stability and failure mass of unsaturated heterogeneous slopes[J]. Canadian Geotechnical Journal, 2015: 1-15.
[29]	Cai F, Ugai K. Numerical analysis of rainfall effects on slope stability[J]. International Journal of Geomechanics, 2004,4(2):69-78.
[30]	Cho S E. Stability analysis of unsaturated soil slopes considering water-air flow caused by rainfall infiltration[J]. Engineering Geology, 2016,211(1):184-197.

土壤类型	小于该粒径的土质量百分数/%							d₁₀/mm	d₆₀/mm
黄土	<5 mm	<2 mm	<1 mm	<0.5 mm	<0.25 mm	<0.1 mm	<0.075 mm	d₁₀/mm	d₆₀/mm
黄土	100	91.71	78.22	44.72	31.33	22.15	18.03	0.02	0.74

土壤类型	小于该粒径的土质量百分数/%							d₁₀/mm	d₆₀/mm
黄土	<5 mm	<2 mm	<1 mm	<0.5 mm	<0.25 mm	<0.1 mm	<0.075 mm	d₁₀/mm	d₆₀/mm
黄土	100	91.71	78.22	44.72	31.33	22.15	18.03	0.02	0.74

变异来源（因素）	Ⅲ类平方和	自由度	均方	F 值	P 值	分布值X/%
边坡坡度	11.732	3	3.911	552.119	0.001^**	75.442
梯田边坡类型	0.446	2	0.223	31.448	0.001^**	2.867
降雨入渗强度	2.942	5	0.588	83.065	0.001^**	18.918
修正后总计	15.551	71

变异来源（因素）	Ⅲ类平方和	自由度	均方	F 值	P 值	分布值X/%
边坡坡度	11.732	3	3.911	552.119	0.001^**	75.442
梯田边坡类型	0.446	2	0.223	31.448	0.001^**	2.867
降雨入渗强度	2.942	5	0.588	83.065	0.001^**	18.918
修正后总计	15.551	71

梯田边坡类型	梯田边坡类型	平均值差值	标准误差	显著性	95%置信区间
梯田边坡类型	梯田边坡类型	平均值差值	标准误差	显著性	下限	上限
水平梯田	隔坡梯田	0.1421	0.0243	0.001^**	0.0935	0.1907
水平梯田	原始边坡	0.1838	0.0243	0.001^**	0.1352	0.2323
隔坡梯田	原始边坡	0.0417	0.0243	0.091	-0.0069	0.0902
隔坡梯田	水平梯田	-0.1421	0.0243	0.001^**	-0.1907	-0.0935
原始边坡	隔坡梯田	-0.0417	0.0243	0.091	-0.0902	0.0069
原始边坡	水平梯田	-0.1838	0.0243	0.001^**	-0.2323	-0.1352

降雨入渗对宁南山区黄土梯田边坡稳定性的影响

Rainfall Infiltration: Effects on Slope Stability of Loess Terraces in Mountainous Area of Southern Ningxia

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 11

参考文献 30

相关文章 4

编辑推荐

Metrics

本文评价

关于本刊

作者中心

审者中心

在线期刊

联系我们

变异来源	Ⅲ类平方和	自由度	均方	F 值	P 值	分布值X/%
边坡坡度	2.896	3	0.965	82.085	0.001^**	52.837
梯田边坡类型	0.008	2	0.004	0.319	0.727	0.146
降雨入渗强度	0.206	3	0.069	5.836	0.001^**	3.758
降雨入渗历时	0.808	2	0.404	34.346	0.001^**	14.742
修正后总计	5.481	143
