基于扩散型TTI与鲜银耳品质关联模型的建立及验证

doi:10.11924/j.issn.1000-6850.casb2020-0141

摘要/Abstract

摘要：

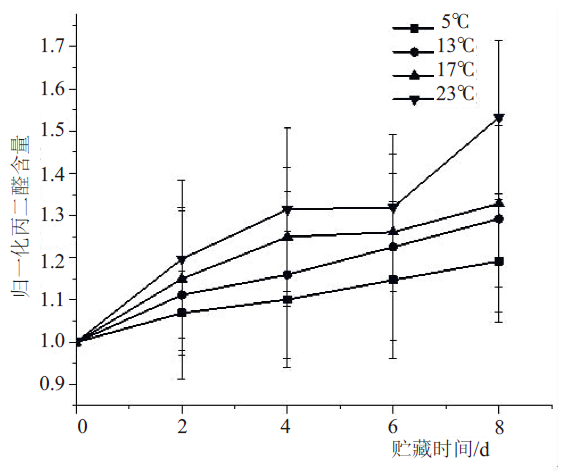

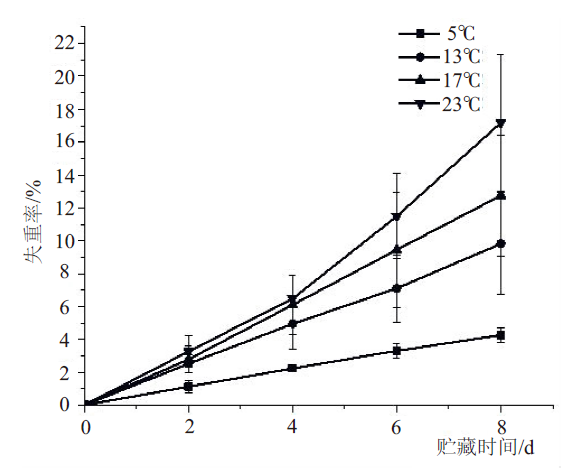

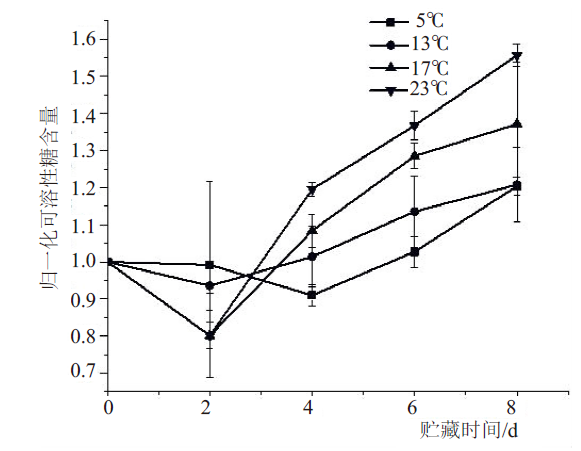

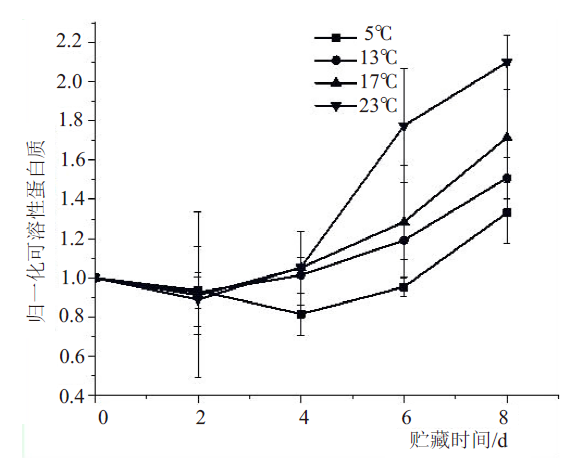

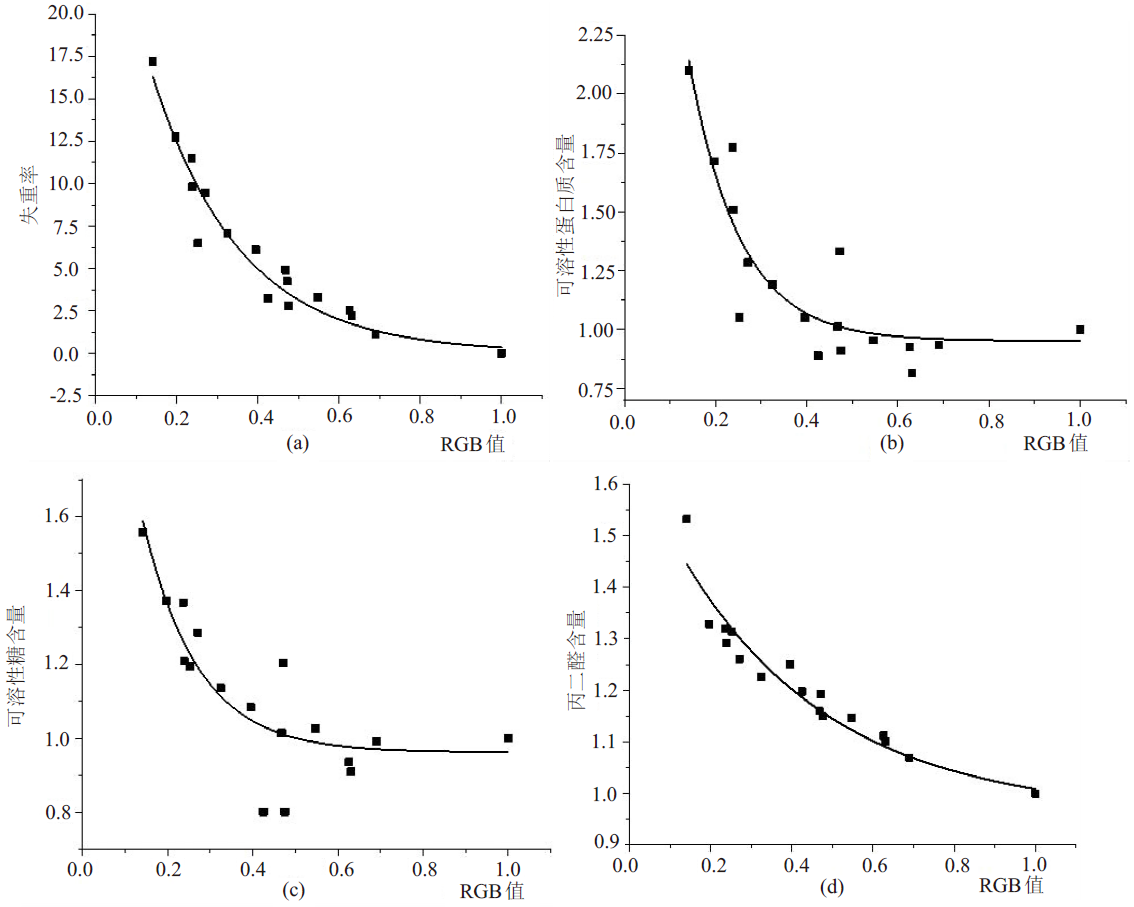

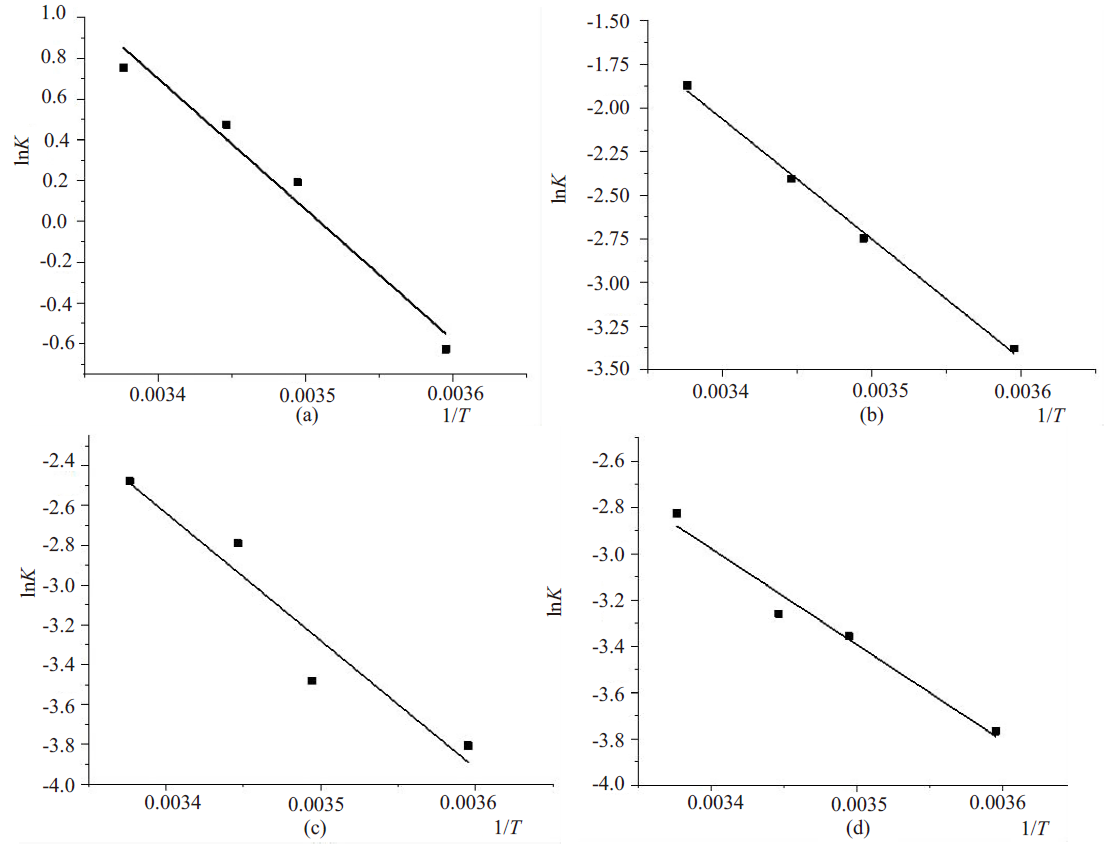

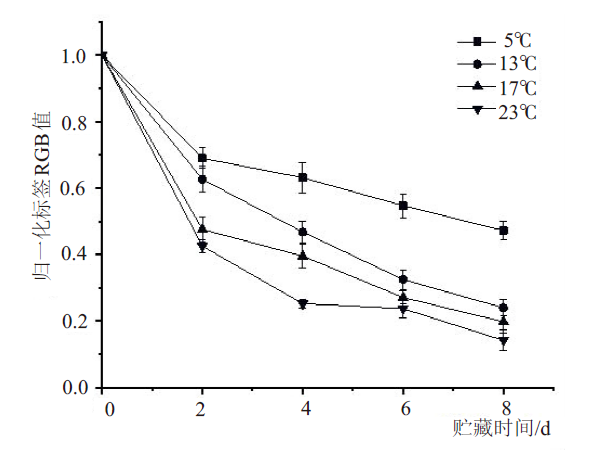

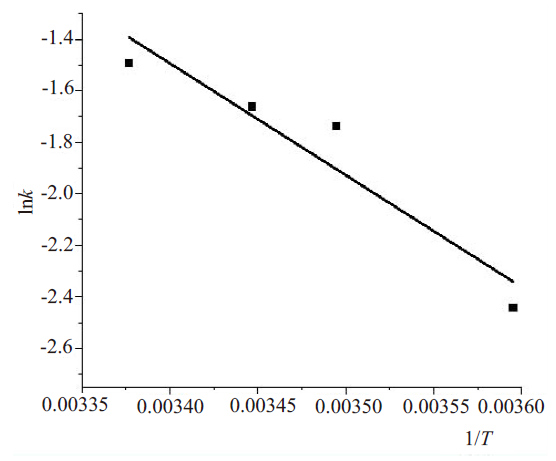

为了建立扩散型时间-温度指示器(Time-Temperature Indicator,TTI)与鲜银耳品质参数的关联模型,实现TTI对鲜银耳品质的监控,分别研究了4种贮藏温度（5℃、13℃、17℃和23℃）下,扩散型TTI的RGB值及鲜银耳品质参数（失重率、可溶性蛋白质含量、可溶性糖含量以及丙二醛含量）的变化情况,通过反应动力学模型及Arrhenius模型获得了扩散型TTI颜色变化和鲜银耳品质变化的活化能Ea,并建立了扩散型TTI的RGB值与鲜银耳品质参数的关联模型。研究结果表明,在贮藏过程中,随着贮藏时间的延长,TTI的RGB值均呈下降趋势,且贮藏温度越高,RGB值下降幅度越大,其颜色变化的活化能值为36.1135 KJ/mol;随着贮藏时间的延长及贮藏温度的升高,鲜银耳的品质发生了劣变,其品质参数均与扩散型TTI的活化能差值在25 KJ/mol之内;基于扩散型TTI颜色变化与鲜鲜银耳品质参数构建了二者之间的关联模型,经实验验证其相对误差均在15%之内,证明了扩散型TTI在银耳品质监控中的应用潜力。因此,有望将此扩散型TTI用于鲜银耳贮藏过程中的品质监控并实现对银耳品质的预测。

关键词: 时间温度指示器(TTI), 鲜银耳, 贮藏, 品质, 关联模型

Abstract:

The aims are to establish the correlation model between the diffused Time-temperature Indicator (TTI) and the quality parameters of fresh tremella, and to obtain TTI’s monitoring for fresh tremella quality. The color changes of diffused TTI and the quality parameters (the weight loss rate, contents of soluble protein, contents of soluble sugar and contents of malondialdehyde) of fresh tremella were studied during different storage temperatures (5, 13, 17 and 23℃). Activation energy (Ea) of the color changes of diffused TTI and the quality changes of fresh tremella were obtained by reaction kinetics model and Arrhenius model, and the correlation model between RGB value of diffused TTI and quality parameters of fresh tremella was established. The results showed that during the storage process, all the RGB values of TTI showed a downward trend with the extension of the storage time. The higher the storage temperature, the greater decline the RGB values were. The activation energy value of color change was 36.1135 KJ/mol. Along with the extension of storage time and the increase of storage temperature, the quality of fresh tremella presented deterioration, and the difference between the quality parameters and the activation energy of diffused TTI was within 25 KJ/mol. Based on the color change of diffused TTI and the quality parameters of fresh tremella, the correlation model was constructed, and the relative error was within 15%, which was verified by test. It proved the application potential of diffused TTI in the quality monitoring of tremella. Therefore, it is expected that the diffused TTI can be used to monitor the quality of fresh tremella during storage and to predict the quality of tremella.

Key words: Time-temperature Indicator (TTI), fresh tremella, storage, quality, correlation model

中图分类号:

S646.6

康峻菡, 胥义. 基于扩散型TTI与鲜银耳品质关联模型的建立及验证[J]. 中国农学通报, 2020, 36(32): 130-139.

Kang Junhan, Xu Yi. The Correlation Model Between Diffused Time-temperature Indicator and Quality of Fresh Tremella: Establishment and Verification[J]. Chinese Agricultural Science Bulletin, 2020, 36(32): 130-139.

图/表 13

参考文献 39

[1]	罗爱玲. 鲜银耳贮藏保鲜技术研究[D]. 福州:福建农林大学, 2014.
[2]	林华敏, 李彦韦, 赵海东, 等. 智能指示型标签——食品物流包装中的质量管控“神器”[J]. 今日印刷, 2019(11):28-32.
[3]	Vaikousi H, Biliaderis C G, Koutsoumanis K P. Development of a Microbial Time/Temperature Indicator Prototype for Monitoring the Microbiological Quality of Chilled Foods[J]. Applied & Environmental Microbiology, 2008,74(10):3242-3250. doi: 10.1128/AEM.02717-07 URL pmid: 18326676
[4]	唐园园. 固态酶型时间温度指示器的研究[D]. 无锡:江南大学, 2016.
[5]	Taoukis P S, Bili M, Giannakourou M. Application of shelf life modelling of chilled salad products to a TTI based distribution and stock rotation system[J]. Acta Horticulturae, 1998(476):131-140.
[6]	沈力, 胥义, 占锦川等. 智能化标签在食品包装中的应用及研究进展[J]. 食品工业科技, 2015,36(5):377-383.
[7]	Xiaoshuan Z, Gege S, Xinqing X, et al. Application of microbial TTIs as smart label for food quality: response mechanism, application and research trends[J]. Trends in Food Science & Technology, 2016(51):12-23.
[8]	Yan S, Huawei C, Limin Z, et al. Development and characterization of a new amylase type time-temperature indicator[J]. Food control, 2008,19(3):315-319.
[9]	吕志业, 卢立新. 碱性脂肪酶时间温度指示器变色效应的研究[J]. 包装工程, 2009,30(7):8-9.
[10]	Chen Q X, Kubo I. Kinetics of mushroom tyrosinase inhibition by quercetin[J]. Journal of agricultural and food chemistry, 2002,50(14):4108-4112. doi: 10.1021/jf011378z URL pmid: 12083892
[11]	Bobelyn E, Hertog M, Nicola B M. Applicability of an enzymatic time temperature integrator as a quality indicator for mushrooms in the distribution chain[J]. Postharvest Biology and Technology, 2006,42(1):104-114.
[12]	Ellouze M, Augustin J C. Applicability of biological time temperature integrators as quality and safety indicators for meat products[J]. International Journal of Food Microbiology, 2010,138(1-2):119-129. URL pmid: 20074826
[13]	Endoza T F M, Welt B A, Otwell S, et al. Kinetic Parameter Estimation of Time‐temperature Integrators Intended for Use with Packaged Fresh Seafood[J]. Journal of Food Science, 2004, 69(3):FMS90-FMS96.
[14]	Chen H Z, Zhang M, Bhandari B, et al. Applicability of a colorimetric indicator label for monitoring freshness of fresh-cut green bell pepper[J]. Postharvest Biology and Technology, 2018,140.
[15]	傅泽田, 姚萌萌, 马常阳, 等. 基于化学型时间温度指示器的鲜食葡萄品质监测[J]. 中国农业大学学报, 2013,18(06):186-191.
[16]	杨加敏, 胥义. 扩散型时间-温度指示器在预测奇异果品质中的应用[J]. 食品与发酵工业, 2019,45(9):176-182.
[17]	Kuswandi B, Nurfawaidi A. On-package dual sensors label based on pH indicators for real-time monitoring of beef freshness[J]. Food Control, 2017,82:91-100.
[18]	葛蕾. 时间-温度指示系统的研制及其在生鱼片鲜度监测中的应用[D]. 青岛:中国海洋大学, 2014.
[19]	胥义, 王欣, 曹慧. 食品安全管理及信息化实践[M]. 上海: 华东理工大学出版社, 2018.
[20]	杨加敏, 胥义. 扩散型时间温度指示器在表征奇异果品质中的适用性[J]. 食品安全质量检测学报, 2018,9(16):57-62
[21]	张兴丽, 王永敏. 生物化学实验[M]. 北京: 中国轻工业出版社, 2017.
[22]	郑永华, 寇莉萍. 食品贮运学实验[M]. 北京: 中国农业出版社, 2014.
[23]	曹悦, 陆利霞, 熊晓辉. 食品货架期预测新技术进展[J]. 食品研究与开发, 2009,30(05):165-168.
[24]	范新光, 张长峰, 肖璐, 等. 减压处理鲜切西兰花的货架期预测模型构建[J]. 现代食品科技, 2013,29(09):2120-2124.
[25]	钮怡清, 胥义. 哈斯鳄梨应力松弛力学特性及货架期预测模型[J]. 食品与发酵工业, 2017,43(11):75-80.
[26]	谢晶, 张利平, 苏辉, 等. 上海青蔬菜的品质变化动力学模型及货架期预测[J]. 农业工程学报, 2013,29(15):271-278.
[27]	刘国花. 双孢蘑菇采后品质变化及货架期预测模型研究[D]. 天津:天津科技大学, 2015.
[28]	张文婷, 赵武奇, 鲁晓翔, 等. 四种物流贮藏温度对圣女果品质的影响[J]. 食品工业科技, 2015,36(5):329-333.
[29]	罗爱玲. 鲜银耳贮藏保鲜技术研究[D]. 福州:福建农林大学, 2014.
[30]	巩晋龙.杏鲍菇(pleurotus eryngii)冷藏保鲜技术及自溶机理研究[D]. 福州:福建农林大学, 2013.
[31]	张梦娟. 青菜采后部分衰老相关指标变化[D]. 杭州:浙江工商大学, 2018
[32]	张颖. 白玉菇冷藏保鲜及冷链流通技术研究[D]. 福州:福建农林大学, 2014.
[33]	谢丽源, 郑林用, 彭卫红, 等. 不同温度对采后杏鲍菇贮藏品质的影响研究[J]. 食品工业科技, 2015,36(22):334-338,343.
[34]	李志刚, 宋婷, 冯翠萍, 等. 不同温度对杏鲍菇减压贮藏品质的影响[J]. 农业工程学报, 2015,31(3):332-338.
[35]	赵天鹏, 郜海燕, 周拥军, 等. 食用菌菌体自溶机制的研究进展[J]. 食品安全质量检测学报, 2014,5(6):1733-1738.
[36]	Lim S H, Choe W Y, Son B H, et al. Development of a microbial time-temperature integrator system using lactic acid bacteria[J]. Food Science and Biotechnology, 2014,23(2):483-487.
[37]	Taoukis P S. Food Process Modelling \|\| Modelling the use of time-temperature indicators in distribution and stock rotation[J]. Food Process Modelling, 2001: 402-431.
[38]	Giannakourou M C, Koutsoumanis K, Nychas G J E, et al. Field evaluation of the application of time temperature integrators for monitoring fish quality in the chill chain[J]. International Journal of Food Microbiology, 2005,102(3):323-336. doi: 10.1016/j.ijfoodmicro.2004.11.037 URL pmid: 16014299
[39]	康峻菡, 胥义, 杨恒宇.基于扩散型时间-温度指示器表征鲜银耳贮藏过程品质变化[J/OL].食品工业科技:1-11[ 2020- 05- 31]. http://kns.cnki.net/kcms/detail/11.1759.TS.20200513.1705.010.html.

温度/℃	0级		ΣR²	Ea/(KJ/mol)	R²	1级		ΣR²	Ea/(KJ/mol)	R²
温度/℃	K	R²	ΣR²	Ea/(KJ/mol)	R²	K	R²	ΣR²	Ea/(KJ/mol)	R²
5	0.0599	0.8703	3.3733	17.6340	0.8047	0.0870	0.9334	3.8030	36.1135	0.9064
13	0.0905	0.9214				0.1760	0.9936
17	0.0911	0.8180				0.1900	0.9538
23	0.0952	0.7636				0.2250	0.9222

温度/℃	0级		ΣR²	Ea/(KJ/mol)	R²	1级		ΣR²	Ea/(KJ/mol)	R²
温度/℃	K	R²	ΣR²	Ea/(KJ/mol)	R²	K	R²	ΣR²	Ea/(KJ/mol)	R²
5	0.0599	0.8703	3.3733	17.6340	0.8047	0.0870	0.9334	3.8030	36.1135	0.9064
13	0.0905	0.9214				0.1760	0.9936
17	0.0911	0.8180				0.1900	0.9538
23	0.0952	0.7636				0.2250	0.9222

指标	温度/℃	0级		ΣR²	Ea/(KJ/mol)	R²	1级		ΣR²	Ea/(KJ/mol)	R²
指标	温度/℃	K	R²	ΣR²	Ea/(KJ/mol)	R²	K	R²	ΣR²	Ea/(KJ/mol)	R²
失重率	5	0.5342	0.9990	3.9789	53.3144	0.9724
	13	1.2108	0.9990
	17	1.6082	0.9989
	23	2.1295	0.9820
可溶性蛋白质	5	0.0341	0.3090	2.6557	51.1787	0.9972	0.0296	0.2687	2.6419	49.4051	0.9999
	13	0.0642	0.7504				0.0538	0.7635
	17	0.0902	0.7789				0.0711	0.7989
	23	0.1542	0.8174				0.1087	0.8108
可溶性糖	5	0.0222	0.4181	2.7202	53.3368	0.9258	0.0203	0.3956	2.5683	55.5209	0.9285
	13	0.3080	0.7768				0.0286	0.7660
	17	0.0614	0.7264				0.0552	0.6694
	23	0.084	0.7989				0.0710	0.7373
丙二醛	5	0.0231	0.9873	3.8038	34.5912	0.9740	0.0211	0.9822	3.7579	29.8032	0.9771
	13	0.0349	0.9813				0.0305	0.9710
	17	0.0384	0.9049				0.0330	0.8845
	23	0.0593	0.9303				0.0475	0.9202

指标	温度/℃	0级		ΣR²	Ea/(KJ/mol)	R²	1级		ΣR²	Ea/(KJ/mol)	R²
指标	温度/℃	K	R²	ΣR²	Ea/(KJ/mol)	R²	K	R²	ΣR²	Ea/(KJ/mol)	R²
失重率	5	0.5342	0.9990	3.9789	53.3144	0.9724
	13	1.2108	0.9990
	17	1.6082	0.9989
	23	2.1295	0.9820
可溶性蛋白质	5	0.0341	0.3090	2.6557	51.1787	0.9972	0.0296	0.2687	2.6419	49.4051	0.9999
	13	0.0642	0.7504				0.0538	0.7635
	17	0.0902	0.7789				0.0711	0.7989
	23	0.1542	0.8174				0.1087	0.8108
可溶性糖	5	0.0222	0.4181	2.7202	53.3368	0.9258	0.0203	0.3956	2.5683	55.5209	0.9285
	13	0.3080	0.7768				0.0286	0.7660
	17	0.0614	0.7264				0.0552	0.6694
	23	0.084	0.7989				0.0710	0.7373
丙二醛	5	0.0231	0.9873	3.8038	34.5912	0.9740	0.0211	0.9822	3.7579	29.8032	0.9771
	13	0.0349	0.9813				0.0305	0.9710
	17	0.0384	0.9049				0.0330	0.8845
	23	0.0593	0.9303				0.0475	0.9202

品质指标	Ea/(KJ/mol)	与扩散型TTI活化能Ea差值
失重率	53.3144	17.2009
可溶性蛋白质	51.1787	15.0652
可溶性糖	53.3368	17.2233
丙二醛	34.5912	-1.5223
水分含量	41.1551	5.0416
