基于NURBS曲面的小麦叶片三维重建

doi:10.11924/j.issn.1000-6850.casb2023-0653

摘要/Abstract

摘要：

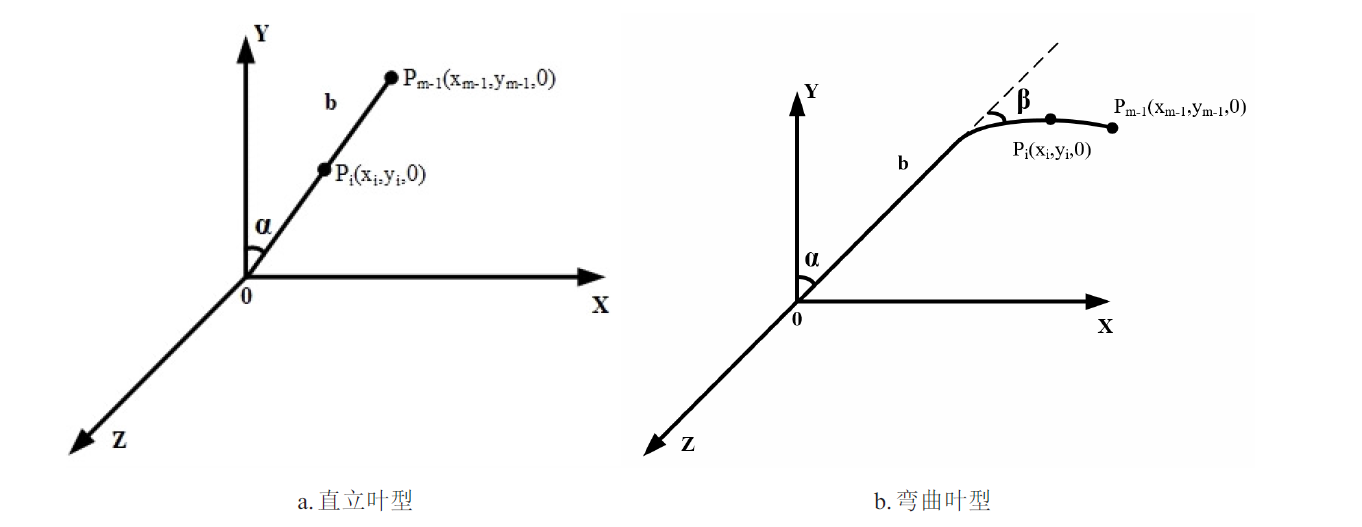

针对小麦叶片三维可视化不易实现的问题，通过NURBS曲面算法对小麦叶片进行三维重建。实测小麦叶片长度、叶片宽度、茎叶夹角、叶鞘长度、叶鞘直径等具体数据，通过主脉控制点算法计算叶片和叶鞘的主脉控制点信息，根据叶片宽度、叶鞘直径等信息计算出全部控制点信息，在visual studio中使用OpenGL构建小麦叶片三维模型。本研究算法得出的小麦叶片模型与真实小麦叶片有较高的相似度，较好地体现了叶片的弯曲度，真实地反映了作物叶片的形态信息。基于NURBS曲面的三维重建控制灵活、使用方便、计算简单，在作物的三维建模方面有较好的应用和参考价值。

关键词: NURBS曲面算法, 小麦叶片, 实测数据, 控制点计算, 节点矢量, 三维重建, OpenGL, 形态特征

Abstract:

Aiming at the problem of three-dimensional visualization of wheat leaves which is difficult to realize, the three-dimensional reconstruction of wheat leaves was carried out by NURBS surface algorithm. Specific data such as wheat leaf length, leaf width, stem and leaf angle, leaf sheath length, and leaf sheath diameter were measured. The main vein control point information of the leaves and leaf sheaths was calculated using the main vein control point algorithm. All the control point information was calculated based on leaf width, leaf sheath diameter, and other information. The three-dimensional model of wheat leaves was constructed using OpenGL in visual studio. The wheat leaf model obtained by the research algorithm has a high similarity with real wheat leaves, which better reflects the curvature of the leaves and truly reflects the morphological information of crop leaves. The three-dimensional reconstruction based on NURBS surface has flexible control, convenient use, and simple calculation, which has good application and reference value in the three-dimensional modeling of crops.

Key words: NURBS surface algorithm, wheat leaf, measured data, control points, node vector, three-dimensional reconstruction, OpenGL, morphological characteristics

徐苗, 马娜. 基于NURBS曲面的小麦叶片三维重建[J]. 中国农学通报, 2024, 40(25): 140-146.

XU Miao, MA Na. Three-dimensional Reconstruction of Wheat Leaf Based on NURBS Surface[J]. Chinese Agricultural Science Bulletin, 2024, 40(25): 140-146.

图/表 6

参考文献 26

[1]	宋祺鹏. 基于生长模型的苗期大豆植株三维可视化研究[D]. 杨凌: 西北农林科技大学, 2017:1-21.
[2]	刘刚, 司永胜, 冯娟. 农林作物三维重建方法研究进展[J]. 农业机械学报, 2014, 45(6):38-46.
[3]	马学强, 刘弘. 具有生长特征的L-系统模型研究[J]. 计算机工程与应用, 2011(36):16-20.
[4]	LINDENMAYER A. Mathematical models for cellular interactions in development I. Filamentswith one-sided inputs[J]. Journal of theoretical biology, 1968, 18(3):280-299.
[5]	FOURCAUD T, BLAISE F, BARTHÉLÉMY D, et al. A functional model of tree growth and tree architecture[J]. Silva fennica, 1997, 31(3):297-311.
[6]	王美丽, 何东健. 基于L系统的小麦根系可视化模拟研究[J]. 农机化研究, 2008(3):36-39.
[7]	廖丹. 基于微分L系统的虚拟玉米根系生长模拟研究[D]. 长春: 东北师范大学, 2010.
[8]	杨乐. 基于L系统的水稻根系模型构建及可视化研究[J]. 科技通报, 2017, 33(5):156.
[9]	辛秋红, 尹海东. 基于L系统大豆叶片形变模拟的研究[J]. 农机化研究, 2009, 31(4):175-177.
[10]	屈洪春, 朱庆生, 蔡林沁, 等. 基于多尺度分析的虚拟植物分支结构三维重建[J]. 系统仿真学报, 2009, 21(15):4718-4721.
[11]	薛均晓, 孙晨阳, 徐明亮, 等. 基于Bezier曲面的麦穗生长建模研究[J]. 系统仿真学报, 2018, 30(7):7.
[12]	QUAN L, TAN P, ZENG G, et al. Image-based plant modeling[J]. ACM Transactions on graphics, 2006, 25(3):599-604
[13]	冯娟, 刘刚, 王圣伟, 等. 采摘机器人果实识别的多源图像配准[J]. 农业机械学报, 2013, 44(3):197-203.
[14]	赵春江, 杨亮, 郭新宇. 基于多幅图像的黄瓜叶片形态三维重建[J]. 农业工程学报, 2009, 25(2):141-144.
[15]	ZHENG Y, GU S, EDELSBRUNNER H, et al. Detailed reconstruction of 3D plant root shape[J]. IEEE, 2011:2026-2033.
[16]	殷小舟, 淮永建, 黄冬辉. 基于双目立体视觉的花卉三维重建[J]. 扬州大学学报(农业与生命科学版), 2012, 33(3):91-94.
[17]	方伟, 冯慧, 杨万能, 等. 表型检测中用于小麦株型研究的快速三维重建方法[J]. 中国农业科技导报, 2016(2):95-101. doi: 10.13304/j.nykjdb.2015.503
[18]	LOCH B, BELWARD J, HANAN J. Application of surface fitting techniques for the representation of leaf surfaces[A].// International congress on modelling and simulation[C]. MODSIM Press: Melbourne, Australia, 2005:1272-1278.
[19]	OQIELAT M N, BELWARD J A, TURNER I W, et al. A hybrid clough-tocher radial basis function method for modelling leaf surfaces[A].// MODSIM 2007: International Congress on Modelling and Simulation[C]. 2007:400-406.
[20]	胡令潮. 基于VTK的植物叶片点云信息处理方法的研究[D]. 杭州: 浙江大学, 2013.
[21]	郭彩玲, 宗泽, 张雪, 等. 基于三维点云数据的苹果树冠层几何参数获取[J]. 农业工程学报, 2017, 33(3):175-181.
[22]	刘国柱, 于新. 基于深度学习的单视图三维重建方法的研究进展[J]. 青岛科技大学学报(自然科学版), 2022, 43(6):98-108.
[23]	杨航, 陈瑞, 安仕鹏, 等. 深度学习背景下的图像三维重建技术进展综述[J]. 中国图象图形学报, 2023, 28(8):2396-2409.
[24]	HAN X F, LAGA H, BENNAMOUN M. Image-based 3D object reconstruction: State-of-the-art and trends in the deep learning era[J]. IEEE transactions on pattern analysis and machine intelligence, 2019, 43(5):1578-1604.
[25]	李书钦, 诸叶平, 刘海龙, 等. 基于NURBS曲面的小麦叶片三维可视化研究与实现[J]. 中国农业科技导报, 2016(3):89-95.
[26]	李书钦, 刘海龙, 诸叶平, 等. 基于实测数据和NURBS曲面的小麦叶片三维可视化[J]. 福建农业学报, 2016, 31(7):777-786.

叶号	行号	控制点坐标/cm
A1	1	{0.00, 0.00, -0.15}，{0.00, 0.00, -0.075}，{0.00, 0.00, 0.00}，{0.00, 0.00, 0.075}，{0.00, 0.00, 0.15}
	2	{-0.37,1.11,-0.25}，{-0.37,1.11,-0.125}，{-0.37,1.11,0.00}，{-0.37,1.11, 0.125}，{-0.37, 1.11, 0.25}
	3	{-0.74, 2.22, -0.30}，{-0.74, 2.22, -0.15}，{-0.74, 2.22,0.00}，{-0.74, 2.22, 0.15}，{-0.74, 2.22, 0.30}
	4	{-1.48, 4.44, -0.25}，{-1.48, 4.44, -0.125}，{-1.48, 4.44, 0.00}，{-1.48, 4.44, 0.125}, {-1.48,4.44, 0.15}
	5	{-2.96,8.88, -0.15}，{-2.96, 8.88, -0.075}，{-2.96, 8.88, 0.00}，{-2.96, 8.88, 0.075}, {-2.96, 8.88, 0.15}
A2	1	{0.00, 0.00, -0.15}，{0.00, 0.00, -0.075}，{0.00, 0.00, 0.00}，{0.00, 0.00, 0.075}，{0.00, 0.00, 0.15}
	2	{0.91, 3.53, -0.20}，{0.91, 3.53, -0.10}，{0.91, 3.53, 0.00}，{0.91, 3.53, 0.10}，{0.91, 3.53, 0.20}
	3	{2.92, 6.69, -0.30}，{2.92, 6.69, -0.15}，{2.92, 6.69, 0.00}，{2.92, 6.69, 0.15}，{2.92, 6.69, 0.30}
	4	{6.73, 12.59, -0.20}，{6.73, 12.59, -0.10}，{6.73, 12.59, 0.00}，{6.73, 12.59, 0.10}，{6.73,12.59, 0.20}
	5	{14.07, 24.13, -0.15}，{14.07, 24.13, -0.075}，{14.07, 24.13, 0.00}，{14.07, 24.13, 0.075}，{14.07, 24.13, 0.15}
B1	1	{0.00, -1.00, -0.15}, {0.00, -1.00, -0.075}, {0.00, -1.00, 0.00}，{0.00, -1.00, 0.075}, {0.00, -1.00, 0.15}
	2	{-0.42, -0.03, -0.18}，{-0.42, -0.03,-0.09}，{-0.42, -0.03, 0.00}，{-0.42, -0.03, 0.09}，{-0.42, -0.03, 0.18}
	3	{-0.84, 0.94, -0.25}，{-0.84, 0.94, -0.125}，{-0.84, 0.94, 0.00}，{-0.84, 0.94, 0.125}，{-0.84, 0.94, 0.25}
	4	{-1.67, 2.88, -0.20}，{-1.67, 2.88, -0.10}，{-1.67, 2.88, 0.00}，{-1.67, 2.88, 0.10}，{-1.67, 2.88, 0.20}
	5	{-3.34,6.76, -0.15}，{-3.34, 6.76, -0.075}，{-3.34, 6.76, 0.00}，{-3.34,6.76, 0.075}，{-3.34, 6.76, 0.15}
B2	1	{0.00, 0.00, -0.15}，{0.00, 0.00, -0.075}，{0.00, 0.00, 0.00}，{0.00, 0.00, 0.075}，{0.00, 0.00, 0.15}
	2	{0.00, 0.85, -0.15}，{0.00, 0.85, -0.075}，{0.00, 0.85, 0.00}，{0.00, 0.85, 0.075}，{0.00, 0.85, 0.15}
	3	{0.00, 1.70, -0.15}，{0.00, 1.70, -0.075}，{0.00, 1.70, 0.00}，{0.00, 1.70, 0.075}，{0.00, 1.70, 0.15}
	4	{0.00, 2.55, -0.20}，{0.00, 2.55, -0.10}，{0.00, 2.55, 0.00}，{0.00, 2.55, 0.10}，{0.00, 2.55, 0.20}
	5	{0.00, 3.40, -0.15}，{0.00, 3.40, -0.075}，{0.00, 3.40, 0.00}，{0.00, 3.40, 0.075}，{0.00, 3.40, 0.15}
B3	1	{0.00, 0.00, -0.15}，{0.00, 0.00, -0.075}，{0.00, 0.00, 0.00}，{0.00, 0.00, 0.075}，{0.00, 0.00, 0.15}
	2	{0.96, 2.87, -0.20}，{0.96, 2.87, -0.10}，{0.96, 2.87, 0.00}，{0.96, 2.87, 0.10}，{0.96, 2.87, 0.20}
	3	{1.91, 5.74, -0.25}，{1.91, 5.74, -0.125}，{1.91, 5.74, 0.00}，{1.91, 5.74, 0.125}，{1.91, 5.74, 0.25}
	4	{2.87, 8.61, -0.20}，{2.87, 8.61, -0.10}，{2.87, 8.61, 0.00}，{2.87, 8.61, 0.10}，{2.87, 8.61, 0.20}
	5	{9.00, 15.80, -0.15}，{9.00, 15.80, -0.075}，{9.00, 15.80, 0.00}，{9.00, 15.80, 0.075}，{9.00, 15.80, 0.15}

叶号	行号	控制点坐标/cm
A1	1	{0.00, 0.00, -0.15}，{0.00, 0.00, -0.075}，{0.00, 0.00, 0.00}，{0.00, 0.00, 0.075}，{0.00, 0.00, 0.15}
	2	{-0.37,1.11,-0.25}，{-0.37,1.11,-0.125}，{-0.37,1.11,0.00}，{-0.37,1.11, 0.125}，{-0.37, 1.11, 0.25}
	3	{-0.74, 2.22, -0.30}，{-0.74, 2.22, -0.15}，{-0.74, 2.22,0.00}，{-0.74, 2.22, 0.15}，{-0.74, 2.22, 0.30}
	4	{-1.48, 4.44, -0.25}，{-1.48, 4.44, -0.125}，{-1.48, 4.44, 0.00}，{-1.48, 4.44, 0.125}, {-1.48,4.44, 0.15}
	5	{-2.96,8.88, -0.15}，{-2.96, 8.88, -0.075}，{-2.96, 8.88, 0.00}，{-2.96, 8.88, 0.075}, {-2.96, 8.88, 0.15}
A2	1	{0.00, 0.00, -0.15}，{0.00, 0.00, -0.075}，{0.00, 0.00, 0.00}，{0.00, 0.00, 0.075}，{0.00, 0.00, 0.15}
	2	{0.91, 3.53, -0.20}，{0.91, 3.53, -0.10}，{0.91, 3.53, 0.00}，{0.91, 3.53, 0.10}，{0.91, 3.53, 0.20}
	3	{2.92, 6.69, -0.30}，{2.92, 6.69, -0.15}，{2.92, 6.69, 0.00}，{2.92, 6.69, 0.15}，{2.92, 6.69, 0.30}
	4	{6.73, 12.59, -0.20}，{6.73, 12.59, -0.10}，{6.73, 12.59, 0.00}，{6.73, 12.59, 0.10}，{6.73,12.59, 0.20}
	5	{14.07, 24.13, -0.15}，{14.07, 24.13, -0.075}，{14.07, 24.13, 0.00}，{14.07, 24.13, 0.075}，{14.07, 24.13, 0.15}
B1	1	{0.00, -1.00, -0.15}, {0.00, -1.00, -0.075}, {0.00, -1.00, 0.00}，{0.00, -1.00, 0.075}, {0.00, -1.00, 0.15}
	2	{-0.42, -0.03, -0.18}，{-0.42, -0.03,-0.09}，{-0.42, -0.03, 0.00}，{-0.42, -0.03, 0.09}，{-0.42, -0.03, 0.18}
	3	{-0.84, 0.94, -0.25}，{-0.84, 0.94, -0.125}，{-0.84, 0.94, 0.00}，{-0.84, 0.94, 0.125}，{-0.84, 0.94, 0.25}
	4	{-1.67, 2.88, -0.20}，{-1.67, 2.88, -0.10}，{-1.67, 2.88, 0.00}，{-1.67, 2.88, 0.10}，{-1.67, 2.88, 0.20}
	5	{-3.34,6.76, -0.15}，{-3.34, 6.76, -0.075}，{-3.34, 6.76, 0.00}，{-3.34,6.76, 0.075}，{-3.34, 6.76, 0.15}
B2	1	{0.00, 0.00, -0.15}，{0.00, 0.00, -0.075}，{0.00, 0.00, 0.00}，{0.00, 0.00, 0.075}，{0.00, 0.00, 0.15}
	2	{0.00, 0.85, -0.15}，{0.00, 0.85, -0.075}，{0.00, 0.85, 0.00}，{0.00, 0.85, 0.075}，{0.00, 0.85, 0.15}
	3	{0.00, 1.70, -0.15}，{0.00, 1.70, -0.075}，{0.00, 1.70, 0.00}，{0.00, 1.70, 0.075}，{0.00, 1.70, 0.15}
	4	{0.00, 2.55, -0.20}，{0.00, 2.55, -0.10}，{0.00, 2.55, 0.00}，{0.00, 2.55, 0.10}，{0.00, 2.55, 0.20}
	5	{0.00, 3.40, -0.15}，{0.00, 3.40, -0.075}，{0.00, 3.40, 0.00}，{0.00, 3.40, 0.075}，{0.00, 3.40, 0.15}
B3	1	{0.00, 0.00, -0.15}，{0.00, 0.00, -0.075}，{0.00, 0.00, 0.00}，{0.00, 0.00, 0.075}，{0.00, 0.00, 0.15}
	2	{0.96, 2.87, -0.20}，{0.96, 2.87, -0.10}，{0.96, 2.87, 0.00}，{0.96, 2.87, 0.10}，{0.96, 2.87, 0.20}
	3	{1.91, 5.74, -0.25}，{1.91, 5.74, -0.125}，{1.91, 5.74, 0.00}，{1.91, 5.74, 0.125}，{1.91, 5.74, 0.25}
	4	{2.87, 8.61, -0.20}，{2.87, 8.61, -0.10}，{2.87, 8.61, 0.00}，{2.87, 8.61, 0.10}，{2.87, 8.61, 0.20}
	5	{9.00, 15.80, -0.15}，{9.00, 15.80, -0.075}，{9.00, 15.80, 0.00}，{9.00, 15.80, 0.075}，{9.00, 15.80, 0.15}

叶鞘	行号	控制点坐标/cm
A 叶鞘	1	{-0.16, -6.00, 0.00}，{-0.16,-6.00,-0.16}，{0.16,-6.00,-0.16}，{0.16, -6.00, 0.00}，{0.16, -6.00, 0.16}，{-0.16, -6.00, 0.16}，{-0.16, -6.00, 0.00}
	2	{-0.16, -5.00, 0.00}，{-0.16, -5.00, -0.16}，{0.16, -5.00, -0.16}，{0.16, -5.00, 0.00}，{0.16, -5.00, 0.16}，{-0.16, 5.00, 0.16}，{-0.16, -5.00, 0.00}
	3	{-0.16, -4.00,0.00}，{-0.16, -4.00, -0.16}，{0.16, -4.00, -0.16}，{0.16, -4.00, 0.00}，{0.16, -4.00, 0.16}，{-0.16, -4.00, 0.16}，{-0.16, -4.00, 0.00}
	4	{-0.16,-3.00,0.00}，{-0.16,-3.00,-0.16}，{0.16,-3.00,-0.16}，{0.16,-3.00,0.00}，{0.16, -3.00, 0.16}，{-0.16, -3.00, 0.16}，{-0.16, -3.00, 0.00}
	5	{-0.16,-2.00, 0.00}，{-0.16,-2.00,-0.16}，{0.16, -2.00, -0.16}，{0.16, -2.00, 0.00}，{0.16, -2.00, 0.16}，{-0.16, -2.00, 0.16}，{-0.16, -2.00, 0.00}
	6	{-0.16, -1.00, 0.00}，{-0.16, -1.00, -0.16}，{0.16, -1.00, -0.16}，{0.16, -1.00, 0.00}，{0.16, -1.00, 0.16}，{-0.16, -1.00, 0.16}，{-0.16,-1.00, 0.00}
	7	{-0.16,0.00,-0.16}，{-0.16, 0.00,-0.16}，{0.16,0.00,-0.16}，{0.16, 0.00, 0.00}，{0.16, 0.00, 0.16}，{-0.16, 0.00, 0.16}，{-0.16, 0.00, 0.16}
B 叶鞘	1	{-0.06, -4.00, 0.00}，{-0.06, -4.00, -0.06}，{0.06, -4.00, -0.06}，{0.06, -4.00, 0.00}，{0.06, -4.00, 0.06}，{-0.06, -4.00, 0.06}，{-0.06, -4.00, 0.00}
	2	{-0.06, -3.33, 0.00}，{-0.06, -3.33, -0.06}，{0.06, 3.33, -0.06}，{0.06, 3.33, 0.00}，{0.06, -3.33, 0.06}，{-0.06, 3.33, 0.06}，{-0.06, 3.33, 0.00}
	3	{-0.06, 2.67, 0.00}，{-0.06, 2.67, -0.06}，{0.06, 2.67 -0.06}，{0.06, 2.67, 0.00}，{0.06, 2.67, 0.06}，{-0.06, 2.67, 0.06}，{-0.06, 2.67, 0.00}
	4	{-0.06, -2.00, 0.00}，{-0.06, -2.00, -0.06}，{0.06, -2.00, -0.06}，{0.06, -2.00, 0.00}，{0.06, -2.00, 0.06}，{-0.06, -2.00, 0.06}，{-0.06, -2.00, 0.00}
	5	{-0.06, -1.33, 0.00}，{-0.06, -1.33, -0.06}，{0.06, -1.33, -0.06}，{0.06, -1.33, 0.00}，{0.06, -1.33, 0.06}，{-0.06, -1.33 0.06}，{-0.06, -1.33, 0.00}
	6	{-0.06, -0.67, 0.00}，{-0.06, -0.67, -0.06}，{0.06, -0.67 -0.06}，{0.06, -0.67, 0.00}，{0.06, -0.67, 0.06}，{-0.06, -0.67, 0.06}，{-0.06, -0.67, 0.00}
	7	{-0.06, -4.00, 0.00}，{-0.06, -4.00, -0.06}，{0.06, -4.00, -0.06}，{0.06, -4.00, 0.00}，{0.06, -0.67, 0.06}，{-0.06, -0.67, 0.06}，{-0.06, -0.67, 0.00}

叶鞘	行号	控制点坐标/cm
A 叶鞘	1	{-0.16, -6.00, 0.00}，{-0.16,-6.00,-0.16}，{0.16,-6.00,-0.16}，{0.16, -6.00, 0.00}，{0.16, -6.00, 0.16}，{-0.16, -6.00, 0.16}，{-0.16, -6.00, 0.00}
	2	{-0.16, -5.00, 0.00}，{-0.16, -5.00, -0.16}，{0.16, -5.00, -0.16}，{0.16, -5.00, 0.00}，{0.16, -5.00, 0.16}，{-0.16, 5.00, 0.16}，{-0.16, -5.00, 0.00}
	3	{-0.16, -4.00,0.00}，{-0.16, -4.00, -0.16}，{0.16, -4.00, -0.16}，{0.16, -4.00, 0.00}，{0.16, -4.00, 0.16}，{-0.16, -4.00, 0.16}，{-0.16, -4.00, 0.00}
	4	{-0.16,-3.00,0.00}，{-0.16,-3.00,-0.16}，{0.16,-3.00,-0.16}，{0.16,-3.00,0.00}，{0.16, -3.00, 0.16}，{-0.16, -3.00, 0.16}，{-0.16, -3.00, 0.00}
	5	{-0.16,-2.00, 0.00}，{-0.16,-2.00,-0.16}，{0.16, -2.00, -0.16}，{0.16, -2.00, 0.00}，{0.16, -2.00, 0.16}，{-0.16, -2.00, 0.16}，{-0.16, -2.00, 0.00}
	6	{-0.16, -1.00, 0.00}，{-0.16, -1.00, -0.16}，{0.16, -1.00, -0.16}，{0.16, -1.00, 0.00}，{0.16, -1.00, 0.16}，{-0.16, -1.00, 0.16}，{-0.16,-1.00, 0.00}
	7	{-0.16,0.00,-0.16}，{-0.16, 0.00,-0.16}，{0.16,0.00,-0.16}，{0.16, 0.00, 0.00}，{0.16, 0.00, 0.16}，{-0.16, 0.00, 0.16}，{-0.16, 0.00, 0.16}
B 叶鞘	1	{-0.06, -4.00, 0.00}，{-0.06, -4.00, -0.06}，{0.06, -4.00, -0.06}，{0.06, -4.00, 0.00}，{0.06, -4.00, 0.06}，{-0.06, -4.00, 0.06}，{-0.06, -4.00, 0.00}
	2	{-0.06, -3.33, 0.00}，{-0.06, -3.33, -0.06}，{0.06, 3.33, -0.06}，{0.06, 3.33, 0.00}，{0.06, -3.33, 0.06}，{-0.06, 3.33, 0.06}，{-0.06, 3.33, 0.00}
	3	{-0.06, 2.67, 0.00}，{-0.06, 2.67, -0.06}，{0.06, 2.67 -0.06}，{0.06, 2.67, 0.00}，{0.06, 2.67, 0.06}，{-0.06, 2.67, 0.06}，{-0.06, 2.67, 0.00}
	4	{-0.06, -2.00, 0.00}，{-0.06, -2.00, -0.06}，{0.06, -2.00, -0.06}，{0.06, -2.00, 0.00}，{0.06, -2.00, 0.06}，{-0.06, -2.00, 0.06}，{-0.06, -2.00, 0.00}
	5	{-0.06, -1.33, 0.00}，{-0.06, -1.33, -0.06}，{0.06, -1.33, -0.06}，{0.06, -1.33, 0.00}，{0.06, -1.33, 0.06}，{-0.06, -1.33 0.06}，{-0.06, -1.33, 0.00}
	6	{-0.06, -0.67, 0.00}，{-0.06, -0.67, -0.06}，{0.06, -0.67 -0.06}，{0.06, -0.67, 0.00}，{0.06, -0.67, 0.06}，{-0.06, -0.67, 0.06}，{-0.06, -0.67, 0.00}
	7	{-0.06, -4.00, 0.00}，{-0.06, -4.00, -0.06}，{0.06, -4.00, -0.06}，{0.06, -4.00, 0.00}，{0.06, -0.67, 0.06}，{-0.06, -0.67, 0.06}，{-0.06, -0.67, 0.00}
