绿豆EMS诱变突变体库的构建及表型分析

doi:10.11924/j.issn.1000-6850.casb19020066

摘要/Abstract

摘要：

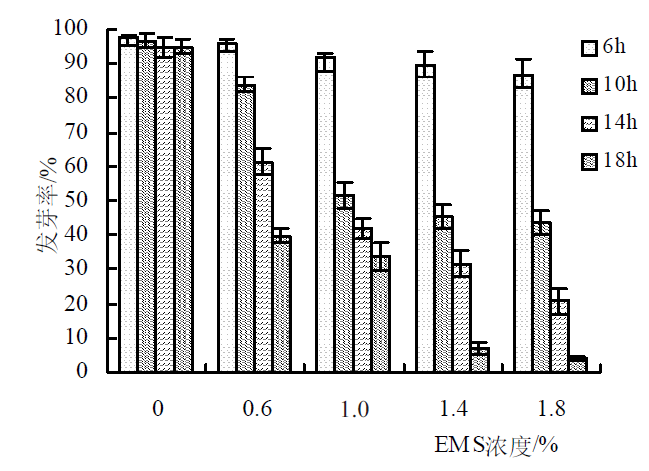

为探索适于绿豆突变体库构建的最佳甲基磺酸乙酯(EMS)浓度和处理时间,以‘皖科绿3号’种子为研究材料,设置4种EMS浓度（0.6%,1.0%,1.4%和1.8%）和4种时间（6 h,10 h,14 h和18h）共16个组合,并以半致死剂量为突变体库构建的条件。结果表明,‘皖科绿3号’的最佳诱变条件为1.0%/10 h。用该条件处理6000粒成熟的‘皖科绿3号’种子,获得M₁代植株998份。对M₂代群体中植株叶色、叶形、株高、花器官、开花期等性状进行鉴定。共发现表型变异材料324株,变异频率为2.97%。突变体中叶色变异和矮秆是主要的变异类型,分别占植株总数的1.10%和0.46%。利用基因组重测序技术对4份突变材料的突变位点进行鉴定,测序结果表明碱基突变频率为1/37.78 kb。实验确定‘皖科绿3号’的最佳诱变条件为1.0%/10 h。研究结果也表明利用EMS诱变的方法可获得丰富的表型变异材料,可用于绿豆品种遗传改良和功能基因组学研究。

关键词: 绿豆, 甲基磺酸乙酯, 突变体库, 表型, 测序

Abstract:

To find out the optimal concentration and treatment time of ethyl methyl sulfonate (EMS) for mung bean mutant library construction, ‘Wankelü 3’ was used as material, 16 treatment combinations including 4 EMS concentrations (0.6%, 1.0%, 1.4% and 1.8%) and 4 kinds of treatment time (6, 10, 14 and 18 h) were employed to treat the seeds, and the semi-lethal dose was selected for mutant library construction. The results showed that the optimal condition for ‘Wankelü 3’ mutagenesis was 1.0%/10 h. 6000 mature seeds of ‘Wankelü 3’ were treated under this optimal condition, 998 M₁ lines were obtained. Traits such as leaf color, leaf shape, plant height, flower morphology and flowering time of M₂ generation plants were investigated. A total of 324 mutants were obtained, and the mutation frequency was 2.97%. Among these mutants, leaf color mutation and dwarf were the dominated variation types, accounting for 1.10 % and 0.46%, respectively. Mutation sites of 4 mutant materials were determined by genome re-sequencing, the result showed that their base mutation frequency was 1/37.78 kb. These results also demonstrated that using EMS mutagenesis method, abundant phenotypic variant materials could be obtained, which could be used in genetic improvement and genome functional analysis for mung bean.

Key words: mung bean, ethyl methane sulfonate (EMS), mutant library, phenotype, sequencing

中图分类号:

S322

叶卫军, 杨勇, 张丽亚, 田东丰, 张玲玲, 周斌. 绿豆EMS诱变突变体库的构建及表型分析[J]. 中国农学通报, 2020, 36(17): 36-41.

Ye Weijun, Yang Yong, Zhang Liya, Tian Dongfeng, Zhang Lingling, Zhou Bin. Construction of EMS Mutagenesis Mung Bean Mutant Library and Phenotypic Analysis[J]. Chinese Agricultural Science Bulletin, 2020, 36(17): 36-41.

图/表 4

参考文献 30

[1]	王丽侠, 程须珍, 王素华 . 绿豆种质资源、育种及遗传研究进展[J]. 中国农业科学, 2009,42(5):1519-1527.
[2]	程须珍, 王素华 . 中国绿豆产业发展及科技应用[M]. 北京: 中国农业科学技术出版社, 2002: 3-8.
[3]	Yaqub M, Mahmood T, Akhtar M , et al. Induction of mungbean [Vigna radiata (L.) Wilczek] as a grain legume in the annual rice-wheat double cropping system[J]. Pakistan Journal of Botany, 2010,42(5):3125-3135.
[4]	De Faria S M, Lewis G P, Sprent J I , et al. Occurrence of nodulation in the Leguminosae[J]. New Phytologist, 1989,111(4):607-619. doi: 10.1111/nph.1989.111.issue-4 URL
[5]	Kang Y J, Kim S K, Kim M Y , et al. Genome sequence of mungbean and insights into evolution within Vigna species[J]. Nature Communication, 2014,5:5443. doi: 10.1038/ncomms6443 URL
[6]	Anai T, Yamada T, Hideshima R , et al. Two high-oleic-acid soybean mutants, M23 and KK21, have disrupted microsomal omega-6 fatty acid desaturase, encoded by GmFAD2-1a[J]. Breeding Science, 2008,58(4):447-452. doi: 10.1270/jsbbs.58.447 URL
[7]	申慧芳, 李国柱 . 不同抗旱性绿豆突变体的抗旱生理特性[J]. 核农学报, 2006,20(5):371-374.
[8]	McCallum C M, Comai L, Greene E A , et al. Targeted screening for induced mutations[J]. Nature Biotechnology, 2000,18(4):455-457. doi: 10.1038/74542 URL
[9]	Chiu W H, Chandler J, Cnops G , et al. Mutations in the TORNADO2 gene affect cellular decisions in the peripheral zone of the shoot apical meristem of Arabidopsis thaliana[J]. Plant Molecular Biology, 2007,63(6):731-744. doi: 10.1007/s11103-006-9105-z URL
[10]	杨健源, 张少红, 姜先芽 , 等. 三黄占2号EMS诱变突变体库的构建与稻瘟病抗性初步评价[J]. 广东农业科学, 2011,38(16):1-3.
[11]	Slade A J, Fuerstenberg S I, Loeffler D , et al. A reverse genetic, nontransgenic approach to wheat crop improvement by TILLING[J]. Nature Biotechnology, 2005,23(1):75-81. doi: 10.1038/nbt1043 URL
[12]	Till B J, Reynolds S H, Weil C , et al. Discovery of induced point mutations in maize genes by TILLING[J]. BMC Plant Biology, 2004,4(1):12. doi: 10.1186/1471-2229-4-12 URL
[13]	Cooper J L, Till B J, Laport R G , et al. TILLING to detect induced mutations in soybean[J]. BMC Plant Biology, 2008,8(1):9-18. doi: 10.1186/1471-2229-8-9 URL
[14]	Wang N, Wang Y, Tian F , et al. A functional genomics resource for Brassica napus: development of an EMS mutagenized population and discovery of FAE1 point mutations by TILLING[J]. New Phytologist, 2008,180(4):751-765. doi: 10.1111/nph.2008.180.issue-4 URL
[15]	Bahl J R, Gupta P K . Chlorophyll mutations in mungbean (Vigna radiate (L.)[J]. Theoretical and Applied Genetics, 1982,63(1):23-26. doi: 10.1007/BF00303485 URL
[16]	Caldwell D G, McCallum N, Shaw P, et al. A structured mutant population for forward and reverse genetics in Barley (Hordeum vulgare L.)[J]. The Plant Journal, 2004,40(1):143-150. doi: 10.1111/tpj.2004.40.issue-1 URL
[17]	殷冬梅, 台国琴, 杨海棠 , 等. 花生突变体的EMS诱变及分子检测[J]. 中国农学通报, 2009,25(5):53-56.
[18]	吕鑫, 张福耀, 平俊爱 , 等. 利用EMS化学诱变高粱无融合生殖系的研究[J]. 中国农学通报, 2010,26(22):160-164.
[19]	王军, 杨慧卿, 袁峰 , 等. EMS诱变谷子“长农35号”M1代成熟期株型突变体的鉴定与分析[J]. 中国农学通报, 2011,27(18):84-89.
[20]	宋燕妮, 杜黎黎, 王学征 , 等. 甜瓜突变体库的构建及M2群体表型变异的研究[J]. 植物遗传资源学报, 2015,16(6):1338-1344.
[21]	张浩, 汤沙, 李迎涛 , 等. 谷子窄颖花突变体sins1的表型分析和突变基因定位[J]. 植物遗传资源学报, 2017,18(3):538-545.
[22]	孙明铭, 蒋彩虹, 罗朝鹏 , 等. 烟草黄绿叶突变体的遗传分析与基因定位[J]. 植物遗传资源学报, 2018,19(5):942-950.
[23]	Chen J B, Somta P, Chen X , et al. Gene mapping of a mutant mungbean (Vigna radiata L.) using new molecular markers suggests a gene encoding a YUC4-like protein regulates the chasmogamous flower trait[J] . Frontiers in Plant Science, 2016,7(8):830.
[24]	Jiao K Y, Li X, Guo Y F , et al. Regulation of compound leaf development in mungbean (Vigna radiata L.) by CUP-SHAPED COTYLEDON/NO APICAL MERISTEM (CUC/NAM) gene[J]. Planta, 2019,249(3):765-774. doi: 10.1007/s00425-018-3038-z URL
[25]	Zhu P, He L, Li Y , et al. OTG-snpcaller: an optimized pipeline based on TMAP and GATK for SNP calling from ion torrent data[J]. PLos One, 2014,9(5):e97507. doi: 10.1371/journal.pone.0097507 URL
[26]	Yan W H, Wang P, Chen H X , et al. A major QTL, Ghd8, plays pleiotropic roles in regulating grain productivity, plant height, and heading date in rice[J]. Molecular Plant, 2011,4(2):319-330. doi: 10.1093/mp/ssq070 URL
[27]	Feng Z M, Zhang L, Yang C Y , et al. EF8 is involved in photoperiodic flowering pathway and chlorophyll biogenesis in rice[J]. Plant Cell Reports, 2014,33(12):2003-2014. doi: 10.1007/s00299-014-1674-8 URL
[28]	Koo B H, Yoo S C, Park J W , et al. Natural variation in OsPRR37 regulates heading date and contributes to rice cultivation at a wide range of latitudes[J]. Molecular Plant, 2013,6(6):1877-1888. doi: 10.1093/mp/sst088 URL
[29]	Wang Q X, Xie W B, Xing H K , et al. Genetic architecture of natural variation in rice chlorophyll content revealed by a genome-wide association study[J]. Molecular Plant, 2015,8(6):946-957. doi: 10.1016/j.molp.2015.02.014 URL
[30]	Greene E A, Codomo C A, Taylor N E , et al. Spectrum of chemically induced mutations from a large-scale reverse-genetic screen in Arabidopsis[J]. Genetics, 2003,164(2):731-740.

性状	变异类型	突变体株数	突变频率/%
叶片	叶色	120	1.10
叶片	叶型	32	0.29
茎	高秆	12	0.11
	矮秆	50	0.46
	畸形茎	21	0.19
	茎色	3	0.03
花	畸形花	4	0.04
花期	早花	19	0.17
花期	晚花	25	0.23
育性	半不育	32	0.29
育性	全不育	15	0.14
荚	长荚	6	0.06
荚	短荚	25	0.23
合计		364	3.34
复合性状突变		40	0.37
实际数量		324	2.97

性状	变异类型	突变体株数	突变频率/%
叶片	叶色	120	1.10
叶片	叶型	32	0.29
茎	高秆	12	0.11
	矮秆	50	0.46
	畸形茎	21	0.19
	茎色	3	0.03
花	畸形花	4	0.04
花期	早花	19	0.17
花期	晚花	25	0.23
育性	半不育	32	0.29
育性	全不育	15	0.14
荚	长荚	6	0.06
荚	短荚	25	0.23
合计		364	3.34
复合性状突变		40	0.37
实际数量		324	2.97

编号	测序深度/×	测序总碱基数/bp	突变碱基数/bp	突变频率/1/kb
ME1	18.33	7883350874	161372	48.85
ME2	20.15	8666094933	156116	55.51
ME3	18.20	7827440585	157308	49.76
ME4	17.85	7664010506	161813	47.36
平均	18.63	8010224225	159152	50.37

编号	测序深度/×	测序总碱基数/bp	突变碱基数/bp	突变频率/1/kb
ME1	18.33	7883350874	161372	48.85
ME2	20.15	8666094933	156116	55.51
ME3	18.20	7827440585	157308	49.76
ME4	17.85	7664010506	161813	47.36
平均	18.63	8010224225	159152	50.37
