Analysis of Nutrient Status and Spatial Distribution Characteristics of Tobacco Planting Soil in Hanzhong of Qinling Mountains based on ArcGIS

doi:10.11924/j.issn.1000-6850.cabs2022-0989

Abstract

Abstract:

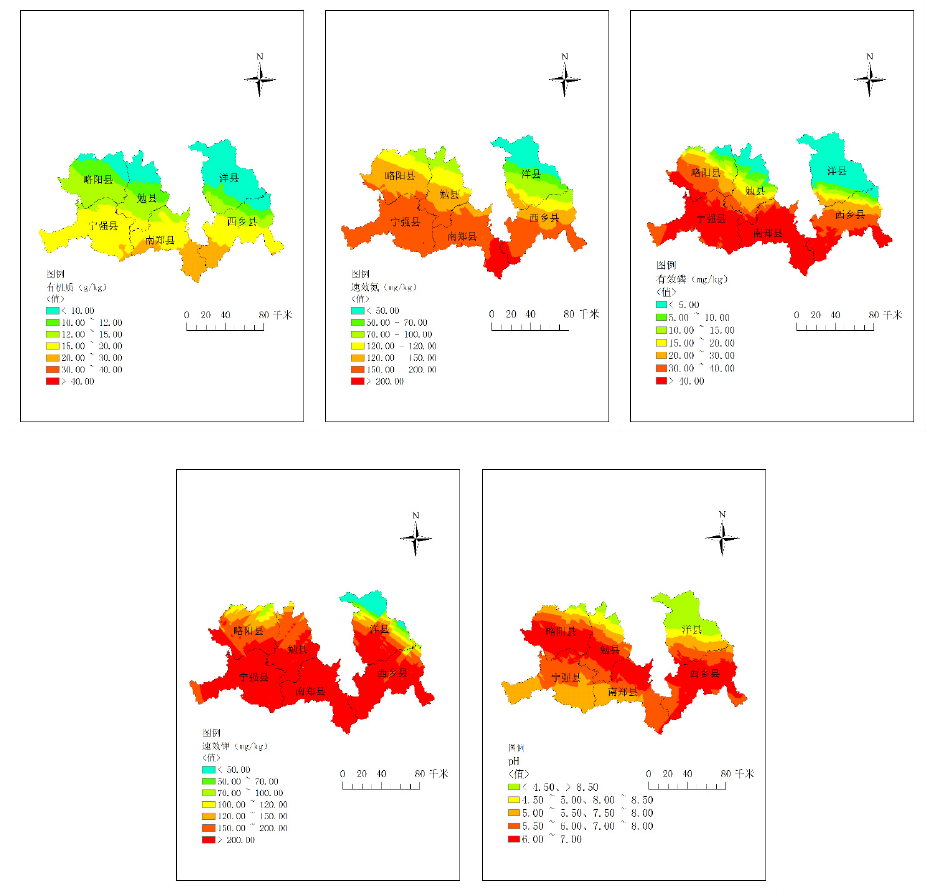

The nutrient content of tobacco planting soil in Hanzhong area of Qinling Mountains was analyzed to provide theoretical basis for scientific fertilization and soil health cultivation of tobacco planting soil in Hanzhong area of Qinling Mountains. The spatial distribution law and characteristics of soil nutrients for tobacco planting in Hanzhong, Qinling Mountains were analyzed by using statistical methods and ArcGIS software. The results showed that the average values of organic matter, available nitrogen, available phosphorus, available potassium and pH of tobacco planting soil in Hanzhong, Qinling Mountains were 16.69 g/kg, 159.31 g/kg, 43.34 mg/kg, 375.22 mg/kg and pH 6.21. The content of soil organic matter mainly belonged to the fourth grade, accounting for 34.09%; the content of available nitrogen mainly belonged to the second grade, accounting for 46.59%; the content of available phosphorus, available potassium and pH mainly belonged to the first grade, accounting for 38.64%, 75.00% and 23.86%, respectively. There was a significant positive correlation between soil nutrient contents; in term of spatial distribution, the soil organic matter content and available nitrogen content were the highest in the area bordering Nanzheng County and Xixiang County, the available phosphorus content was the highest in Ningqiang County and Nanzheng County, the available potassium content was the highest in Nanzheng County, Ningqiang County and Xixiang County, and the pH level was the highest in the south-central part of Lueyang County, the southern part of Mian County, the northern part of Nanzheng County and the central part of Xixiang County. The soil nutrient content in Mian County, Yang County, Lueyang County and Xixiang County was relatively low. The soil nutrient status in Nanzheng County and Ningqiang County was good. It is suggested to increase the content of soil organic carbon by applying organic fertilizer, reduce the application of chemical fertilizer, and enhance the ability of soil carbon fixation and fertilization.

Key words: Qinling Mountains, soil nutrients, spatial distribution, organic matter, nutrient characteristics

LIU Futong, ZHENG Meiying, WANG Hui, LI Maosen, ZHAO Peiyan, ZHENG Bangxi, HE Wenqin, YAO Feng, REN Tianbao. Analysis of Nutrient Status and Spatial Distribution Characteristics of Tobacco Planting Soil in Hanzhong of Qinling Mountains based on ArcGIS[J]. Chinese Agricultural Science Bulletin, 2023, 39(35): 103-110.

Figures/Tables 6

References 24

[1]	CAO Y G, BAI Z K, ZHOU W, et al. Forces driving changes in cultivated land and management countermeasures in the three gorges reservoir area,China[J]. Journal of mountain science, 2013, 10(01):149-162. doi: 10.1007/s11629-013-2240-5 URL
[2]	卫新东, 王筛妮, 员学锋, 等. 陕西省耕地质量时空变化特征及其分异规律[J]. 农业工程学报, 2018, 34(3):240-248.
[3]	叶回春, 张世文, 黄元仿, 等. 北京延庆盆地农田表层土壤肥力评价及其空间变异[J]. 中国农业科学, 2013, 46(15):3151-3160. doi: 10.3864/j.issn.0578-1752.2013.15.009
[4]	许仙菊, 马洪波, 陈杰, 等. 基于养分丰缺诊断和主成分分析相结合的桑园土壤肥力评价[J]. 土壤, 2013, 45(3):470-476.
[5]	焉莉, 王寅, 冯国忠, 等. 吉林省农田土壤肥力现状及变化特征[J]. 中国农业科学, 2015, 48(23):4800-4810. doi: 10.3864/j.issn.0578-1752.2015.23.021
[6]	庞夙, 陶晓秋, 黄玫, 等. 四川省植烟区土壤肥力评价[J]. 中国烟草科学, 2013, 34(1):40-44.
[7]	张连金, 赖光辉, 孙长忠, 等. 北京九龙山不同林分土壤肥力诊断与综合评价[J]. 中南林业科技大学学报, 2017, 37(1):1-6.
[8]	郑立臣, 宇万太, 马强, 等. 农田土壤肥力综合评价研究进展[J]. 生态学杂志, 2004(5):156-161.
[9]	SARDIANA I K, SUSILA D, SUPADMA A A, et al. Soil fertility evaluation and land management of dryland farming at Tegallalang Sub-District, Gianyar Regency, Bali, Indonesia[J]. Iop conference, 2017, 98:012043.
[10]	叶回春, 张世文, 黄元仿, 等. 粗糙集理论在土壤肥力评价指标权重确定中的应用[J]. 中国农业科学, 2014, 47(04):710-717.
[11]	吴美荣, 陈歆. 基于ArcGIS的文昌市耕地土壤养分空间分布预测研究[J]. 热带农业科学, 2020, 40(12):80-86.
[12]	胡明. 关中灌区农业土壤肥力的时空演化:以渭南市临渭区为例[J]. 贵州农业科学, 2012, 40(10):86-89.
[13]	刘晓林, 李文峰, 杨林楠, 等. 基于ArcGIS地统计分析模块的土壤养分空间变异分析——以云南省建水县为例[J]. 土壤通报, 2012, 43(6):1432-1437.
[14]	常乃杰, 张云贵, 李志宏, 等. 云南玉溪植烟土壤速效养分空间变异特征及应用[J]. 中国土壤与肥料, 2017(1):7-13.
[15]	木合塔尔·艾买提, 肖鹏南, 周勇, 等. 山地丘陵交错地带耕层土壤pH和养分空间变异特征及影响因素分析[J]. 南方农业学报, 2019, 50(7):1432-1441.
[16]	高洁, 武红旗, 李新梅, 等. 近40年阜康市耕层土壤养分变化特征[J]. 西南农业学报, 2020, 33(10):2294-2302.
[17]	CHABALA L M, MULOLWA A, LUNGU O. Application of ordinary kriging in mapping soil organic carbon in Zambia[J]. Pedosphere, 2017, 27(2):338-343. doi: 10.1016/S1002-0160(17)60321-7 URL
[18]	鲍士旦. 土壤农化分析(3版)[M]. 北京: 中国农业出版社, 2000.
[19]	李松. 汉中市土壤养分空间变异及耕地地力评价研究[D]. 杨凌: 西北农林科技大学, 2016.
[20]	XINGYI Z, YUEYU S, XUDONG Z, et al. Spatial variability of nutrient properties in black soil of Northeast China[J]. Pedosphere: A quarterly journal of soil science, 2007, 17(1):19-29.
[21]	杨世琦, 张爱平, 杨正礼, 等. 黄土高原果园土壤有机质变化趋势分析——以陕西省为例[J]. 水土保持研究, 2009, 16(1):27-31.
[22]	张玲娥, 双文元, 云安萍, 等. 30年间河北省曲周县土壤速效钾的时空变异特征及其影响因素[J]. 中国农业科学, 2014, 47(5):923-933. doi: 10.3864/j.issn.0578-1752.2014.05.009
[23]	王莹. 土壤有机质与氮磷钾的相关性[J]. 农业科技与信息, 2008(17):32-33.
[24]	赵明松, 张甘霖, 李德成, 等. 苏中平原南部土壤有机质空间变异特征研究[J]. 地理科学, 2013, 33(1):83-89. doi: 10.13249/j.cnki.sgs.2013.01.83

分级	1	2	3	4	5	6	7
有机质/(g/kg)	>40.00	30.00~40.00	20.00~30.00	15.00~20.00	12.00~15.00	10.00~12.00	<10.00
速效氮/(mg/kg)	>200.00	150.00~200.00	120.00~150.00	100.00~120.00	70.00~100.00	50.00~70.00	<50.00
有效磷/(g/kg)	>40.00	30.00~40.00	20.00~30.00	15.00~20.00	10.00~15.00	5.00~10.00	<5.00
速效钾/(g/kg)	>200.00	150.00~200.00	120.00~150.00	100.00~120.00	70.00~100.00	50.00~70.00	<50.00
pH	6.00~7.00	5.50~6.00；7.00~7.50	5.00~5.50；7.50~8.00	4.50~5.00；8.00~8.50	<4.50；>8.50

分级	1	2	3	4	5	6	7
有机质/(g/kg)	>40.00	30.00~40.00	20.00~30.00	15.00~20.00	12.00~15.00	10.00~12.00	<10.00
速效氮/(mg/kg)	>200.00	150.00~200.00	120.00~150.00	100.00~120.00	70.00~100.00	50.00~70.00	<50.00
有效磷/(g/kg)	>40.00	30.00~40.00	20.00~30.00	15.00~20.00	10.00~15.00	5.00~10.00	<5.00
速效钾/(g/kg)	>200.00	150.00~200.00	120.00~150.00	100.00~120.00	70.00~100.00	50.00~70.00	<50.00
pH	6.00~7.00	5.50~6.00；7.00~7.50	5.00~5.50；7.50~8.00	4.50~5.00；8.00~8.50	<4.50；>8.50

测定项目		区域	样本个数	最大值	最小值	平均数	标准差	变异系数/%
有机质/(g/kg)		略阳县	7	18.30	6.93	11.97	3.71	30.99
		宁强县	8	26.70	8.55	18.61	5.88	31.60
		勉县	8	17.20	7.38	12.13	3.23	26.63
		南郑县	40	47.10	7.66	18.47	7.32	39.63
		洋县	10	20.60	4.54	11.66	4.94	42.37
		西乡县	15	22.40	7.71	14.92	4.58	30.70
		总数	88	47.10	4.54	16.69	6.82	40.86
速效氮/(mg/kg)	略阳县		7	158.26	82.57	137.98	27.48	19.92
	宁强县		8	235.33	104.69	177.20	41.09	23.19
	勉县		8	150.00	91.52	129.62	21.74	16.77
	南郑县		40	364.00	112.85	176.83	43.41	24.55
	洋县		10	161.70	58.49	106.65	34.11	31.98
	西乡县		15	183.72	92.89	143.31	27.14	18.94
	总数		88	364.00	58.49	159.31	46.58	29.24
有效磷/(mg/kg)	略阳县		7	86.80	9.90	34.44	23.99	69.66
	宁强县		8	90.50	10.20	39.36	29.29	74.42
	勉县		8	26.60	5.00	15.81	6.75	42.69
	南郑县		40	129.60	5.60	58.09	32.65	56.21
	洋县		10	21.00	3.50	10.83	4.79	44.23
	西乡县		15	61.60	9.70	30.02	16.21	54.00
	总数		88	129.60	3.50	43.34	31.98	73.79
速效钾/(mg/kg)	略阳县		7	263.00	185.00	215.00	30.18	14.04
	宁强县		8	370.00	103.00	217.50	88.54	40.71
	勉县		8	263.00	184.00	217.13	33.15	15.27
	南郑县		40	1013.00	180.00	494.45	227.09	45.93
	洋县		10	345.00	222.00	262.80	36.21	13.78
	西乡县		15	344.00	136.00	228.87	56.72	24.78
	总数		88	1013.00	103.00	375.22	214.98	57.29
pH	略阳县		7	8.28	5.67	6.80	0.87	12.79
	宁强县		8	6.73	4.56	5.61	0.81	14.44
	勉县		8	8.20	5.31	6.69	1.11	16.59
	南郑县		40	7.76	4.29	5.71	0.93	16.29
	洋县		10	8.06	6.00	7.51	0.63	8.39
	西乡县		15	7.70	5.01	6.45	0.82	12.71
	总数		88	8.28	4.29	6.21	1.08	17.62

测定项目		区域	样本个数	最大值	最小值	平均数	标准差	变异系数/%
有机质/(g/kg)		略阳县	7	18.30	6.93	11.97	3.71	30.99
		宁强县	8	26.70	8.55	18.61	5.88	31.60
		勉县	8	17.20	7.38	12.13	3.23	26.63
		南郑县	40	47.10	7.66	18.47	7.32	39.63
		洋县	10	20.60	4.54	11.66	4.94	42.37
		西乡县	15	22.40	7.71	14.92	4.58	30.70
		总数	88	47.10	4.54	16.69	6.82	40.86
速效氮/(mg/kg)	略阳县		7	158.26	82.57	137.98	27.48	19.92
	宁强县		8	235.33	104.69	177.20	41.09	23.19
	勉县		8	150.00	91.52	129.62	21.74	16.77
	南郑县		40	364.00	112.85	176.83	43.41	24.55
	洋县		10	161.70	58.49	106.65	34.11	31.98
	西乡县		15	183.72	92.89	143.31	27.14	18.94
	总数		88	364.00	58.49	159.31	46.58	29.24
有效磷/(mg/kg)	略阳县		7	86.80	9.90	34.44	23.99	69.66
	宁强县		8	90.50	10.20	39.36	29.29	74.42
	勉县		8	26.60	5.00	15.81	6.75	42.69
	南郑县		40	129.60	5.60	58.09	32.65	56.21
	洋县		10	21.00	3.50	10.83	4.79	44.23
	西乡县		15	61.60	9.70	30.02	16.21	54.00
	总数		88	129.60	3.50	43.34	31.98	73.79
速效钾/(mg/kg)	略阳县		7	263.00	185.00	215.00	30.18	14.04
	宁强县		8	370.00	103.00	217.50	88.54	40.71
	勉县		8	263.00	184.00	217.13	33.15	15.27
	南郑县		40	1013.00	180.00	494.45	227.09	45.93
	洋县		10	345.00	222.00	262.80	36.21	13.78
	西乡县		15	344.00	136.00	228.87	56.72	24.78
	总数		88	1013.00	103.00	375.22	214.98	57.29
pH	略阳县		7	8.28	5.67	6.80	0.87	12.79
	宁强县		8	6.73	4.56	5.61	0.81	14.44
	勉县		8	8.20	5.31	6.69	1.11	16.59
	南郑县		40	7.76	4.29	5.71	0.93	16.29
	洋县		10	8.06	6.00	7.51	0.63	8.39
	西乡县		15	7.70	5.01	6.45	0.82	12.71
	总数		88	8.28	4.29	6.21	1.08	17.62

分级	区域		1		2		3		4		5		6		7
有机质	略阳县		0.00		0.00		0.00		14.29		42.86		0.00		42.86
	宁强县		0.00		0.00		50.00		37.50		0.00		0.00		12.50
	勉县		0.00		0.00		0.00		25.00		50.00		25.00		0.00
	南郑县		2.50		2.50		27.50		37.50		15.00		10.00		5.00
	洋县		0.00		0.00		10.00		10.00		40.00		0.00		40.00
	西乡县		0.00		0.00		6.67		53.33		6.67		6.67		26.67
	总频率		1.14		1.14		19.32		34.09		20.45		7.95		15.91
速效氮	略阳县		0.00		42.86		42.86		0.00		14.29		0.00		0.00
	宁强县		37.50		50.00		0.00		12.50		0.00		0.00		0.00
	勉县		0.00		12.50		62.50		12.50		12.50		0.00		0.00
	南郑县		22.50		55.00		20.00		2.50		0.00		0.00		0.00
	洋县		0.00		20.00		10.00		30.00		20.00		20.00		0.00
	西乡县		0.00		60.00		13.33		20.00		6.67		0.00		0.00
	总频率		13.64		46.59		21.59		10.23		5.68		2.27		0.00
有效磷	略阳县		28.57		42.86		14.29		0.00		0.00		14.29		0.00
	宁强县		37.50		12.50		25.00		0.00		25.00		0.00		0.00
	勉县		0.00		0		37.50		25.00		25.00		12.50		0.00
	南郑县		65.00		7.50		20.00		5.00		0.00		2.50		0.00
	洋县		0.00		0.00		10.00		0.00		40.00		40.00		10.00
	西乡县		20.00		20.00		33.33		6.67		13.33		6.67		0.00
	总频率		38.64		11.36		22.73		5.68		11.36		9.09		1.14
速效钾	略阳县		57.14		42.86		0.00		0.00		0.00		0.00		0.00
	宁强县		37.50		50.00		0.00		12.50		0.00		0.00		0.00
	勉县		50.00		50.00		0.00		0.00		0.00		0.00		0.00
	南郑县		92.50		7.50		0.00		0.00		0.00		0.00		0.00
	洋县		100.00		0.00		0.00		0.00		0.00		0.00		0.00
	西乡县		53.33		40.00		6.67		0.00		0.00		0.00		0.00
	总频率		75.00		22.73		1.14		1.14		0.00		0.00		0.00
pH	略阳县		42.86		42.86		0.00		14.29		0.00		0.00		0.00
	宁强县		37.50		12.50		25.00		25.00		0.00		0.00		0.00
	勉县		0.00		62.50		37.50		0.00		0.00		0.00		0.00
	南郑县		20.00		27.50		30.00		17.50		5.00		0.00		0.00
	洋县		20.00		20.00		50.00		10.00		0.00		0.00		0.00
	西乡县		33.33		40.00		26.67		0.00		0.00		0.00		0.00
总频率		23.86		31.82		29.55		12.50		2.27		0.00		0.00
