Effect of Different Passivators on Cadmium Contaminated Soil in Enshi

doi:10.11924/j.issn.1000-6850.casb2021-0108

Abstract

Abstract:

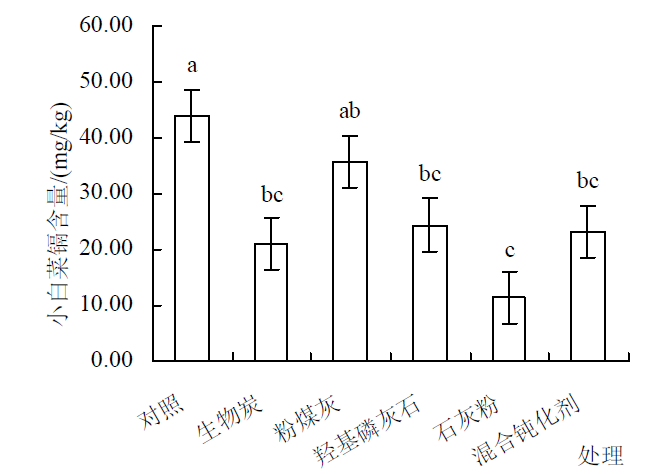

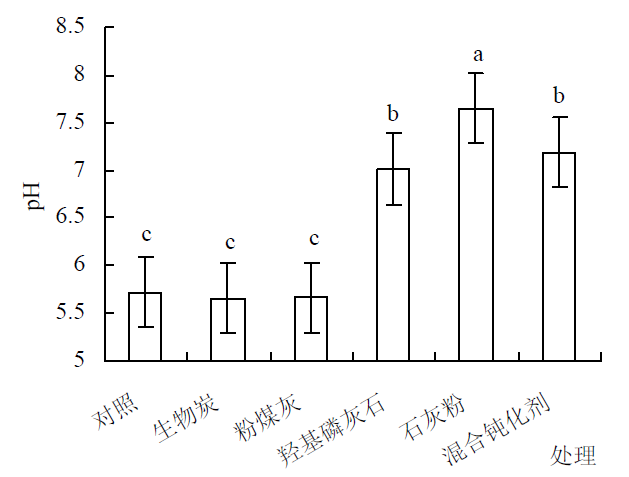

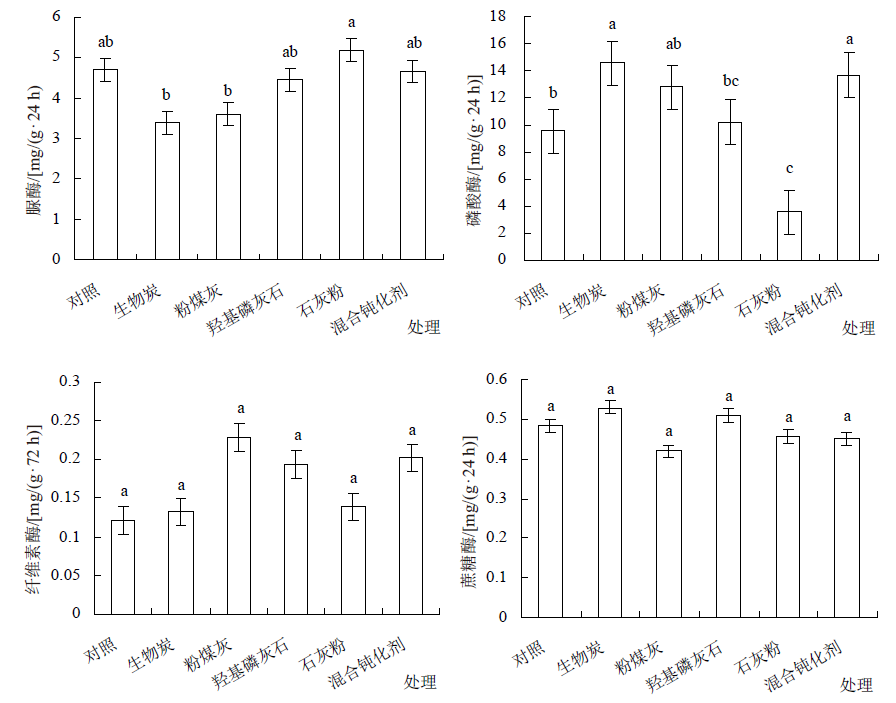

To solve the problem of heavy metal cadmium pollution in vegetable soil in mountainous areas of Enshi by applying different passivators, the passivation effects of different passivators on cadmium in soil and on the yield, quality and cadmium content of pakchoi were investigated by pot experiments. Five treatments were set up, including biochar, hydroxyapatite, lime powder, fly ash and mixed organic passivator. The results showed that the fresh weight and plant height of pakchoi were promoted by the treatments except lime powder, and the fresh weight of pakchoi increased by 109.72% in the fly ash treatment. Meanwhile, soil pH increased by 25.18%, 36.61% and 28.21% in the hydroxyapatite, lime powder and mixed organic passivator treatments, respectively. All treatments had no significant effect on the activities of urease, cellulase and sucrase in the soil. The biochar and mixed organic passivator treatments significantly increased phosphatase activity by 52.85% and 69.82%, while the lime powder treatment significantly inhibited the activity. Five treatments all reduced the cadmium content of pakchoi. Among them, biochar, hydroxyapatite, lime powder and mixed organic passivator all achieved significant inhibition effects on cadmium absorption, and the effect of lime powder was the best, reducing the cadmium content by 73.80%. All treatments had no significant effect on the quality of pakchoi. In addition, the biochar and mixed organic passivator treatments reduced the total cadmium content in soil by 27.21% and 46.98%, respectively, and the lime powder and mixed organic passivator treatments reduced the ion-exchange cadmium content by 43.67% and 47.35%, respectively. In conclusion, the application of the five passivators can reduce the cadmium content of pakchoi. Among them, the mixed organic passivator treatment can not only enhance enzyme activity, but also reduce the proportion of total cadmium and available cadmium (ionic and water-soluble) in soil without affecting the yield and quality of pakchoi.

Key words: Enshi, cadmium, soil heavy metal, passivator, pakchoi, enzyme activity, biomass

CLC Number:

MING Jiajia, XIANG Jiqian, KANG Yu, HUANG Lin, CHEN Yongbo, QU Yong, HU Baishun, YIN Hongqing. Effect of Different Passivators on Cadmium Contaminated Soil in Enshi[J]. Chinese Agricultural Science Bulletin, 2022, 38(1): 93-99.

Figures/Tables 7

References 42

[1]	SONG W, CHEN S, LIU J, et al. Variation of Cd concentration in various rice cultivars and derivation of cadmium toxicity thresholds for paddy soil by species-sensitivity distribution[J]. Journal of integrative agriculture, 2015, 14(9):1845-1854. doi: 10.1016/S2095-3119(14)60926-6 URL
[2]	唐世琪, 万能, 曾明中, 等. 恩施地区土壤与农作物硒镉地球化学特征[J]. 物探与化探, 2020, 44(3):607-614.
[3]	SINGH A, SHARMA R K, AGRAWAL M, et al. Health risk assessment of heavy metals via dietary intake of foodstuffs from the wastewater irrigated site of a dry tropical area of India[J]. Food and chemical toxicology: an international journal published for the British Industrial Biological Research Association, 2010, 48(2).
[4]	XIAO W, YE X, ZHANG Q, et al. Evaluation of cadmium transfer from soil to leafy vegetables: Influencing factors, transfer models, and indication of soil threshold contents[J]. Ecotoxicology and environmental safety, 2018, 164:355-362. doi: 10.1016/j.ecoenv.2018.08.041 URL
[5]	祝白春, 王艳莉, 郭宝福, 等. 2013—2016年南京市民膳食中镉暴露风险评估[J]. 实用预防医学, 2019, 26(9):1027-1030.
[6]	丁生林, 李媛, 刘伯聪. 国内生鲜蔬菜营养安全品质检测现状分析[J]. 蔬菜, 2014(2):29-32.
[7]	朱凤娟, 邱正明, 矫振彪, 等. 湖北高山蔬菜产业发展现状及建议[J]. 中国蔬菜, 2020(3):5-11.
[8]	周小娟, 张嫣, 尹猛. 恩施北部土壤Cd形态分布特征及影响因素研究[J]. 腐植酸, 2018(2):21-27.
[9]	唐世琪, 万能, 曾明中, 等. 恩施地区土壤与农作物硒镉地球化学特征[J]. 物探与化探, 2020, 44(3):607-614.
[10]	缪晓伟. 土壤重金属污染治理与修复方法[J]. 资源节约与环保, 2020(11):107-108.
[11]	崔俊义, 马友华, 王陈丝丝, 等. 农田土壤镉污染原位钝化修复技术的研究进展[J]. 中国农学通报, 2017, 33(30):79-83.
[12]	DIELS L, VAN D, BASTIAENS L. New developments in treatment of heavy metal contaminated soils[J]. Reviews in environmental science & biotechnology, 2002, 1(1):75-82.
[13]	王仙慧, 龙涛, 张建昆, 等. 土壤钝化剂对磷石膏污染土壤中Cd的钝化修复效应[J]. 湖北农业科学, 2020, 59(12):68-71.
[14]	孙翠平, 李彦, 张英鹏, 等. 农田重金属钝化剂研究进展[J]. 山东农业科学, 2016, 48(8):147-153.
[15]	王陈丝丝, 马友华, 于倩倩, 等. 钝化剂对农田土壤重金属形态与其稳定性影响研究[J]. 中国农学通报, 2016, 32(1):172-177.
[16]	周春海, 张振强, 黄志红, 等. 不同钝化剂对酸性土壤中重金属的钝化修复研究进展[J]. 中国农学通报, 2020, 36(33):71-79.
[17]	杜彩艳, 木霖, 王红华, 等. 不同钝化剂及其组合对玉米(Zea mays)生长和吸收Pb Cd As Zn影响研究[J]. 农业环境科学学报, 2016, 35(8):1515-1522.
[18]	土壤环境质量农用地土壤污染风险管控标准(节选)[J]. 腐植酸, 2018(4):58-61.
[19]	XU Z, YU G, ZHANG X, et al. Soil enzyme activity and stoichiometry in forest ecosystems along the North-South Transect in eastern China (NSTEC)[J]. Soil biology & biochemistry, 2017.
[20]	MAYOR Ángeles G, GOIRÁN S B, VALLEJO V R, et al. Variation in soil enzyme activity as a function of vegetation amount, type, and spatial structure in fire-prone Mediterranean shrublands[J]. Science of the total environment, 2016: S004896971630496X.
[21]	Domínguez M T, HOLTHOF E, SMITH A R, et al. Contrasting response of summer soil respiration and enzyme activities to long-term warming and drought in a wet shrubland (NE Wales, UK)[J]. Applied soil ecology, 2016, 110:151-155. doi: 10.1016/j.apsoil.2016.11.003 URL
[22]	胡松水. 农田土壤重金属污染钝化修复技术新见解[J]. 科学技术创新, 2018(21):161-162.
[23]	曹心德, 魏晓欣, 代革联, 等. 土壤重金属复合污染及其化学钝化修复技术研究进展[J]. 环境工程学报, 2011, 5(7):1441-1453.
[24]	SEYEDARDALAN, ASHRAFZADEH, DAVID-SOLERA et al. Development of cadmium-safe crop cultivars: a mini review[J]. Journal of crop improvement, 2015, 30(2):107-117. doi: 10.1080/15427528.2015.1134743 URL
[25]	ZORNOZA R, GUERRERO C, MATAIX-SOLERA J, et al. Assessing air-drying and rewetting pre-treatment effect on some soil enzyme activities under Mediterranean conditions[J]. Soil biology and biochemistry, 2006, 38(8).
[26]	杨宁宁, 梁青芳, 高煜, 等. 重金属和酞酸酯复合污染对土壤酶活性的影响[J]. 江西农业学报, 2019, 31(9):116-120.
[27]	冯丹, 王金生, 滕彦国. 铜、锌和铅复合污染对土壤水解酶活性的影响[J]. 农业资源与环境学报, 2015, 32(4):411-417.
[28]	陈泽雄, 朱凰榕, 周志军, 等. 改性蒙脱石修复镉污染对水稻根际土壤酶活性的影响[J]. 农业资源与环境学报, 2019, 36(4):528-533.
[29]	杜彩艳, 段宗颜, 曾民, 等. 田间条件下不同组配钝化剂对玉米(Zea mays)吸收Cd、As和Pb影响研究[J]. 生态环境学报, 2015, 24(10):1731-1738.
[30]	吴烈善, 曾东梅, 莫小荣, 等. 不同钝化剂对重金属污染土壤稳定化效应的研究[J]. 环境科学, 2015, 36(1):309-313.
[31]	梁家妮. 土壤重金属Cu、Cd和F复合污染评价及修复技术探讨[D]. 合肥:安徽农业大学, 2009.
[32]	李竞天. 不同改性条件下粉煤灰对铅镉污染土壤的钝化研究[D]. 杨凌:西北农林科技大学, 2019.
[33]	李婧, 陈森, 周艳文, 等. 不同土壤钝化剂对土壤镉生物有效性的影响[J]. 安徽农业科学, 2017, 45(36):94-97.
[34]	HALE B, EVANS L, LAMBERT R. Effects of cement or lime on Cd, Co, Cu, Ni, Pb, Sb and Zn mobility in field-contaminated and aged soils[J]. Journal of hazardous materials, 2012, 199(15):119-127.
[35]	MALANDRINO M, ABOLLINO O, BUOSO S, et al. Accumulation of heavy metals from contaminated soil to plants and evaluation of soil remediation by vermiculite[J]. Chemosphere, 2011, 82(2).
[36]	蔡东, 肖文芳, 李国怀. 施用石灰改良酸性土壤的研究进展[J]. 中国农学通报, 2010, 26(9):206-213.
[37]	范才成, 周行瑶. 恩施山区酸化土壤改良初探[J]. 湖北农业科学, 2012, 51(4):693-695.
[38]	代允超, 吕家珑, 曹莹菲, 等. 石灰和有机质对不同性质镉污染土壤中镉有效性的影响[J]. 农业环境科学学报, 2014, 33(3):514-519.
[39]	丁疆华, 温琰茂, 舒强. 土壤环境中镉、锌形态转化的探讨[J]. 城市环境与城市生态, 2001(2):47-49.
[40]	陈世宝, 朱永官, 马义兵. 添加羟基磷灰石对土壤铅吸附与解吸特性的影响[J]. 环境化学, 2006(4):409-413.
[41]	郭继斌. 粉煤灰钝化土壤重金属Cd、Pb效果及其机理研究[D]. 临汾:山西师范大学, 2016.
[42]	林雪原, 荆延德, 巩晨, 等. 生物炭吸附重金属的研究进展[J]. 环境污染与防治, 2014, 36(5):83-87.

处理	pH	Cd/(mg/kg)	碱解氮/(mg/kg)	速效磷/(mg/kg)	速效钾/(mg/kg)	有机质/(g/kg)
土壤	5.96	0.59	231.0	50.17	269.0	16.08
生物炭	11.06	0.57
粉煤灰	5.64	1.17
羟基磷灰石	10.71	0.22
石灰粉	13.67	0.38
混合钝化剂	12.54	2.42

处理	pH	Cd/(mg/kg)	碱解氮/(mg/kg)	速效磷/(mg/kg)	速效钾/(mg/kg)	有机质/(g/kg)
土壤	5.96	0.59	231.0	50.17	269.0	16.08
生物炭	11.06	0.57
粉煤灰	5.64	1.17
羟基磷灰石	10.71	0.22
石灰粉	13.67	0.38
混合钝化剂	12.54	2.42

处理	鲜重/g	株高/cm
对照	27.87±6.91ab	20.75±0.25ab
生物炭	54.84±16.58ab	22.42±1.9ab
粉煤灰	58.45±19.74a	23.51±4.33ab
羟基磷灰石	56.36±15.04a	25.71±3.48a
石灰粉	16.61±6.14c	17.92±4.0b
混合钝化剂	38.71±22.67ab	22.15±6.4ab

处理	鲜重/g	株高/cm
对照	27.87±6.91ab	20.75±0.25ab
生物炭	54.84±16.58ab	22.42±1.9ab
粉煤灰	58.45±19.74a	23.51±4.33ab
羟基磷灰石	56.36±15.04a	25.71±3.48a
石灰粉	16.61±6.14c	17.92±4.0b
混合钝化剂	38.71±22.67ab	22.15±6.4ab
