Colonization of GFP-labelled Bacillus amyloliquefaciens Bam22 in Brassica napus

doi:10.11924/j.issn.1000-6850.casb2021-0830

Abstract

Abstract:

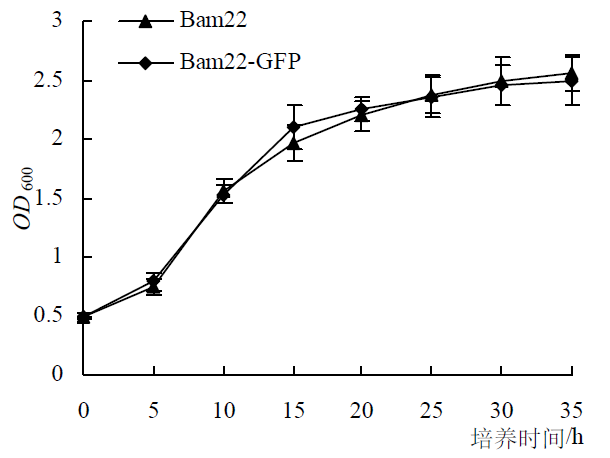

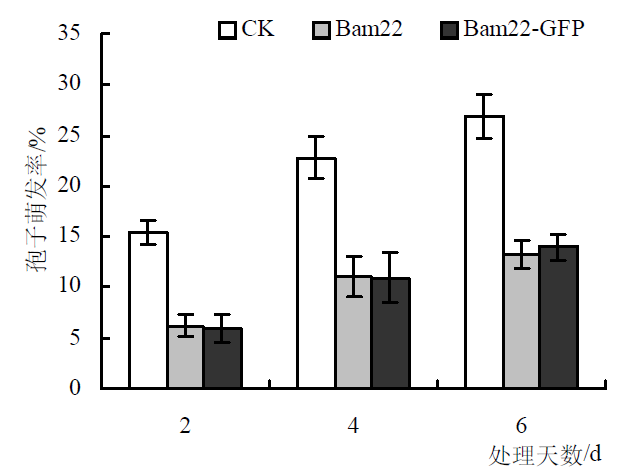

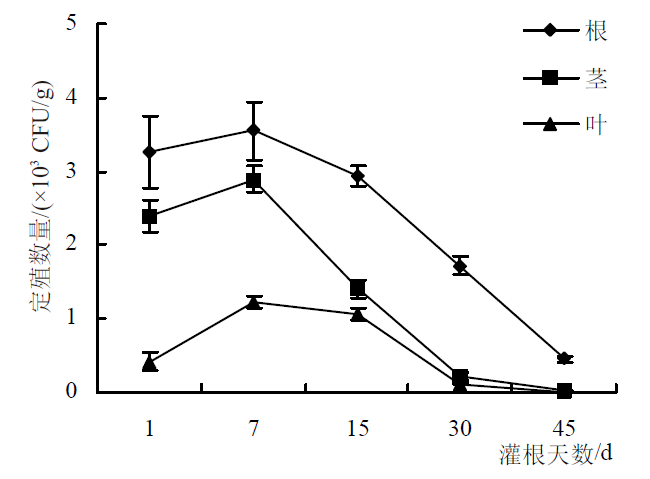

The paper aims to investigate the colonization of GFP-labelled Bacillus amyloliquefaciens Bam22 in Brassica napus and lay a solid foundation for the application of this biocontrol agent. In this study, plasmid pGFP4412 containing green fluorescent protein gene was introduced into Bam22 cells by natural transformation method to construct GFP fluorescent labelled strain. The growth curve and inhibition activity to pathogenic microorganism of wild type strain Bam22 and Bam22-GFP were compared. The number of colonized strains in different tissue parts of B. napus was observed, and the colonization rule and ability were analyzed. The results showed that the labelled strain Bam22-GFP emitted strong green fluorescence under the excitation light wavelength of 488 nm, and the GFP fluorescent protein labelling and its gene expression did not affect the growth curve and inhibition activity to pathogenic microorganism of Bam22. The labelled strain could colonize in the B. napus plant through the root irrigation, and was transmitted from the root to the stem and leaf of B. napus. The colonization rules of Bam22-GFP in the root, stem and leaf all showed a trend of first increase and then decrease. On the 45 ^th day after inoculation, the labelled strains could still be detected in the roots, stems and leaves of B. napus. The results show that Bam22 could colonize and transfer in B. napus by root irrigation and display good colonization ability, and it has a good application prospect in agricultural production.

Key words: Brassica napus, Bacillus amyloliquefaciens, green fluorescence protein labelling, colonization, Plasmodiophora brassicae

CLC Number:

S432.1

YANG Xiaoxiang, HUANG Xiaoqin, ZHANG Lei, ZHANG Zhongmei, XIAN Yunxi, ZHOU Xiquan, LIU Yong. Colonization of GFP-labelled Bacillus amyloliquefaciens Bam22 in Brassica napus[J]. Chinese Agricultural Science Bulletin, 2022, 38(1): 125-130.

Figures/Tables 6

References 25

[1]	田兆丰, 刘伟成, 董丹, 等. 生防枯草芽孢杆菌kct99的GFP标记及其在甘蓝根部的定殖示踪[J]. 华北农学报, 2012, 27(6):53-57.
[2]	夏京津, 陈建武, 宋怿, 等. 解淀粉芽孢杆菌HE活性成分鉴定及抗菌特性分析[J]. 南方水产科学, 2019, 15(3):41-49.
[3]	高竞, 方伟, 顾佳悦, 等. 荧光标记解淀粉芽孢杆菌WK1在山核桃树体和土壤中的定殖规律[J]. 浙江农业学报, 2021, 33(1):77-86.
[4]	BENIZRI E, BAUDOIN E, GUCKERT A. Root colonization by inoculated plant growth- promoting rhizobacteria[J]. Biocontrol science and technology, 2001, 11(5):557-574. doi: 10.1080/09583150120076120 URL
[5]	楼兵干, 张炳欣, RYDER M. 铜绿假单胞菌株CR56在黄瓜和番茄根围的定殖能力[J]. 浙江大学学报, 2001, 27(2):183-186.
[6]	葛银林, 李德葆. 植物抗病性的诱导、机制、分子生物学研究进展[J]. 中国生物防治, 1995, 11(3):134-141.
[7]	刘忠梅, 王霞, 赵金焕, 等. 有益内生细菌B946在小麦体内的定殖规律[J]. 中国生物防治, 2005, 21(2):113-116.
[8]	刘云霞, 张青文, 周明群. 电镜免疫胶体金定位水稻内生细菌的研究[J]. 农业生物技术学报, 1996, 4(4):354-358.
[9]	殷幼平, 袁训娥, 李强, 等. 生防菌枯草芽孢杆菌CQBS03的绿色荧光蛋自基因标记及其在柑橘叶片上的定殖[J]. 中国农业科学, 2010, 43(17):3555-3563.
[10]	田涛, 亓雪晨, 王琦, 等. 芽孢杆菌绿色荧光蛋白标记及其在小麦体表定殖的初探[J]. 植物病理学报, 2004, 34(4):346-351.
[11]	STUURMAN N. Use of green fluorescent protein color variants expressed on stable broad host range vectors to visualize rhizobia interacting with plants[J]. The American phytopathological society, 2000, 13(11):1163-1169.
[12]	RAMOS C, MOLBAK L, MOLIN S, et al. Bacterial activity in the rhizosphere analyzed at the single-cell level by monitoring ribosome contents and synjournal rates[J]. Applied and environmental microbiology, 2001, 66(2):801-809. doi: 10.1128/AEM.66.2.801-809.2000 URL
[13]	HWANG I K, LEE H Y, KIM M H, et al. Development of real-time PCR assay for genetic identification of the mottled skate, Beringraja pulchra[J]. Forensic science international, 2015, 255:80-84. doi: 10.1016/j.forsciint.2015.05.028 URL
[14]	SIRAJUDDIN S A, SUNDRAM S. Evaluation of two transformation protocols and screening of positive plasmid introduction into Bacillus cereus EB2, a gram-positive bacterium using qualitative analyses[J]. Brazilian journal of microbiology, 2020, 51(3):919-929. doi: 10.1007/s42770-020-00241-0 URL
[15]	张凯妮, 张蕾, 黄小琴, 等. 芽孢杆菌Bam220对油菜根肿病的防治效果研究[J]. 中国农学通报, 2020, 36(34):104-109.
[16]	YANG X X, ZHANG L, XIANG Y J, et al. Comparative transcriptome analysis of Sclerotinia sclerotiorum revealed its response mechanisms to the biological control agent, Bacillus amyloliquefaciens[J]. Scientific reports, 2020, 10:12576. doi: 10.1038/s41598-020-69434-9 URL
[17]	IDRIS E E, IGLESIAS D J, TALON M, et al. Tryptophan- dependent production of indole-3-acetic acid (IAA) affects level of plant growth promotion by Bacillus amyloliquefaciens FZB42[J]. Molecular plant-microbe interactions, 2007, 6(20):619-626.
[18]	刘翠平. 甘蓝根肿病生防菌的筛选及防治效果测定[D]. 重庆:西南大学, 2014:20-23.
[19]	杨佩文, 李家瑞, 杨勤忠, 等. 根肿病菌核糖体基因ITS区段的克隆测序及其在检测中的应用[J]. 云南农业大学学报, 2003, 18(3):228-233.
[20]	郝慧娟, 刘洪伟, 尹淑丽, 等. 枯草芽孢杆菌BSD2的GFP标记及其在黄瓜上的定殖研究[J]. 华北农学报, 2016, 31(4):106-111.
[21]	田涛, 亓雪晨, 王琦, 等. 芽孢杆菌绿色荧光蛋白标记及其在小麦体表定殖的初探[J]. 植物病理学报, 2004, 34(4):346-351.
[22]	杨秀荣, 田涛, 孙淑琴, 等. GFP标记生防细菌B579及其定殖能力检测[J]. 植物病理学报, 2013, 43(1):82-87.
[23]	YANG X X, HUANG X Q, Wu W X, et al. Effects of different rotation patterns on the occurrence of clubroot disease and diversity of rhizosphere microbes[J]. Journal of integrative agriculture, 2020, 19(2):2265-2273. doi: 10.1016/S2095-3119(20)63186-0 URL
[24]	杨潇湘, 张蕾, 黄小琴, 等. 基于高通量测序分析大豆和油菜根际微生物群落结构的差异[J]. 应用生态学报, 2019, 30(7):2345-2351.
[25]	张蕾, 唐林, 黄小琴, 等. 大豆作为前作植物对油菜根肿病发生的影响[J]. 中国油料作物学报, 2020, 42(3):480-485.
