Nowcasting Indicators of Hail Weather Environmental Parameters and Radar Echo in the North of Guanzhong Region

doi:10.11924/j.issn.1000-6850.casb2022-0361

Abstract

Abstract:

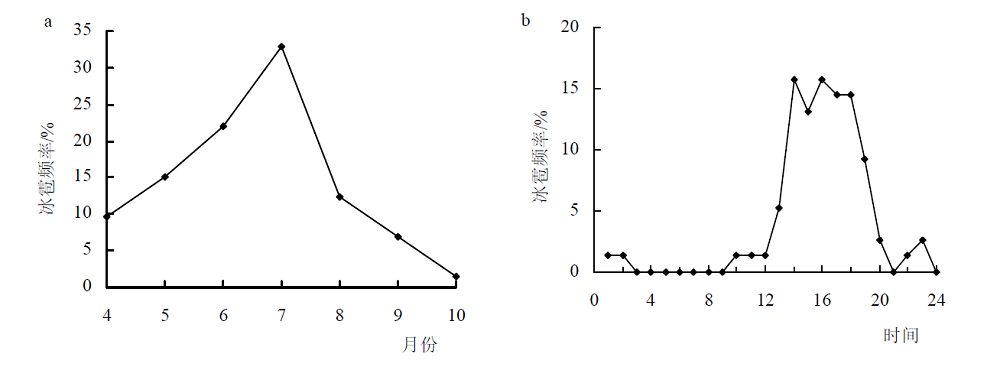

To improve the local hail forecast and natural disaster prevention, based on data from surface meteorological observation, sounding station and dual polarization radar, hail incidents in the north of Guanzhong region from 2011 to 2020 were analyzed. The nowcasting indicators of hail weather environment parameters and radar identification characteristics were summarized. The results showed that hail mainly occurred from May to August in the north of Guanzhong and mostly in June and July. Hailstorm had obvious diurnal variation characteristics, the main stage was 14:00 to 18:00. The warning indexes of unstable conditions for hail were K index≥ 25.0℃, temperature difference between 850 hPa and 500 hPa≥25.3℃, and Schaefer index≤-1.1℃. The warning index of energy condition was convective effective potential energy≥562 J/kg. The warning index of water vapor condition was temperature dew-point difference ≥9.0℃. The early-warning index of vertical wind shear was deep wind vertical shear in 0-6 km≥7.3 m/s or shallow wind vertical shear in 0-3 km≥4.3 m/s. The height warning indexes of special layer were between 3.4-4.0 km for 0℃ layer and 7.2-8.1 km for -20℃ layer, respectively. The identification characteristics of dual-polarization radar were echo intensity equal to or more than 53 dBz, echo top height was more than 10 km, strong echo overhanging height was more than 1.8 km, and three-body scattering spike with length was more than 5.2 km. There was convergence in the lower layer of the velocity field, and the convergence intensity was more than 10.5 m/s. The maximum VIL was more than 15 kg/m², the VIL increment was ≥10 kg/m², and the VIL density was ≥ 2.6 g/m³. Polarization parameters such as differential reflectivity factor, differential propagation phase shift factor and zero delay correlation coefficient also had good indication significance for the recognition of hail. The forecast accuracy of the indicators was high, but there were certain empty predictions.

Key words: hail, sounding data, physical quantity, echo characteristics, nowcasting indicators

LIU Fan, GAO Meng, WANG Jinting, LIU Jun, QIAO Danyang, XIE Yiwen. Nowcasting Indicators of Hail Weather Environmental Parameters and Radar Echo in the North of Guanzhong Region[J]. Chinese Agricultural Science Bulletin, 2023, 39(11): 98-107.

Figures/Tables 11

References 35

[1]	李耀东, 刘健文, 高守亭. 动力和能量参数在强对流天气预报中的应用研究[J]. 气象学报, 2004, 62(4):401-409.
[2]	郝莹, 姚叶青, 陈焱, 等. 基于对流参数的雷暴潜势预报研究[J]. 气象, 2007, 33(1):51-56.
[3]	宋强, 王基鑫, 傅朝, 等. 甘肃一次冰雹过程降水及闪电活动特征[J]. 干旱气象, 2019, 37(3):400-408.
[4]	崔丽曼, 苏爱芳, 张宇星, 等. 2016年河南省一次大范围强对流天气成因分析[J]. 气象与环境学报, 2020, 36(2):9-19.
[5]	王迪, 牛淑贞, 曾明剑, 等. 河南省分类强对流环境物理条件特征分析[J]. 气象, 2020, 46(5):618-628.
[6]	高晓梅, 俞小鼎, 王令军, 等. 鲁中地区分类强对流天气环境参量特征分析[J]. 气象学报, 2018, 76(2):196-212.
[7]	刘飞, 肖鹏, 黄宁立, 等. 上海地区两次强对流天气过程灾害成因及预警研究[J]. 气象与环境学报, 2017, 33(2):28-36.
[8]	袁慧敏. 利用探空资料确定呼和浩特地区3类强对流天气预警阈值[J]. 气象科技, 2019, 47(3):476-485.
[9]	董春卿, 武永利, 郭媛媛, 等. 山西强对流天气分类指标与判据的应用[J]. 干旱气象, 2021, 39(2):345-355.
[10]	刘帆, 高萌, 王瑾婷, 等. 咸阳三类强对流天气环境物理量指标研究[J]. 陕西气象, 2022(3):9-15.
[11]	周明薇, 王道平, 罗龙友, 等. 基于闪电定位和雷达资料的邵阳地区雷电预报预警研究[J]. 气象与环境学报, 2021, 37(3):117-124.
[12]	赵俊荣. 天山北坡一次致灾冰雹的多普勒雷达回波特征分析[J]. 气象与环境学报, 2010, 26(3):14-18.
[13]	俞小鼎. 强对流天气的多普勒天气雷达探测和预警[J]. 气象科技进展, 2011, 1(3):31-34.
[14]	吴剑坤, 俞小鼎. 强冰雹天气的多普勒天气雷达探测与预警技术综述[J]. 干旱气象, 2009, 27(3):197-206.
[15]	姚静, 屈丽玮, 朱庆亮, 等. 陕西省强对流天气气候特征分析与对流指标探讨[J]. 陕西气象, 2017(3):29-35.
[16]	梁轶, 王景红, 邸永强, 等. 陕西苹果果区冰雹灾害分布特征及风险区划[J]. 灾害学, 2015, 30(1):135-140.
[17]	岳治国, 梁谷. 陕西渭北一次降雹过程的粒子谱特征分析[J]. 高原气象, 2018, 37(6):1716-1724. doi: 10.7522/j.issn.1000-0534.2018.00023
[18]	刘帆, 高萌, 王瑾婷. 不同波段雷达在咸阳冰雹过程中的应用分析[J]. 陕西气象, 2021(2):9-16.
[19]	SELIGE T A, BRINGI V N. Potential use of radar differential reflectivity measurements at orthogonal polarizations for measuring precipitation[J]. Journal applied meteorology, 1976, 15:69-76. doi: 10.1175/1520-0450(1976)015<0069:PUORDR>2.0.CO;2 URL
[20]	BRINGI V N, SELIGE T A, CHERRY S M. Statistical properties of the dual-polarizations differential reflectivity (ZDR) radar signal[J]. IEEE Transactions on geoscience and remote sensing, 1983, 21(2):215-220.
[21]	张培昌, 魏明, 黄兴友, 等. 双线偏振多普勒雷达探测原理及应用[M]. 北京: 气象出版社, 2018:170-171.
[22]	冯晋勤, 张深寿, 吴陈锋, 等. 双偏振雷达产品在福建强对流天气过程中的应用分析[J]. 气象, 2018, 44(12):1565-1574.
[23]	俞小鼎, 姚秀萍, 熊廷南, 等. 多普勒天气雷达原理与业务应用[M]. 北京: 气象出版社, 2006:145.
[24]	樊李苗, 俞小鼎. 中国短时强对流天气的若干环境参数特征分析[J]. 高原气象, 2013, 32(1):156-165. doi: 10.7522/j.issn.1000-0534.2012.00016
[25]	王若升, 张彤, 樊晓春, 等. 甘肃平凉地区冰雹天气的气候特征和雷达回波分析[J]. 干旱气象, 2013, 31(2):373-377.
[26]	王令, 郑国光, 康玉霞, 等. 多普勒天气雷达径向速度图上的雹云特征[J]. 应用气象学报, 2006, 17(3):281-287.
[27]	康玉霞, 王令, 刘丰, 等. 北京市区雷达探测冰雹云分析[J]. 北京气象学院学报, 2002(2):46-50.
[28]	AMBURN S A, WOLF P L. VIL density as a hail indicator[J]. Weather and forecasting, 1997, 12(3):473-478. doi: 10.1175/1520-0434(1997)012<0473:VDAAHI>2.0.CO;2 URL
[29]	支竣, 陈春艳, 毛炜峄. 新疆喀什西部新一代天气雷达产品的冰雹预警指标研究[J]. 冰川冻土, 2014, 36(1):95-105.
[30]	张鸿发, 郄秀书, 王致君. 偏振雷达观测强对流雹暴云[J]. 大气科学, 2001, 1(25):38-48.
[31]	曹俊武, 刘黎平. 双线偏振雷达判别降水粒子类型技术及其检验[J]. 高原气象, 2007, 26(1):116-126.
[32]	刘帆, 高萌, 谢逸雯, 等. 陕西关中地区一次突发性暴雨的雷达回波特征分析[J]. 沙漠与绿洲气象, 2019, 13(2):48-54.
[33]	程鹏, 罗汉, 陈佩璇, 等. 庆阳黄土高原短时强降水统计特征及预警指标[J]. 干旱气象, 2020, 38(2):319-328.
[34]	樊志超, 高继林, 王治平, 等. 湘西北山区夏季冰雹云多普勒雷达定量判别指标[J]. 气象, 2006, 32(12):50-55.
[35]	渠永兴, 马玉萍. 甘肃省冰雹云雷达预警指标与作业方法研究[J]. 干旱区资源与环境, 2005, 19(5):122-125.

参数	中位数	平均值	预警指标
参数	中位数	平均值	暖季	4月	5月	6月	7月	8月	9月
K/℃	29	28.3	≥25.0	≥26.0	≥25.3	≥22.0	≥25.0	≥34.3	≥26.3
ΔT₈₅/℃	28	27.5	≥25.3	≥27.0	≥27.4	≥24.7	≥26.0	≥25.7	≥25.9
SI/℃	0.3	0.7	≤-1.1	≤2.0	≤0.2	≤-0.8	≤-1.1	≤-1.4	≤-0.8
CAPE/(J/kg)	1117	1123.9	≥562.0	≥263.5	≥179.5	≥601.3	≥907.3	≥727.5	≥671.3
(T-T_d)₈₅₀/℃	9	9.2	≤6.0	≤5.0	≤8.0	≤7.0	≤5.0	≤2.8	≤6.0
(T-T_d)₅₀₀/℃	17	18.5	≥9.0	≥8.0	≥11.7	≥12.0	≥7.0	≥9.0	≥21.9
VWS/(m/s)	9.9	11.2	≥7.3	≥9.4	≥9.4	≥7.1	≥5.8	≥7.7	≥16.0
VWS’/(m/s)	6	6.4	≥4.3	≥4.6	≥4.9	≥3.4	≥4.4	≥3.5	≥3.3
WBZ/km	3.8	3.8	3.4~4.0	3.0~3.1	3.1~3.4	3.5~3.9	3.8~4.3	3.9~4.6	3.2~3.7
H_-20/km	7.6	7.6	7.2~8.1	6.3~7.0	6.7~7.2	7.3~7.8	7.6~8.2	7.5~8.6	7.2~7.8

参数	中位数	平均值	预警指标
参数	中位数	平均值	暖季	4月	5月	6月	7月	8月	9月
K/℃	29	28.3	≥25.0	≥26.0	≥25.3	≥22.0	≥25.0	≥34.3	≥26.3
ΔT₈₅/℃	28	27.5	≥25.3	≥27.0	≥27.4	≥24.7	≥26.0	≥25.7	≥25.9
SI/℃	0.3	0.7	≤-1.1	≤2.0	≤0.2	≤-0.8	≤-1.1	≤-1.4	≤-0.8
CAPE/(J/kg)	1117	1123.9	≥562.0	≥263.5	≥179.5	≥601.3	≥907.3	≥727.5	≥671.3
(T-T_d)₈₅₀/℃	9	9.2	≤6.0	≤5.0	≤8.0	≤7.0	≤5.0	≤2.8	≤6.0
(T-T_d)₅₀₀/℃	17	18.5	≥9.0	≥8.0	≥11.7	≥12.0	≥7.0	≥9.0	≥21.9
VWS/(m/s)	9.9	11.2	≥7.3	≥9.4	≥9.4	≥7.1	≥5.8	≥7.7	≥16.0
VWS’/(m/s)	6	6.4	≥4.3	≥4.6	≥4.9	≥3.4	≥4.4	≥3.5	≥3.3
WBZ/km	3.8	3.8	3.4~4.0	3.0~3.1	3.1~3.4	3.5~3.9	3.8~4.3	3.9~4.6	3.2~3.7
H_-20/km	7.6	7.6	7.2~8.1	6.3~7.0	6.7~7.2	7.3~7.8	7.6~8.2	7.5~8.6	7.2~7.8

常规雷达参量							偏振参量
CR最大值/ dBZ	悬垂回波高度/km	TBSS长度/ km	低层风辐合强度/(m/s)	ET/ km	ΔVIL/ (kg/m²)	VIL_max/ (kg/m²)	VILD/ (g/m³)	ZDR/ dBz	KDP/ (°/km)
≥53	≥1.8	≥5.2	≥10.5	≥10	≥10	≥15	≥2.6	≤1	≤1

常规雷达参量							偏振参量
CR最大值/ dBZ	悬垂回波高度/km	TBSS长度/ km	低层风辐合强度/(m/s)	ET/ km	ΔVIL/ (kg/m²)	VIL_max/ (kg/m²)	VILD/ (g/m³)	ZDR/ dBz	KDP/ (°/km)
≥53	≥1.8	≥5.2	≥10.5	≥10	≥10	≥15	≥2.6	≤1	≤1

	暖季环境参量预警指标	分月环境参量预警指标	双偏振雷达预警指标
PC	82.6	87.0	73.1
POD	66.7	66.7	100.0
FAR	33.3	20.0	53.8
MAR	33.3	33.3	0
