明胶/PVA类肥料包膜材料的制备与环保性能研究

doi:10.11924/j.issn.1000-6850.casb2021-0095

中国农学通报 ›› 2021, Vol. 37 ›› Issue (14): 90-96.doi: 10.11924/j.issn.1000-6850.casb2021-0095

所属专题：资源与环境

• 资源·环境·生态·土壤·气象 • 上一篇下一篇

明胶/PVA类肥料包膜材料的制备与环保性能研究

刘颖(), 魏敏(), 杨平华, 耿丹丹

四川省农业科学院生物技术核技术研究所,成都 610066

收稿日期:2021-01-26 修回日期:2021-03-24 出版日期:2021-05-15 发布日期:2021-05-19
通讯作者: 魏敏
作者简介:刘颖,女,1986年出生,四川遂宁人,助理研究员,硕士,主要从事辐照技术研究与农化产品开发。通信地址:610061 四川成都锦江区狮子山路106号四川省农业科学院生物技术核枝术研究所,Tel:028-84504607,E-mail: yew1100@sina.com。
基金资助:
四川省财政创新能力提升工程“辐照聚合保水型肥料包膜材料的研制及应用”(2016GYSH-001)

Preparation and Environmental Protection Performance of Gelatin/PVA Coating Materials of Fertilizers

Liu Ying(), Wei Min(), Yang Pinghua, Geng Dandan

Biotechnology and Nuclear Technology Research Institute, Sichuan Academy of Agricultural Sciences, Chengdu 610066

Received:2021-01-26 Revised:2021-03-24 Online:2021-05-15 Published:2021-05-19
Contact: Wei Min

摘要/Abstract

摘要：

具有较好环保性能的包膜材料用于缓控释肥生产,可防止膜材料对土壤造成的潜在危害。本文以明胶、聚乙烯醇为原料复合共混制备膜材料,利用红外光谱(FTIR),扫描电镜(SEM)表征材料结构,并研究了膜材料拉伸强度和断裂伸张率力学性能,受控堆肥条件下的生物降解行为,明胶/PVA复合材料包膜尿素的养分缓释性及对小鼠的急性经口毒性。结果表明:当复合膜材料配比为m_(PVA):m_(Gel)=4:1时,组分相容性最好,并表现出良好力学性能、养分缓释性能和生物降解性能,复合材料包膜的肥料对小鼠无毒性作用,具有较好安全性。因此明胶/PVA复合膜材料具有较好的环保性能,其作为缓控释肥料的包膜材料具有较好应用前景。

关键词: 包膜肥料, 明胶, 聚乙烯醇, 包膜材料, 缓控释肥, 环保性, 生物降解

Abstract:

Environmentally friendly resin has been used as coating materials in manufacturing controlled/slow release fertilizers to prevent the potential damage of resin to soil. The coating materials with various mass ration of gelatin/PVA were obtained by solution blending. The chemical structures of the materials were investigated by FTIR and SEM, the tensile strength, breaking extension and nutrient release rate were measured. Moreover, the biodegradation behaviors of the materials under controlled composting conditions and the acute oral toxicity in mice were studied. The results showed that an optimal compatibility could be achieved when the mass ratio of PVA to gelatin was 4 to 1. The coating materials had good mechanical properties, biodegradability and sustained release properties. The materials were actually non-toxic to mice and had relatively good safety. In general, gelatin/PVA coating materials of fertilizers have good environmental protection performance and application prospect.

Key words: Coated fertilizer, Gelatin, PVA, coating materials, controlled/slow release fertilizers, environmental protection performance, biodegradation

中图分类号:

S143.1

刘颖, 魏敏, 杨平华, 耿丹丹. 明胶/PVA类肥料包膜材料的制备与环保性能研究[J]. 中国农学通报, 2021, 37(14): 90-96.

Liu Ying, Wei Min, Yang Pinghua, Geng Dandan. Preparation and Environmental Protection Performance of Gelatin/PVA Coating Materials of Fertilizers[J]. Chinese Agricultural Science Bulletin, 2021, 37(14): 90-96.

图/表 9

图1. 复合膜材料配比液静置4 h后的照片

图2. 复合膜材料的断面SEM图[m(PVA):m(Gel)=4:1]

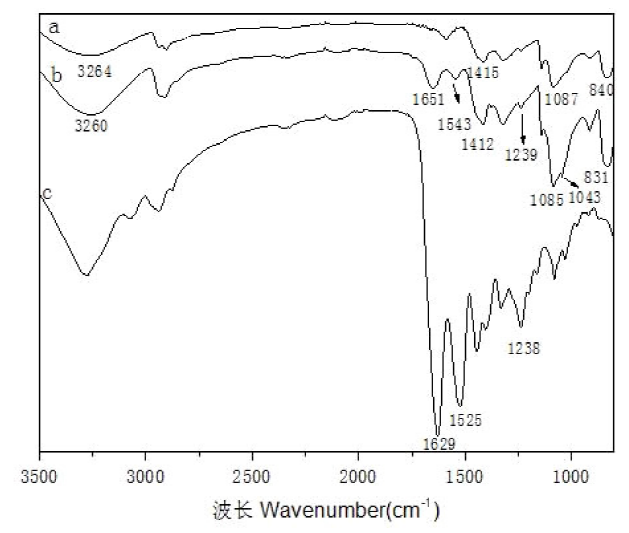

图3. PVA、复合膜材料及明胶的红外光谱图（a:PVA;b:复合膜材料,c:明胶）

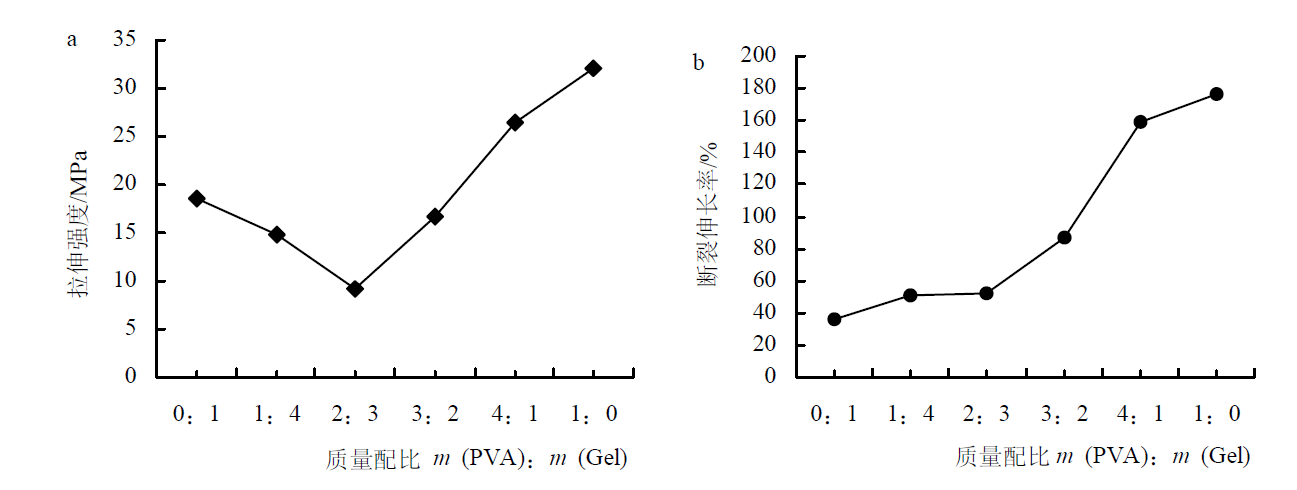

图4. PVA含量对复合膜断裂伸长率、拉伸强度的影响

样品	外观	干固体含量/%	水份含量/%	干固体中总有机碳含量/%	理论二氧化碳放量/(CO₂ g/100 g)
复合膜材料	粉末	94.74	5.26	51.51	188.87
纤维素	粉末	99.89	0.11	44.42	162.87

表1. 材料的基本特性

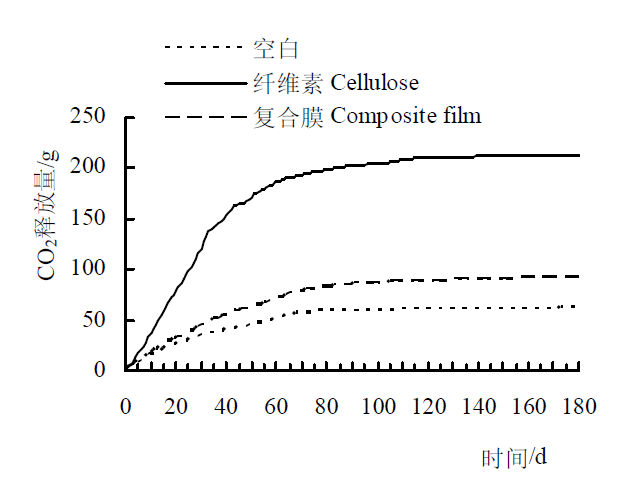

图5. 受控堆肥条件下复合膜和纤维素的CO2释放曲线

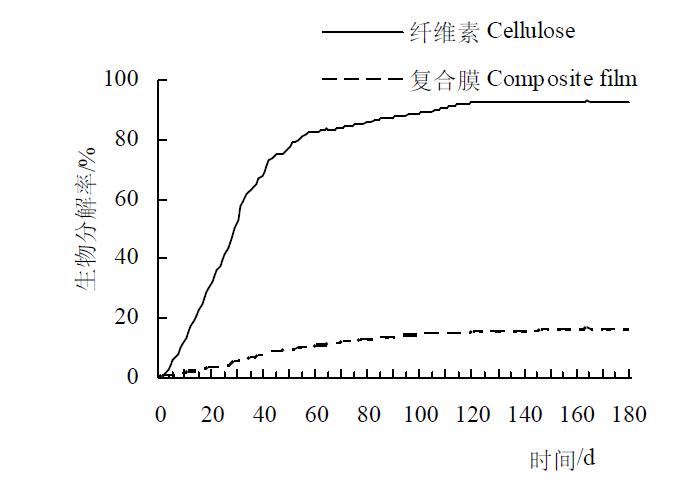

图6. 受控堆肥条件下复合膜和纤维素的生物分解曲线

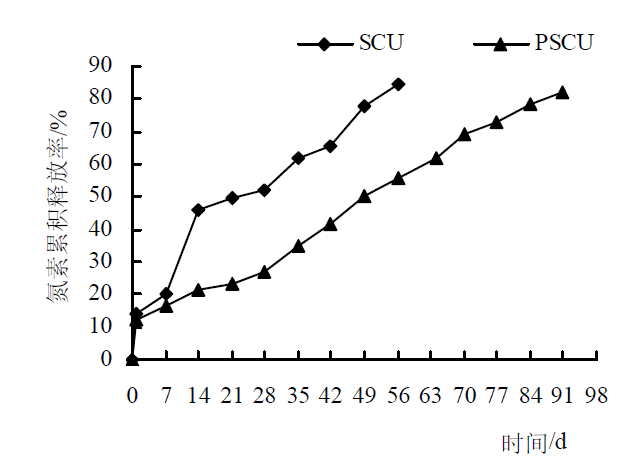

图7. SCU和PSCU氮素释放特性曲线

剂量/[mg/(kg·bw)	性别	数量/只	初质/g	终质量/g	死亡数/只	器脏病变数/只
5000	雌性	10	22.6±1.0	29.8±1.0	0	0
5000	雄性	10	23.8±1.3	37.6±2.7	0	0

表2. PSCU对小鼠的急性经口毒性

参考文献 28

[1]	Wei H L, Wang H, Chu H J, et al. Preparation and characterization of slow-release and water-retention fertilizer based on starch and halloysite[J]. International Journal of Biological Macromolecules, 2019,133(15):1210-1218. doi: 10.1016/j.ijbiomac.2019.04.183 URL
[2]	陈姣. 淀粉基缓控释肥料的制备及其性能研究[D]. 兰州:兰州大学, 2018: 18-31.
[3]	Naz M Y, Sulaiman S A. Surface morphology and dissolution rate of slow discharge urea coated with starch-urea-borax matrix[J]. Polymer Plastics Technology and Engineering. 2014,53(17):1778-1787. doi: 10.1080/03602559.2014.919657 URL
[4]	Sayed M L, Hossein H S, Ghorban N, et al. Synjournal and characterization of a novel controlled release nitrogen-phosphorus fertilizer hybrid nanocomposite based on banana peel cellulose and layered double hydroxides nanosheets[J]. Arabian Journal of Chemistry, 2020,12(9):6977-6985.
[5]	Yang Y, Tong Z, Geng Y, et al. Biobased polymer composites derived from corn stover and feather meals as double-coating materials for controlled-release and water-retention urea fertilizers[J]. Journal of agricultural & food chemisitry, 2013,61(34):8165-8174.
[6]	Wang Y, Tong Z, Geng Y, et al. Biomass-based multifunctional fertilizer system featuring controlled-release nutrient, water-retention and amelioration of soil[J]. Rsc adeances, 2014,4(35):18382-18390.
[7]	Taha E A, Omar L, Abdellatif E M, et al. Sustainable coating material based on chitosan-clay composite and paraffin wax for slow-release DAP fertilizer[J]. International Journal of Biological Macromolecules, 2020,161(15):492-502. doi: 10.1016/j.ijbiomac.2020.06.074 URL
[8]	黄暄暄, 马海红, 孙畅, 等. 改性酰化壳聚糖缓释肥包膜材料的制备与表征[J]. 高分子材料与工程, 2016,32(6):133-137.
[9]	徐久凯, 李絮花, 杨相东, 等. 聚烯烃包膜控释肥膜层孔径测定方法研究[J]. 植物营养与肥料学报, 2016,22(3):794-801.
[10]	杨相东, 李娟, 孙明雪, 等. 聚乙烯包膜肥料控释膜层结构特征研究[J]. 植物营养与肥料学报, 2019,25(12):2032-2043.
[11]	Wei Y, Li J, Li Y T, et al. Research on permeability coefficient of a polyethylene controlled release film coating for urea and relevant nutrient release pathways[J]. Polymer testing, 2017,59:90-98. doi: 10.1016/j.polymertesting.2017.01.019 URL
[12]	宋学君, 张旭东, 石元亮. 肥料用聚苯乙烯包覆膜的制备及其性能研究[J]. 中国塑料, 2010(6):82-85.
[13]	吴培熙, 张留城. 聚合物共混改性[M]. 北京: 中国轻工业出版社, 1996.
[14]	汤克勇. 胶原物理与化学[M]. 北京: 科学出版社, 2011.
[15]	张尚文, 韩丹丹, 汪鑫, 等. 聚乙烯醇-羧甲基壳聚糖复合水凝胶药物缓释体系的制备及评价[J]. 化工新型材料, 2020,48(6):273-277.
[16]	Muhammad A A, Sri A, Sultan I, et al. Composite gelatin/Rhizophora SPP particleboards/PVA for soft tissue phantom applications[J]. Radiation Physics and Chemistry, 2020,173:108878 doi: 10.1016/j.radphyschem.2020.108878 URL
[17]	Amir S, Zahra A, Homa A, et al. Fabrication and evaluation of chitosan/gelatin/PVA hydrogel incorporating honey for wound healing applications: An in vitro, in vivo study[J]. International Journal of pharmaceutics, 2021,592(5):120068. doi: 10.1016/j.ijpharm.2020.120068 URL
[18]	周建军. 流化床制备包衣尿素微球的工艺研究[D]. 河南:郑州大学, 2019: 13-66.
[19]	王碧, 李建凤, 邱艳. 明胶-聚乙烯醇-羧甲基纤维素三元复合肥料缓释膜及其性能研究[J]. 皮革科学与工程, 2011,21(5):18-24.
[20]	Indumathi S, Murugesan B B. Physical characterization of chitosan/gelatin-alginate composite beads for controlled release of urea[J]. Heliyon, 2020,6:e05495. doi: 10.1016/j.heliyon.2020.e05495 URL
[21]	Katarzyna M, Grzegorz L, Dawid S, et al. Controlled release micronutrient fertilizers for precision agriculture - A review[J]. Science of The Total Environmen, 2020,172:136365.
[22]	Mendiet T O, Sobral P J A, Carvalho R A , et al. Thermomechanical properties of biodegradable films based on blends of gelatin and poly(vinyl alcohol)[J]. Food Hydrocolloids, 2008,22:1485-1492. doi: 10.1016/j.foodhyd.2007.10.001 URL
[23]	Carvalho R A, Maria T M C, Moraes I C F , et al. Study of some physical properties of bildegradable films based on blends of gelatin and poly(viny alcohol) using a response-surface methodology[J]. Materials Science and Engineering C, 2009,29:485-491. doi: 10.1016/j.msec.2008.08.030 URL
[24]	高喜平, 刘捷, 汤克勇, 等. 明胶/聚乙烯醇共混复合膜的相容性[J]. 高分子材料科学与工程, 2013,7(29):105-109.
[25]	Mao J S, Zhao L G, Yin Y J, et al. Structure and properties of bilayer chitosan-gelatin scaffolds[J]. Biomaterials, 2003,24:1067-1074. doi: 10.1016/S0142-9612(02)00442-8 URL
[26]	Paleckiene R, Grazuleviciene V, Cesoniene L, et al. Bildegradable polymer composites as coating materials for granular fertilizers[J]. Journal of polymers & the Environment, 2018,26(2):133-127.
[27]	Friedman S P, Mualem Y. Diffusion of fertilizer from controlled release sources uniformly distributed in soil[J]. Fertilizer Research, 1994,39(1):19-30. doi: 10.1007/BF00750153 URL
[28]	刘勇, 王碧. 可生物降解的明胶肥料包膜材料的制备与结构表征[J]. 皮革科学与工程, 2010(5):24-27.
