Regulation of Maize Starch: Research Progress

doi:10.11924/j.issn.1000-6850.casb2021-0133

Abstract

Abstract:

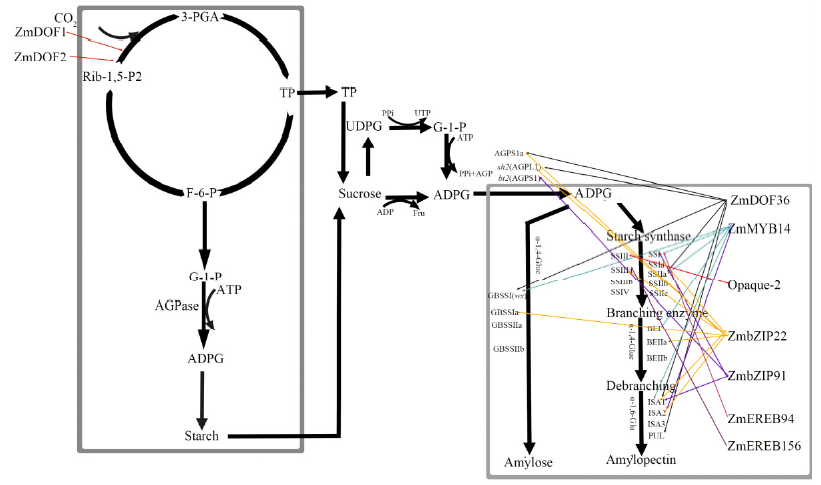

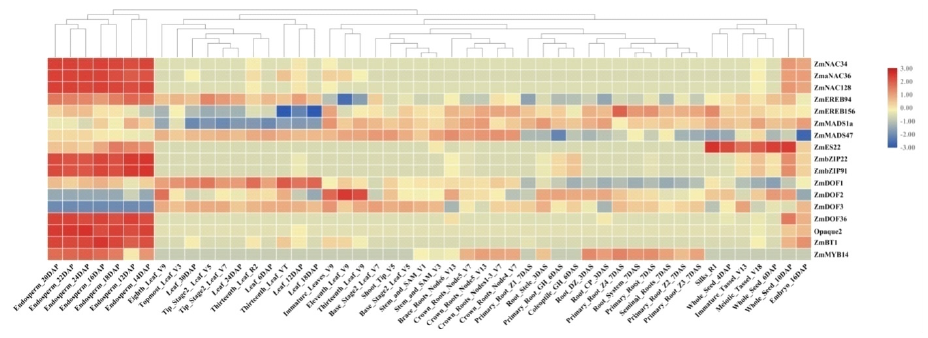

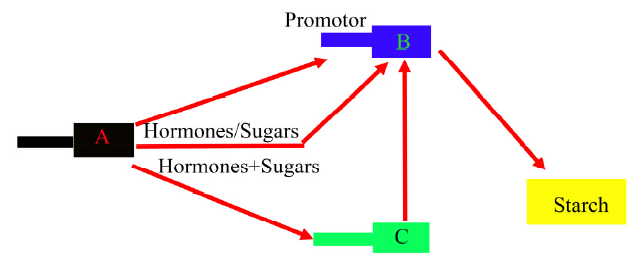

To well understand the function of key enzymes and regulatory mechanism in starch synthesis, we reviewed the starch structure, starch synthesis process, expression profiles and functional mechanism of transcription factors for starch synthesis, including DOF family, NAC family, MYB family, bZIP family, MADS-BOX and AP2/EREB family. Researches show that most of the transcription factors are expressed in maize endosperm, and a few are expressed in maize leaves. Furthermore, these transcription factors could regulate starch synthesis by binding to the promoters of starch syntheses encoding genes and key regulatory genes to affect their expression. In addition, sucrose/ABA and sucrose/IAA with transcription factors also coordinately regulate the starch synthesis. Collectively, this research will not only enrich the knowledge of the regulating mechanism in maize starch synthesis, but also supply reference for breeding new maize varieties.

Key words: maize, starch, biosynthesis, expression, function

CLC Number:

S330

Du Ming, Fang Yu, Li Qianlong, Kang Yunhai, Wang Hui, Zhang Conghe. Regulation of Maize Starch: Research Progress[J]. Chinese Agricultural Science Bulletin, 2021, 37(33): 8-14.

Figures/Tables 3

References 55

[1]	马先红, 李峰, 宋荣琦. 玉米的品质特性及综合利用研究进展[J]. 粮食与油脂, 2019, 32(1):1-3.
[2]	马先红, 张文露, 张铭鉴. 玉米淀粉的研究现状[J]. 粮食与油脂, 2019, 32(2):4-6.
[3]	左振朋, 田凤龙, 姜朋, 等. 六个不同产量玉米品种籽粒淀粉积累及相关酶活性的比较[J]. 作物学报, 2011, 37(3):529-536.
[4]	Zhang T F, Bo L I, Zhang D F, et al. Genome-Wide Transcriptional Analysis of Yield and Heterosis-Associated Genes in Maize (Zea mays L.)[J]. Journal of Integrative Agriculture, 2012, 11(8).
[5]	Grimault A, Gendrot G, Chamot S, et al. ZmZHOUPI, an endosperm-specific basic helix-loop-helix transcription factor involved in maize seed development[J]. The Plant journal: for cell and molecular biology, 2015, 84(3).
[6]	Sun C, Palmqvist S, Olsson H, et al. A Novel WRKY Transcription Factor, SUSIBA2, Participates in Sugar Signaling in Barley by Binding to the Sugar-Responsive Elements of the iso1 Promoter[J]. The Plant Cell, 2003, 15(9).
[7]	Barbara P, Samuel C Z. Formation of starch in plant cells[J]. Cellular and Molecular Life Sciences, 2016, 73(14).
[8]	Kubo A, Colleoni C, Dinges J R, et al. Functions of Heteromeric and Homomeric Isoamylase-Type Starch-Debranching Enzymes in Developing Maize Endosperm1[W][OA][J]. Plant Physiology, 2010, 153(3).
[9]	Whitt S R, Wilson L M, Tenaillon M I, et al. Genetic Diversity and Selection in the Maize Starch Pathway[J]. Proceedings of the National Academy of Sciences of the United States of America, 2002, 99(20):12959-12962.
[10]	Yoshida H, Nozaki K, Hanashiro I, et al. Structure and physicochemical properties of starches from kidney bean seeds at immature, premature and mature stages of development[J]. Carbohydrate Research, 2003, 338(5):463-469. doi: 10.1016/S0008-6215(02)00489-5 URL
[11]	Tako M, Hizukuri S. Retrogradation Mechanism of Rice Starch[J]. Cereal Chemistry, 2000, 77(4):473-477. doi: 10.1094/CCHEM.2000.77.4.473 URL
[12]	Tester R F, Karkalas J, Qi X. Starch-Composition, fine structure and architecture[J]. Journal of Cereal ence, 2004, 39(2):151-165.
[13]	Xiong Y, Bartle S J, Preston R L. Improved enzymatic method to measure processing effects and starch availability in sorghum grain[J]. Journal of Animal ence, 1990, 68(11):3861.
[14]	Smith, Alison M. The biosynjournal of starch granules[J]. Biomacromolecules, 2001, 2(2):335-341. pmid: 11749190
[15]	Kim K N, Fisher D K, Gao M, et al. Genomic organization and promoter activity of the maize starch branching enzyme I gene[J]. Gene, 1998, 216(2):233-243. pmid: 9729405
[16]	Smith, Alison M. The biosynjournal of starch granules[J]. Biomacromolecules, 2001, 2(2):335-341. pmid: 11749190
[17]	彭佶松, 郑志仁, 刘涤, 等. 淀粉的生物合成及其关键酶[J]. 植物生理学报, 1997, 33(4):297-303.
[18]	李瑞清, 谭瑗瑗, 闫影, 等. 水稻胚乳淀粉合成及其育种应用[J]. 核农学报, 2019, 33(9):1742-1748.
[19]	Yan H, Jiang H, Pan X, et al. The gene encoding starch synthase IIc exists in maize and wheat[J]. Plant Science, 2008, 176(1):51-57. doi: 10.1016/j.plantsci.2008.09.003 URL
[20]	Okita T W, Nakata P A, Anderson J M, et al. The Subunit Structure of Potato Tuber ADPglucose Pyrophosphorylase[J]. Plant Physiology, 1990, 93(2):785-790. pmid: 16667537
[21]	Dickinson D B, Preiss J. Presence of ADP-Glucose Pyrophosphorylase in Shrunken-2 and Brittle-2 Mutants of Maize Endosperm[J]. Plant Physiology, 1969, 44(7):1058-1062. pmid: 16657157
[22]	Hannah L C, Nelson O E. Characterization of ADP-glucose pyrophosphorylase from shrunken-2 and brittle-2 mutants of maize[J]. Biochemical Genetics, 1976, 14(7-8):547-560. pmid: 985379
[23]	Xu-Guang Z, Jun-Cang Q, Hong-Shan H, et al. Starch accumulation in hulless barley during grain filling[J]. Botanical studies, 2017, 58(1):30. doi: 10.1186/s40529-017-0184-8 pmid: 28710720
[24]	Veillet F, Chauvin L, Kermarrec M, et al. The Solanum tuberosum GBSSI gene: a target for assessing gene and base editing in tetraploid potato[J]. Plant Cell Reports, 2019, 38(9).
[25]	M N M, Christian R, Katarzyna K, et al. Crystal Structures of the C atalytic D omain of Arabidopsis thaliana Starch Synthase IV, of Granule Bound Starch Synthase From CLg1 and of Granule Bound Starch Synthase I of Cyanophora paradoxa Illustrate Substrate Recognition in Starch Synthases[J]. Frontiers in plant science, 2018, 9:1138. doi: 10.3389/fpls.2018.01138 URL
[26]	Huanhuan H, Sidi X, Qianlin X, et al. Sucrose and ABA regulate starch biosynjournal in maize through a novel transcription factor, ZmEREB156[J]. Scientific reports, 2016, 6:27590. doi: 10.1038/srep27590 pmid: 27282997
[27]	王伟, 王明春, 任洪, 等. 玉米o2、o16和wx基因不同组合类型近等基因系品质分析[J]. 种子, 2019, 38(4):31-35.
[28]	Masaru N, Tomomi M, Rieko K, et al. MutMapPlus identified novel mutant alleles of a rice starch branching enzyme IIb gene for fine-tuning of cooked rice texture[J]. Plant biotechnology journal, 2018, 16(1).
[29]	Yao Y, Thompson D B, Guiltinan M J. Maize Starch-Branching Enzyme Isoforms and Amylopectin Structure. In the Absence of Starch-Branching Enzyme IIb, the Further Absence of Starch-Branching Enzyme Ia Leads to Increased Branching[J]. Plant Physiology, 2004, 136(3):3515-3523. doi: 10.1104/pp.104.043315 URL
[30]	姚姝, 张亚东, 刘燕清, 等. Wx~(mp)基因背景下可溶性淀粉合成酶基因SSⅡa和去分支酶基因PUL对水稻蒸煮食味品质的影响[J]. 中国水稻科学, 2020, 34(3):217-227.
[31]	Beatty M K, Rahman A, Cao H, et al. Purification and Molecular Genetic Characterization of ZPU1, a Pullulanase-Type Starch-Debranching Enzyme from Maize[J]. Plant Physiology, 1999, 119(1).
[32]	Li G S, Wang D F, Ruolin Yang R L, et al. Temporal patterns of gene expression in developing maize endosperm identified through transcriptome sequencing[J]. Proceedings of the National Academy of Sciences of the United States of America, 2014, 111(21):7582-7587.
[33]	S Y, K I. Molecular cloning of two DNA-binding proteins of maize that are structurally different but interact with the same sequence motif[J]. The Journal of biological chemistry, 1993, 268(21).
[34]	Shuichi Y. Dof domain proteins: plant-specific transcription factors associated with diverse phenomena unique to plants[J]. Plant & cell physiology, 2004, 45(4):386-391.
[35]	Yanagisawa S, Schmidt R J. Diversity and similarity among recognition sequences of Dof transcription factors[J]. The Plant Journal, 1999, 17(2):209-214. doi: 10.1046/j.1365-313X.1999.00363.x URL
[36]	Wu J D, Chen L, Chen M C, et al. The DOF-Domain Transcription Factor ZmDOF36 Positively Regulates Starch Synjournal in Transgenic Maize[J]. Frontiers in plant science, 2019, 10:465-465. doi: 10.3389/fpls.2019.00465 URL
[37]	Yanagisawa S. Dof1 and Dof2 transcription factors are associated with expression of multiple genes involved in carbon metabolism in maize[J]. The Plant Journal, 2000, 21(3):281-288. doi: 10.1046/j.1365-313x.2000.00685.x URL
[38]	Qi X, Li S, Zhu Y, et al. ZmDof3, a maize endosperm-specific Dof protein gene, regulates starch accumulation and aleurone development in maize endosperm[J]. Plant Molecular Biology, 2017, 93(1-2).
[39]	Shen H, Yin Y, Chen F, et al. A Bioinformatic Analysis of NAC Genes for Plant Cell Wall Development in Relation to Lignocellulosic Bioenergy Production[J]. BioEnergy Research, 2009, 2(4):217. doi: 10.1007/s12155-009-9047-9 URL
[40]	Peng X J, Wang Q Q, Wang Y, et al. A maize NAC transcription factor, ZmNAC34, negatively regulates starch synjournal in rice[J]. Plant cell reports, 2019, 38(12):1473-1484. doi: 10.1007/s00299-019-02458-2 URL
[41]	Zhiyong Z, Jiaqiang D, Chen J, et al. NAC-type transcription factors regulate accumulation of starch and protein in maize seeds[J]. Proceedings of the National Academy of Sciences of the United States of America, 2019, 116(23):201904995.
[42]	Junjie Z, Jiang C, Qiang Y, et al. Novel role of ZmaNAC36 in co-expression of starch synthetic genes in maize endosperm[J]. Plant molecular biology, 2014, 84(3):359-369. pmid: 24235061
[43]	Dubos C, Stracke R, Grotewold E, et al. MYB transcription factors in Arabidopsis[J]. Trends in Plant ence, 2010, 15(10):573-581.
[44]	Shannon J C, Pien F M, Liu C K C. Brittle-1, an Adenylate Translocator, Facilitates Transfer of Extraplastidial Synthesized ADP-Glucose into Amyloplasts of Maize Endosperms[J]. Plant Physiology, 1998, 117(4):1235-1252. pmid: 9701580
[45]	Qianlin X, Yayun W, Du Jia, et al. ZmMYB14 is an important transcription factor involved in the regulation of the activity of the ZmBT1 promoter in starch biosynjournal in maize[J]. The FEBS journal, 2017, 284(18).
[46]	胡育峰, 肖前林, 李炀平, 等. 胚乳过表达MYB14提高玉米淀粉含量: 2019年中国作物学会学术年会[C]. 中国浙江杭州, 2019.
[47]	Jakoby M, Weisshaar B, Drge-Laser W, et al. bZIP transcription factors in Arabidopsis[J]. Trends in Plant Science, 2002, 7(3):106-111. pmid: 11906833
[48]	Jiang C, Qiang Y, Yao C, et al. ZmbZIP91 regulates expression of starch synjournal-related genes by binding to ACTCAT elements in their promoters[J]. Journal of experimental botany, 2016, 67(5):1327-1338. doi: 10.1093/jxb/erv527 pmid: 26689855
[49]	Dong Q, Xu Q, Kong J, et al. Overexpression of ZmbZIP22 gene alters endosperm starch content and composition in maize and rice[J]. Plant Science, 2019, 283.
[50]	Deng Y, Wang J, Zhang Z, et al. Transactivation of Sus1 and Sus2 by Opaque2 is an essential supplement to sucrose synthase?\mediated endosperm filling in maize[J]. Plant Biotechnology Journal, 2020, 18(9).
[51]	Dong Q, Wang F, Kong J, et al. Functional analysis of ZmMADS1 a reveals its role in regulating starch biosynjournal in maize endosperm[J]. Scientific Reports, 2019, 9(1):3253. doi: 10.1038/s41598-019-39612-5 URL
[52]	Zha K, Xie H, Ge M, et al. Expression of Maize MADS Transcription Factor ZmES22 Negatively Modulates Starch Accumulation in Rice Endosperm[J]. International Journal of Molecular Sciences, 2019, 20(3).
[53]	Li H, Xiao Q, Zhang C, et al. Identification and characterization of transcription factor ZmEREB94 involved in starch synjournal in maize[J]. Journal of Plant Physiology, 2017, 216:11-6. doi: 10.1016/j.jplph.2017.04.016 URL
[54]	Feng F, Qi W, Lv Y, et al. OPAQUE11 Is a Central Hub of the Regulatory Network for Maize Endosperm Development and Nutrient Metabolism[J]. The Plant cell, 2018, 12(12):e0189760.
[55]	Chen J, Huang B Q, Li Y Y, et al. Synergistic influence of sucrose and abscisic acid on the genes involved in starch synjournal in maize endosperm-ScienceDirect[J]. Carbohydrate Research, 2011, 346(13):1684-1691. doi: 10.1016/j.carres.2011.05.003 URL
