Construction of LsE3 Gene Overexpression Vector and a New RNAi Vector by Seamless Cloning and Optimization of Genetic Transformation System of Leaf Lettuce

doi:10.11924/j.issn.1000-6850.casb2020-0345

Abstract

Abstract:

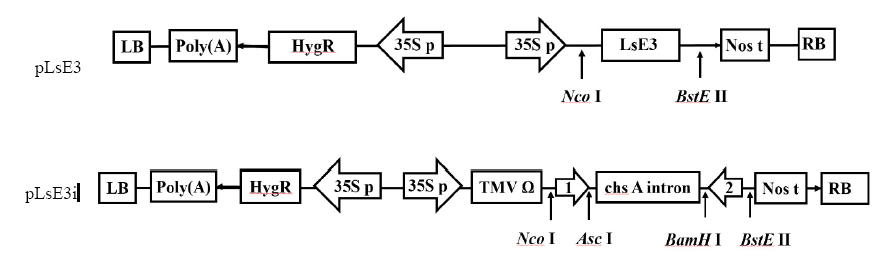

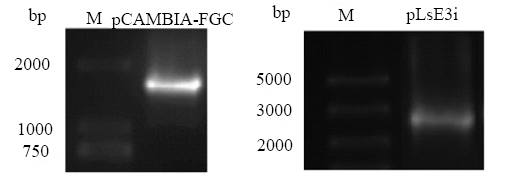

The aims of this study are to construct overexpression and silence vectors by using new technologies and new vectors, optimize the genetic transformation system, verify the function of LsE3 gene and explore the mechanism of high temperature bolting in lettuce. Using pCAMBIA1304 and pFGC5941 as materials, the transgenic vector of lettuce was constructed by seamless cloning, and the genetic transformation system was optimized by screening medium formula. Based on pCAMBIA1304, the dsRNA expression frame sequence derived from pFGC5941 was successfully inserted into pCAMBIA1304. The new RNAi empty vector pCAMBIA1304-pFGC5941 was obtained, LsE3 silencing vector was constructed. And LsE3 overexpression vector was successfully constructed by binary plasmid vector pCAMBIA1304. Hygromycin concentration, direct bud induction medium formula and rooting medium formula of easy bolting leaf lettuce variety ‘GB-31’ were screened in this experiment. The suitable concentration of hygromycin was determined to be 5 mg/L, and the optimal medium formula for bud induction and rooting was established. This experiment successfully obtained a new RNAi empty vector and transgenic vectors, and optimized the genetic transformation system, which provided a new idea for solving the complex problem of vector construction, and laid the foundation of lettuce transgenic technology.

Key words: leaf lettuce, high temperature bolting, ubiquitin ligase LsE3, silence vectors, vector construction, overexpression, RNAi, genetic transformation

CLC Number:

S636.2

Wang Tingzhen, Sun Yanchuan, Tang Wenkun, Fan Shuangxi, Hao Jinghong. Construction of LsE3 Gene Overexpression Vector and a New RNAi Vector by Seamless Cloning and Optimization of Genetic Transformation System of Leaf Lettuce[J]. Chinese Agricultural Science Bulletin, 2021, 37(11): 15-23.

Figures/Tables 10

References 50

[1]	Kim D E, Shang X, Assefa A D, et al. Metabolite profiling of green, green/red, and red lettuce cultivars: variation in health beneficial compounds and antioxidant potential[J]. Food Res Int, 2018,105:361-370. doi: 10.1016/j.foodres.2017.11.028 URL pmid: 29433225
[2]	Assefa A D, Choi S, Lee J E, et al. Identification and quantification of selected metabolites in differently pigmented leaves of lettuce (Lactuca sativa L.) cultivars harvested at mature and bolting stages[J]. BMC Chemistry, 2019,13(1):1-15. URL pmid: 31355363
[3]	Mou B Q. Mutations in Lettuce Improvement[J]. International Journal of Plant Genomics, 2011,2011:723518. doi: 10.1155/2011/723518 URL pmid: 22287955
[4]	孙燕川, 李盼盼, 肖爽, 等. 叶用莴苣LsE3基因克隆与表达分析[J]. 北京农学院学报, 2018,33(4):26-30.
[5]	Genschik P. RPN10: A Case Study for Ubiquitin Binding Proteins and More[J]. Plant Cell, 2019,31:1398-1399. doi: 10.1105/tpc.19.00365 URL pmid: 31076536
[6]	Zhu C M, Peng Q, Fu D B, et al. The E3 Ubiquitin Ligase HAF1 Modulates Circadian Accumulation of EARL Y FLOWERING3 to Control Heading Date in Rice under Long-Day Conditions[J]. The Plant Cell, 2018,30:2352-2367.
[7]	Vanhaeren H, Nam Y J, Milde L D, et al. Forever Young: The Role of Ubiquitin Receptor DA1 and E3 Ligase BIG BROTHER in Controlling Leaf Growth and Development[J]. Plant physiology, 2017,173:1269-1282. URL pmid: 28003326
[8]	Stone S L, Anderson E M, Mullen R T, et al. ARC1 is an E3 ubiquitin ligase and promotes the ubiquitination of proteins during the rejection of self-incompatible Brassica pollen[J]. Plant Cell, 2003,15:885-898. doi: 10.1105/tpc.009845 URL pmid: 12671085
[9]	杨东成, 蔡松, 赵筱, 等. 基于退火缓冲液的SLiCE无缝克隆方法的改良[J]. 生物技术通报, 2020,36(2):214-222.
[10]	Kerschen A, Napoli C A, Jorgensen R A, et al. Effectiveness of RNA interference in transgenic plants[J]. FEBS Letters, 2004,566(1/3):223-228.
[11]	宋梦如, 陈可钦, 郭运娜, 等. 一种用于植物基因沉默的新RNAi载体的构建[J]. 沈阳农业大学学报, 2017,48(6):719-724.
[12]	邓莹, 罗雯. 意大利生菜组织培养体系的建立[J]. 安徽农业科学, 2016,44(2):181-183.
[13]	李梅, 陆玉建, 边文静, 等. 三种生菜离体快繁的初步研究[J]. 湖北农业科学, 2018,57(6):111-115.
[14]	朱路英, 刘玲, 孟祥栋, 等. 叶用莴苣离体培养和植株再生[J]. 园艺学报, 2002,29(2):181-182.
[15]	李丹, 山红艳, 邵素清, 等. 美国叶用莴苣的组织培养与植株再生[J]. 植物生理学报, 2003,39(2):148-148.
[16]	李雅博. 叶用莴苣LsHsp70-2711基因VIGS效应分析及遗传转化[D]. 北京:北京农学院, 2017.
[17]	Armas I, Pogrebnyak N, Raskin I. A rapid and efficient in vitro regeneration system for lettuce (Lactuca sativa L.)[J]. Plant Methods, 2017,13(1):58.
[18]	赵吉强, 李霞, 李丽霞, 等. 生菜遗传转化受体系统的建立及鲑鱼降钙素基因的导入[J]. 烟台大学学报:自然科学与工程版, 2004,17(2):116-121.
[19]	朱春燕, 雷建军, 周浩, 等. 正交设计优化皱叶生菜离体再生体系[J]. 热带医学杂志, 2008,8(4):313-316.
[20]	孙占育, 孙志强, 曹斌. 活性炭在促进组培苗植物生根中的作用[J]. 湖南农业科学, 2010(4):3-5.
[21]	周长久. 现代蔬菜育种学[M]. 北京: 科学技术文献出版社, 1996.
[22]	Choi S R, Teakle G R, Plaha P, et al. The reference genetic linkage map for the multinational Brassica rapa genome sequencing project[J]. Theoretical and Applied Genetics, 2007,115(6):777-792. URL pmid: 17646962
[23]	王璐. 叶用莴苣LsSTPK和LsMAPK4基因的克隆与LsSTPK基因在抽薹中的功能分析[D]. 北京:北京农学院, 2019.
[24]	路文静. 植物生理学[M]. 北京: 中国林业出版社, 2011.
[25]	Zhu L, Liu D, Li Y, et al. Functional Phosphoproteomic Analysis Reveals That a Serine-62-Phosphorylated Isoform of Ethylene Response Factor110 Is Involved in Arabidopsis Bolting[J]. Plant Physiolgy, 2013,161(2):904-917.
[26]	黄敏通, 关佩聪. 内源细胞分裂素与菜心花芽分化和菜薹形成的关系[J]. 华南农业大学学报, 1993(03):87-91.
[27]	宋贤勇, 柳李旺, 龚义勤, 等. 春萝卜抽薹过程中内源激素含量变化分析[J]. 植物研究, 2007,27(2):182-185.
[28]	Bernier G. Physiological signals that induce flowering[J]. Plant Cell, 1993,5(10):1147-1155. doi: 10.1105/tpc.5.10.1147 URL pmid: 12271018
[29]	刘慧, 郝敬虹, 韩莹琰, 等. 高温诱导叶用莴苣抽薹过程中内源激素含量变化分析[J]. 中国农学通报, 2014,30(25):97-103.
[30]	Ariizumi T, Lawrence P K, Steber C M. The role of two f-box proteins, SLEEPY1 and SNEEZY, in Arabidopsis gibberellin signaling[J]. Plant Physiology, 2011,155(6):765-775.
[31]	Chapman E J, Estelle M. Mechanism of auxin-regulated gene expression in plants[J]. Annual Review of Genetics, 2009,43(1):265-285.
[32]	Maria Angeles Fernandez, Borja Belda-Palazon, Jose Julian, et al. RBR-Type E3 Ligases and the Ubiquitin-ConjugatingEnzyme UBC26 Regulate Abscisic Acid Receptor Levels and Signaling[J]. Plant Physiology, 2020,182:1723-1742. URL pmid: 31699847
[33]	Qiao H, Chang K N, Yazaki J, et al. Interplay between ethylene, ETP1/ETP2 F-box proteins, and degradation of EIN2 triggers ethylene responses in Arabidopsis[J]. Genes & Development, 2009,23(4):512-521. doi: 10.1101/gad.1765709 URL pmid: 19196655
[34]	Kim H J, Chiang Y H, Kieber J J, et al. SCFKMD controls cytokinin signaling by regulating the degradation of type-B response regulators[J]. Proceedings of the National Academy of Sciences of the United States of America, 2013,110(24):10028-10033. URL pmid: 23720308
[35]	Kim B, Yu J J, Corvalán C, et al. Darkness and gulliver2/phyB, mutation decrease the abundance of phosphorylated BZR1 to activate brassinosteroid signaling in Arabidopsis[J]. The Plant Journal, 2014,77(5):737-747. URL pmid: 24387668
[36]	Shin B, Choi G, Yi H, et al. AtMYB21, a gene encodinga flower-specific transcription factor, is regulated by COP1[J]. Plant J, 2002,30:23-32. doi: 10.1046/j.1365-313x.2002.01264.x URL pmid: 11967090
[37]	Xu X S, Paik I, Zhu L, et al. PHYTOCHROME INTERACTING FACTOR1 Enhances the E3Ligase Activity of CONSTITUTIVE PHOTOMORPHOGENIC1 to Synergistically Repress Photomorphogenesis in Arabidopsis[J]. The Plant Cel, 2014,26:1992-2006.
[38]	Martin Balcerowicz, Konstantin Kerner, Christian Schenkel, et al. SPA Proteins Affect the Subcellular Localization of COP1in the COP1/SPA Ubiquitin Ligase Complex during Photomorphogenesis[J]. Plant Physiology, 2017,174:1314-1321. doi: 10.1104/pp.17.00488 URL pmid: 28536102
[39]	Zhu Q K , Shao Y M, Ge S T, et al. A MAPK cascade downstream of IDA-HAE/HSL2 ligand-receptor pair in lateral root emergence[J]. nature plants, 2019,5:414-423. doi: 10.1038/s41477-019-0396-x URL pmid: 30936437
[40]	刘芳, 卢婷, 蔡梦迪, 等. Cas9蛋白的克隆表达、分离纯化及多克隆抗体制备[J]. 贵州医科大学学报, 2019,44(7):757-761,766.
[41]	赵兴彦, 卢凌霄, 董建军, 等. 无缝克隆方法构建玉米多基因表达载体[J]. 种子世界, 2018(7):109-110.
[42]	王敏敏, 赵婕, 常亚磊, 等. 双酶切和无缝克隆方法构建HCV CORE表达载体的比较[J]. 山西医药杂志, 2017,46(3):267-270.
[43]	刘权兴, 谭章平, 徐文岳, 等. 高效构建一种多片段插入的基因敲除重组质粒[J]. 中华临床医师杂志:电子版, 2013,7(16):7487-7492.
[44]	赵佳怡. 苹果MdMIF2基因的克隆与功能分析[D]. 沈阳:沈阳农业大学, 2019.
[45]	唐婷. CRISPR/Cas9基因编辑载体pKSE401的优化及其应用[D]. 武汉:华中农业大学, 2018.
[46]	Wesley S V, Helliwell C A, Smith N A, et al. Construct design for efficient, effective and high-throughput gene silencing in plants[J]. The Plant Journal, 2001,27(6):581-590. URL pmid: 11576441
[47]	Hirai S, Oka S I, Adachi E, et al. The effects of spacer sequences on silencing efficiency of plant RNAi vectors[J]. Plant Cell Reports, 2007,26(5):651-659. URL pmid: 17205339
[48]	马丽娟, 冯瑜, 江丽萍, 等. pFGC5941的改造及芸薹属透明种皮1基因(TT1)家族RNA干扰载体构建[J]. 农业生物技术学报, 2010,18(6):1189-1196.
[49]	梁鹏, 孔祥翔, 王春涛, 等. pFGC5941的改造及拟南芥NAC1和SIP1双基因反义表达载体的构建和遗传转化[J]. 植物分类与资源学报, 2012(4):403-408.
[50]	苏振琪, 韩莹琰, 李雅博, 等. 叶用莴苣LsHsp70-3701基因过表达载体的构建及遗传转化体系的优化[J]. 中国农业大学学报, 2018,23(1):63-70.

引物名称	引物序列(5’-3’)
F	cgggggactcttgacATGTTGGCTCCAAGTCCATCTG
R	gaaattcgagctggtcaccCTAGACCTCCTCACAAGCACTG
iF	cgggggactcttgacCGCTCGAGTATAAGAGCTCT
iR	gaaattcgagctggtcaccGGATCCAAATACCTGCAAATTG
Sense-F	tacatttacaattaccatggGCAAAGCGACTGGGCTTATTC
Sense-R	tcatcgattgggcgcgccCTAATGTAACATACTGGCTGCC
Antisense-F	tttggatccggtgaccCTAATGTAACATACTGGCTGCC
Antisense-R	attcgagctggtcaccGCAAAGCGACTGGGCTTATTC
Lac Z	GCAGCTTGAGCTTGGATCAG
NOS	GATAATCATCGCAAGACCGG

引物名称	引物序列(5’-3’)
F	cgggggactcttgacATGTTGGCTCCAAGTCCATCTG
R	gaaattcgagctggtcaccCTAGACCTCCTCACAAGCACTG
iF	cgggggactcttgacCGCTCGAGTATAAGAGCTCT
iR	gaaattcgagctggtcaccGGATCCAAATACCTGCAAATTG
Sense-F	tacatttacaattaccatggGCAAAGCGACTGGGCTTATTC
Sense-R	tcatcgattgggcgcgccCTAATGTAACATACTGGCTGCC
Antisense-F	tttggatccggtgaccCTAATGTAACATACTGGCTGCC
Antisense-R	attcgagctggtcaccGCAAAGCGACTGGGCTTATTC
Lac Z	GCAGCTTGAGCTTGGATCAG
NOS	GATAATCATCGCAAGACCGG

培养基编号	NAA/(mg/L)	6-BA/(mg/L)	KT/(mg/L)	活性炭/(g/L)
M1^[14]	0.05	0.1	-	-
M2^[15]	0.1	0.2	-	-
M3^[16]	0.1	0.2	0.2	-
M4^[17]	0.5	10	-	0.2

培养基编号	NAA/(mg/L)	6-BA/(mg/L)	KT/(mg/L)	活性炭/(g/L)
M1^[14]	0.05	0.1	-	-
M2^[15]	0.1	0.2	-	-
M3^[16]	0.1	0.2	0.2	-
M4^[17]	0.5	10	-	0.2

培养基编号	NAA/(mg/L)	IBA/(mg/L)	MS盐/(g/L)	蔗糖/(g/L)	琼脂/(g/L)	活性炭/(g/L)
R1^[18]	-	-	2.2	30	7	-
R2^[14]	0.03	-	2.2	30	7	-
R3^[19,20]	0.5	-	2.2	30	7	0.5
R4^[17]	-	1	4.4	30	7	-
