3种植物提取物对稻瘟病菌的抑菌活性及其抑菌机理研究

doi:10.11924/j.issn.1000-6850.casb2020-0823

摘要/Abstract

摘要：

通过探讨黄连、甘草和肉桂提取物对稻瘟病菌的抑制效果及作用机理,为开发新型稻瘟病菌抑制剂奠定基础。以菌丝生长速率法测定抑菌活性,室内常规分析方法观测菌丝细胞膜通透性、物质合成与代谢和超显微形态。结果表明,3种提取物对稻瘟病菌菌丝生长均具有较强的抑制活性,黄连、甘草、肉桂的半抑菌浓度依次为4.17 mg/mL、4.48 mg/mL和5.22 mg/mL;经3种提取物作用后,稻瘟病菌菌丝的丙二醛含量和外渗电导率升高、丙酮酸和可溶性蛋白含量降低,菌丝出现畸形等生长异常现象。由此可见,3种提取物抑制稻瘟病菌效果突出,可破坏菌丝细胞膜和超显微形态,干扰物质合成与代谢,有望开发为稻瘟病菌抑制剂。

关键词: 水稻病害, 稻瘟病菌, 抑菌活性, 抑菌机理, 植物提取物, 黄连, 甘草, 肉桂

Abstract:

The aims are to explore the inhibitory effect and mechanism of Coptis chinensis, Glycyrrhiza uralensis and Cinnamomum cassia extracts on Pyricularia grisea, and lay a theoretical foundation for developing new inhibitors of Pyricularia grisea. The antifungal activity was determined by the hypha growth rate method. The cell membrane permeability of hyphae, material synthesis and metabolism, and ultra microstructure of hyphal cells were observed by the conventional indoor analysis method. The results showed that the three extracts had strong inhibitory activity on the mycelial growth of Pyricularia grisea. The half fungal inhibitor concentration of Coptis chinensis, Glycyrrhiza uralensis and Cinnamomum cassia were 4.17 mg/mL, 4.48 mg/mL and 5.22 mg/mL, respectively. After treated with the three extracts, malondialdehyde content and conductivity leakage of Pyricularia grisea hypha increased, and the contents of pyruvate and soluble protein decreased, and the hyphae showed morphological changes and other abnormal growth. It can be seen that the three extracts have outstanding inhibitory effect on Pyricularia grisea, and they can destroy the cell membrane and ultramicroscopic morphology and interfere with the synthesis and metabolism of substances, which are expected to be developed as inhibitors of Pyricularia grisea.

Key words: rice disease: Pyricularia grisea, antifungal activity, antifungal mechanism, plant extract, Coptis chinensis, Glycyrrhiza uralensis, Cinnamomum cassia

中图分类号:

S859.84

梁琪, 付歆崴, 李云鹏, 杨胜甫. 3种植物提取物对稻瘟病菌的抑菌活性及其抑菌机理研究[J]. 中国农学通报, 2021, 37(15): 120-127.

Liang Qi, Fu Xinwei, Li Yunpeng, Yang Shengfu. Three Kinds of Plant Extracts Against Pyricularia grisea: Antifungal Activity and Antifungal Mechanism[J]. Chinese Agricultural Science Bulletin, 2021, 37(15): 120-127.

图/表 8

提取物	质量浓度
提取物	3 mg/mL	4 mg/mL	5 mg/mL	10 mg/mL	20 mg/mL
黄连	(39.34±0.01)a	(45.57±0.17)a	(52.23±0.17)a	(93.71±0.28)a	(100±0.00)a
甘草	(34.1±0.48)b	(41.52±0.09)b	(50.32±0.12)b	(68.67±0.0)c	(100±0.00)a
肉桂	(14.16±0.29)c	(24.16±0.23)c	(30.27±0.20)c	(77.3±0.09)b	(100±0.00)a

表1. 3种提取物的5个质量浓度对稻瘟病菌丝生长抑制率 %

病原菌	提取物	毒力回归方程	相关系数(r)	EC₅₀（95%置信限）/(mg/mL)
稻瘟病菌	黄连	y=6.3525x+1.0585	0.9523	4.17(3.10~5.62)
	甘草	y=7.0760x-0.0813	0.8895	4.48(2.83~7.08)
	肉桂	y=6.0358x +1.0710	0.9409	5.22(3.89~7.01)

表2. 3种提取物对稻瘟病菌丝生长的毒力

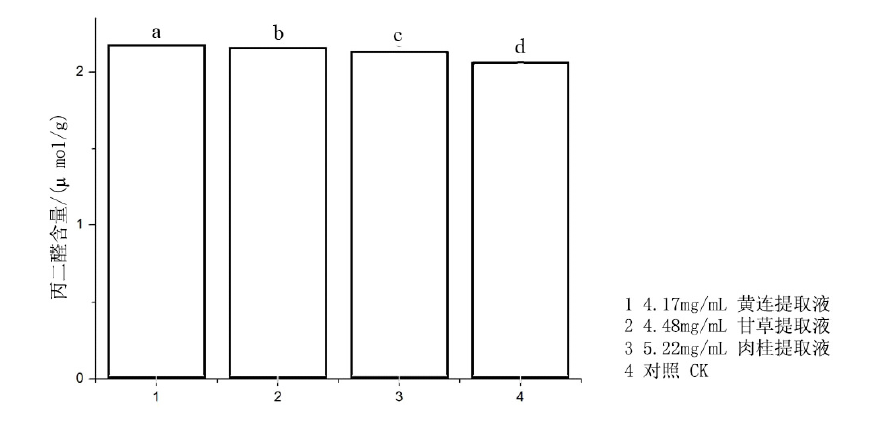

图1. 3种提取物对稻瘟病菌丝体内丙二醛含量的影响数据为3次重复平均值,相同字母表示在5%水平上差异不显著

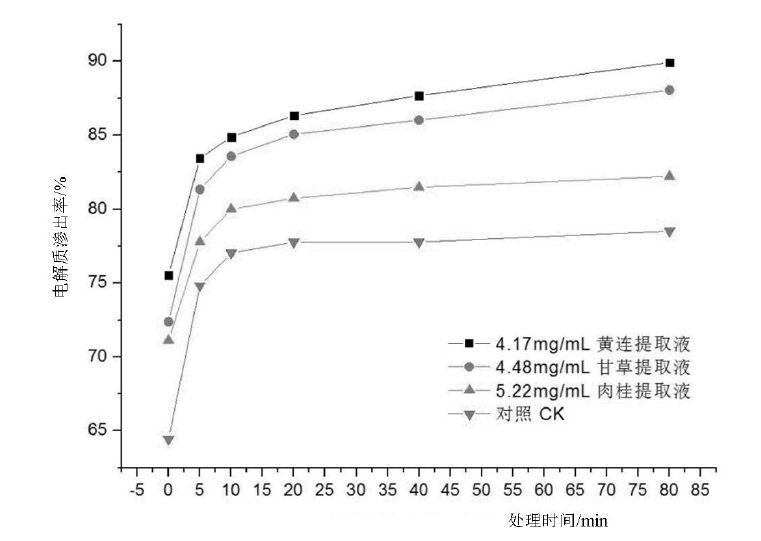

图2. 3种提取物对稻瘟病菌丝细胞膜通透性的影响

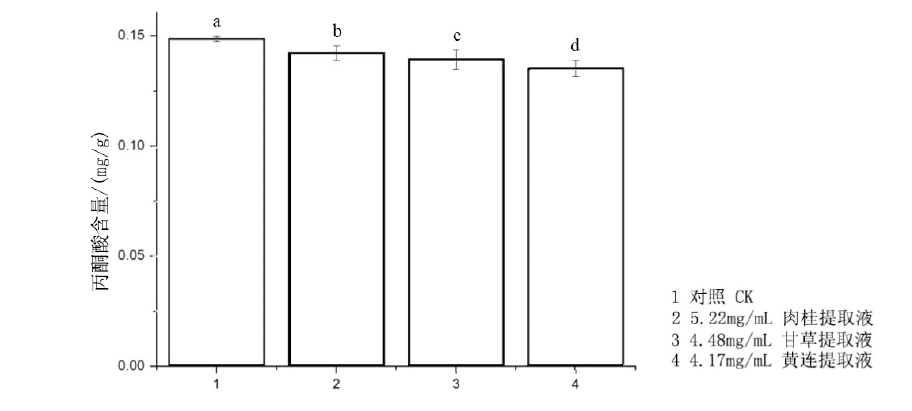

图3. 3种提取物对稻瘟病菌丝体内丙酮酸含量的影响数据为3次重复平均值,相同字母表示在5%水平上差异不显著

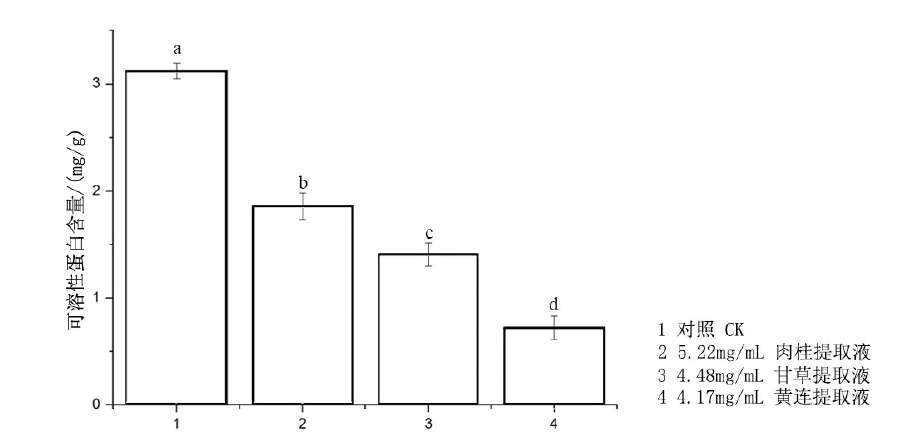

图4. 3种提取物对稻瘟病菌丝体内可溶性蛋白含量的影响数据为3次重复平均值,相同字母表示在5%水平上差异不显著

图5. 3种提取物对稻瘟病菌丝形态的影响（扫描电镜2.00kx） a：对照处理的稻瘟病菌菌丝形态;b：浓度为4.17 mg/mL黄连提取物处理的稻瘟病菌菌丝形态;c：浓度为4.48 mg/mL甘草提取物处理的稻瘟病菌菌丝形态;d：浓度为5.22 mg/mL肉桂提取物处理的稻瘟病菌菌丝形态

图6. 3种提取物对稻瘟病菌丝形态的影响（扫描电镜10.00 kx） a：对照处理的稻瘟病菌菌丝形态;b：浓度为4.17 mg/mL黄连提取物处理的稻瘟病菌菌丝形态;c：浓度为4.48 mg/mL甘草提取物处理的稻瘟病菌菌丝形态;d：浓度为5.22 mg/mL肉桂提取物处理的稻瘟病菌菌丝形态

参考文献 34

[1]	Yasin F D, Kae Y, Gulay D. Septin-mediated plant cell invasion by the rice blast fungus, Magnaporthe oryzae[J]. Science, 2012,336(6088):1590-1595. doi: 10.1126/science.1222934 URL
[2]	刘万才, 刘振东, 黄冲, 等. 近10年农作物主要病虫害发生危害情况的统计和分析[J]. 植物保护, 2016,42(05):1-9,46.
[3]	王亚波, 唐前君. 水稻稻瘟病的发病症状与防治措施研究进展[J]. 湖南农业科学, 2019(2):120-122.
[4]	沙月霞. 生物农药在稻瘟病防治中的应用及前景分析[J]. 植物保护, 2017,43(05):27-34.
[5]	周娟. 生物农药在稻瘟病防治中的作用和前景展望[J]. 江西农业, 2019(14):30.
[6]	刘明津, 汪文娟, 冯爱卿, 等. 稻瘟病综合防控技术研究进展[J]. 西北农业学报, 2020,29(9):1285-1294.
[7]	张逍遥, 郭超, 刘艳丽, 等. 生物农药多杀菌素及其结构类似物的研究进展[J]. 粮油食品科技, 2020,28(6):209-217.
[8]	沙月霞. 生物农药在稻瘟病防治中的应用及前景分析[J]. 植物保护, 2017,43(05):27-34.
[9]	Wang L Y, How W C, Shen T A, et al. Chemical composition, antioxidant and bioactivities of essential oils from Melaleuca bracteata leaves[J]. Plant Protection Science, 2020,56(1).
[10]	Rout S, Thatoi H, Tewari S. Performance of aqueous extract of Aegle marmelos based Amaext- a, an antifungal product against Pyricularia grisea causing blast disease of rice[J]. Archives of Phytopathology and plant Protection, 2012,45(20):2507-2518. doi: 10.1080/03235408.2012.731336 URL
[11]	Rout S, Thatoi H, Tewari S. Sensitivity of ethanolic extract of Aegle marmelos- based Amasof-e, an organic antifungal product, against Pyricularia grisea that causes blast disease of rice[J]. Archives of Phytopathology and plant Protection, 2015,48(1):73-83. doi: 10.1080/03235408.2014.882124 URL
[12]	王云峰, 李春琴, 韩光煜, 等. 茉莉酸不同方式处理水稻对稻瘟病的防控效果及对水稻防御体系的影响[J]. 南方农业学报, 2019,50(3):562-569.
[13]	彭玉萌, 霍光华, 谭明辉, 等. 无患子抗稻瘟病病菌活性皂苷的分离与鉴定[J]. 江苏农业科学, 2019,47(10):127-130.
[14]	张庆莲, 黄娟, 邵单炫, 等. 黄连抗菌作用研究进展[J]. 中医药信息, 2019,36(5):125-127.
[15]	刘安奇, 张东向, 付丽, 等. 甘草保健饮料的研究与开发[J]. 现代食品, 2020,( 22):24-27.
[16]	张笮晦, 童永清, 黄广智, 等. 肉桂叶化学成分及药理作用研究进展[J]. 广州化工, 2019,47(1):20-22.
[17]	李云鹏, 周宝利, 李之璞, 等. 野生抗病茄植株腐解物对茄子黄萎病的调控研究[J]. 植物保护, 2007(03):50-52.
[18]	Lapenna D, Ciofani G, Pierdomenico S D, et al. Reaction conditions affecting the relationship between thiobarbituric acid reactivity and lipid peroxidesin human plasma[J]. Free Radical Biology and Medicine, 2001,31(3):331-335. pmid: 11461770
[19]	Yemets O, Gauslaa Y, Solhaug K A. Monitoring with lichens-Conductivity methods assess salt and heavy metal damage more efficiently than chlorophyll fluorescence[J]. Ecological Indicators, 2015,55:59-64. doi: 10.1016/j.ecolind.2015.03.015 URL
[20]	Wang Y, Xue G, Zhao B. Screening of Lincomycin-Degrading Bacteria by Silica Gel Plate and Visible Spectrophotometry[J]. Advanced Materials Research, 2011,1154:1153-1157.
[21]	Serra S, Morgante L. Method of determination of proteins with Coomassie brilliant blue G 250. I. General characteristics and comparative analysis with the biuret method and Lowry's method[J]. Bollettino della Societa italiana di biologia sperimentale, 1980,56(2):160-165. pmid: 6159906
[22]	潘潇涵, 常瑞雪, 慕康国, 等. 哈茨木霉VT9-3r和枯草芽孢杆菌VT4-1x对3株马铃薯致病菌的抑制作用效果[J]. 中国农业大学学报, 2020,25(04):72-81.
[23]	邹志荣, 陆帼一. 低温对辣椒幼苗膜脂过氧化和保护酶系统变化的影响[J]. 西北农业学报, 1994(03):51-56.
[24]	Anthony E, Patrick F, Sébastien D, et al. Tangential electrokinetic characterization of hollow fiber membranes: Effects of external solution on cell electric conductance and streaming current[J]. Journal of Membrane Science, 2015,496:293-300. doi: 10.1016/j.memsci.2015.09.002 URL
[25]	Gallina P M, Cabassi G M, Alessandro N, et al. Changes in the pyruvic acid content correlates with phenotype traits in onion clones[J]. Australian Journal of Crop Science, 2012,6(1):34-40.
[26]	Lu M, Zhao J, Feng L D, et al. Study on the Effects of Domestic Sewage on Soluble Protein Content of Parts Constructed Wetland Plants[J]. Applied Mechanics and Materials, 2014,3013:741-744.
[27]	张翠荣, 李明, 李荣玉. 5种植物粗提物对稻瘟病菌的抑菌活性[J]. 江苏农业科学, 2016,44(8):162-164.
[28]	沈恬安, 杨德友, 骆焱平, 等. 单叶蔓荆子提取物的抑菌活性[J]. 热带生物学报, 2019,10(3):222-225.
[29]	汪金莲, 邱业先, 扶教龙, 等. 茶多酚对稻瘟病的抑制作用及抑菌机理[J]. 天然产物研究与开发, 2011,23:918-922.
[30]	杜贝贝, 谢树莲, 王梦亮, 等. 海带石油醚相活性物质对番茄溃疡病菌的抑菌机理[J]. 中国农学通报, 2020,36(33):127-133.
[31]	郅晓燕, 李睿, 杨春, 等. 地肤子提取物对苹果树腐烂病菌的抑制作用及对其菌体结构和功能的影响[J]. 植物保护学报, 2019,46(02):362-368.
[32]	姚姗姗, 刘静茹, 陈静, 等. 基于网络药理学探究中药黄连抗菌作用机制[J]. 中国畜牧兽医, 2020,47(05):1593-1601.
[33]	Haraguchi H, Tanimoto K, Tamura Y, et al. Mode of antibacterial action of retrochalcones from Glycyrrhiza inflata[J]. Phytochemistry, 1998,48(1):125-129. pmid: 9621457
[34]	何靖柳, 张清, 陈洪, 等. 肉桂精油对植物病原菌抑制作用的研究进展[J]. 分子植物育种, 2017,15(09):3723-3730.
